Brother DCP130C - Page 166

6-33 Confidential
(2) Disconnect the following harnesses and flat cables from the main PCB.
CAUTION: Do not remove the screws from the main PCB before disconnecting harnesses and
flat cables.
- Purge cam switch harness (2-wire)
- Ink cartridge sensor harness (9-wire)
- Power supply harness (4-wire)
- PF encoder/registration sensor harness (7-wire)
- Paper feed motor harness (2-wire)
- Carriage motor harness (2-wire)
- Head flat cable 1 (14-wire)
- Head flat cable 2 (13-wire)
- Head flat cable 3 (12-wire)

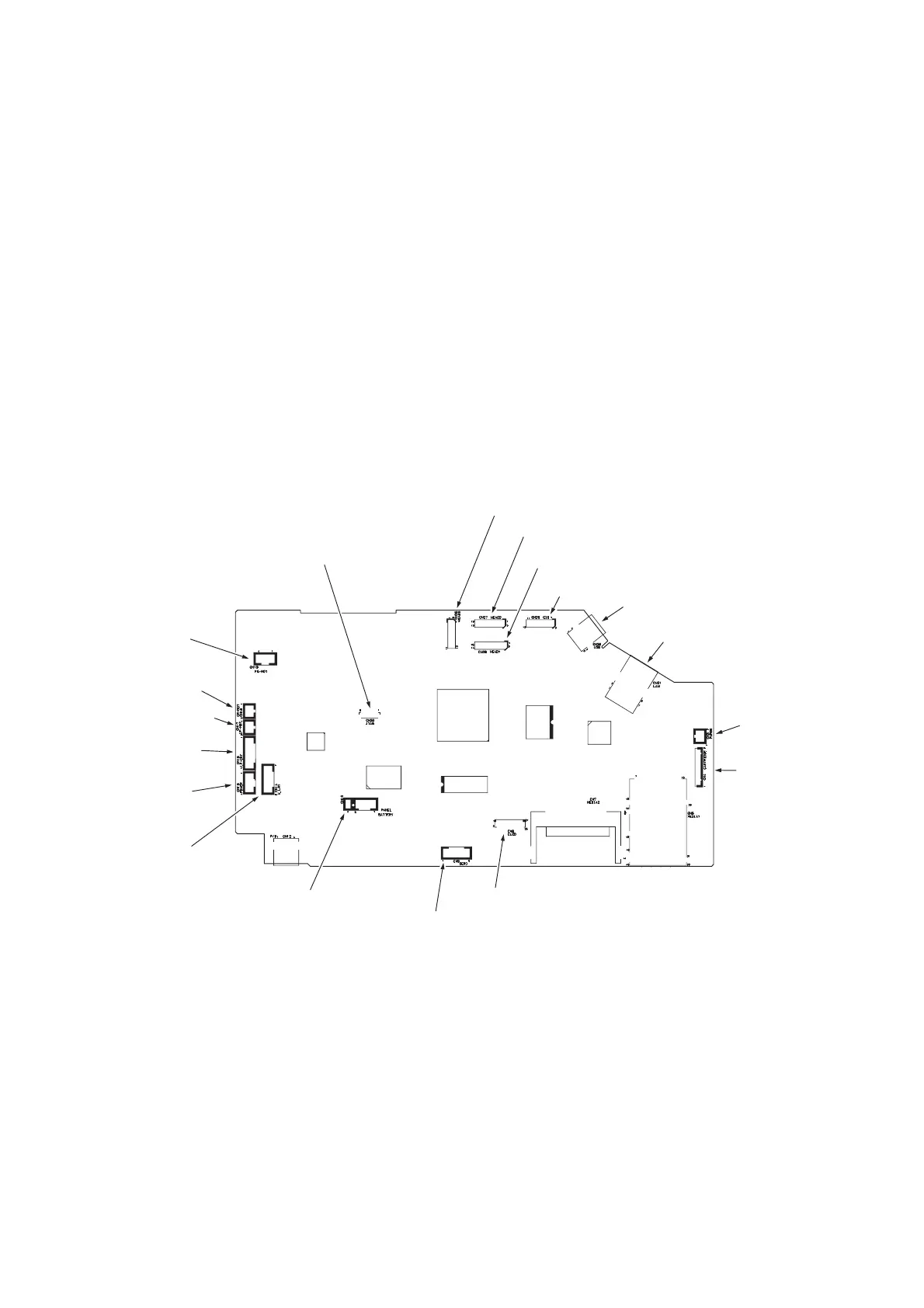

 DCP750CW
Main PCB
Power supply harness
(4-wire)
Carriage motor harness
(2-wire)
Paper feed motor harness
(2-wire)
PF encoder/registration
sensor harness
(7-wire)
(Panel-main harness)
(5-wire)
For debugging at the factory.
Do not disturb it.
(LCD flat cable)
(18-wire)
Ink cartridge senso
r
harness
(9-wire)
Purge cam switch
harness
(2-wire)
(LAN interface)
(CIS flat cable)
(12-wire)
Head flat cable 1
(14-wire)
Head flat cable 2
(13-wire)
Head flat cable 3
(12-wire)
(CIS motor harness)
(4-wire)
(USB interface)
For debugging at the factory.
Do not disturb it.
(WLAN PCB harness)
(6-wire)
(6_34_1)
