6-34 Confidential

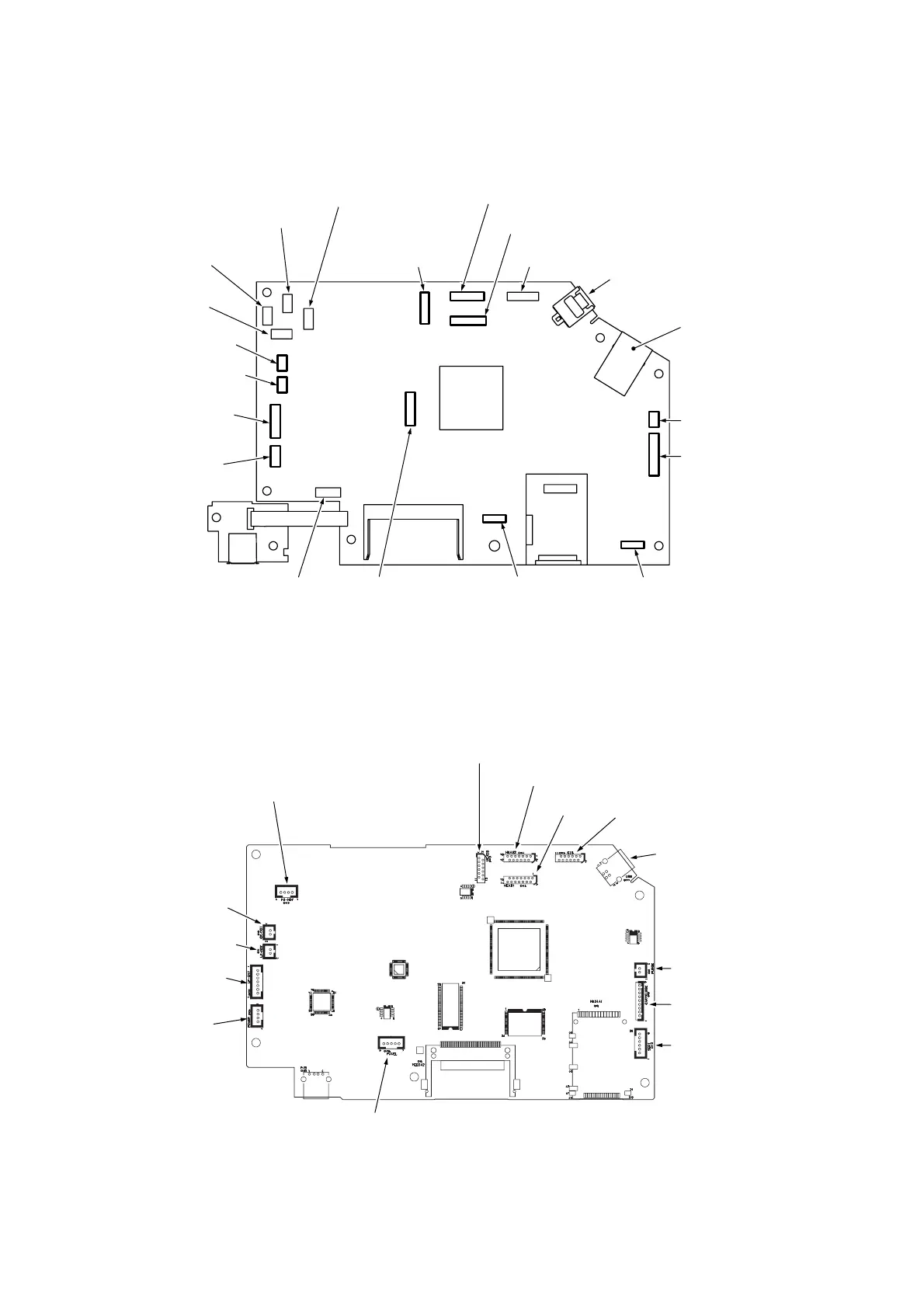

 DCP540CN/330C
(6_34)
Main PCB
Power supply harness
(4-wire)
Carriage motor harness
(2-wire)
CN15
CN16
CN14
CN10
CN8 CN7
CN19
CN21 CN22
CN17
CN4
CN3
CN12
CN23
CN2
CN24
Paper feed motor harness
(2-wire)
PF encoder/registration
sensor harness
(7-wire)
(Panel-main harness)
(5-wire)
For debugging at the factory.
Do not disturb it.
(LCD flat cable)
(18-wire)
Ink cartridge sensor harness
(9-wire)
Purge cam switch harness
(2-wire)
(LAN interface)*2
(CIS flat cable)
(12-wire)
Head flat cable 1
(14-wire)
Head flat cable 2
(13-wire)
Head flat cable 3
(12-wire)
(ADF motor harness)*1
(4-wire)
(Document front sensor harness)*1
(3-wire)
(Document rear sensor harness)*1
(3-wire)
(CIS motor harness)
(4-wire)
CN18
CN13
(USB interface)
For debugging at the factory.
Do not disturb it.
*
1 For models with ADF
*
2 For wired LAN-enabled models
 DCP130C
(6_35)
Main PCB
Head flat cable 3
(12-wire)
(CIS motor harness)
(4-wire)
Carriage motor harness
(2-wire)
Paper feed motor harness
(2-wire)
PF encoder/registration
sensor harness
(7-wire)
Power supply harness
(4-wire)
(Panel-main harness)
(5-wire)
Ink cartridge sensor harness
(9-wire)
Purge cam switch harness
(2-wire)
(CIS flat cable)
(12-wire)
Head flat cable 1
(14-wire)
Head flat cable 2
(13-wire)
(USB interface)
For debugging at the factory.
Do not disturb it.
