6-72 Confidential

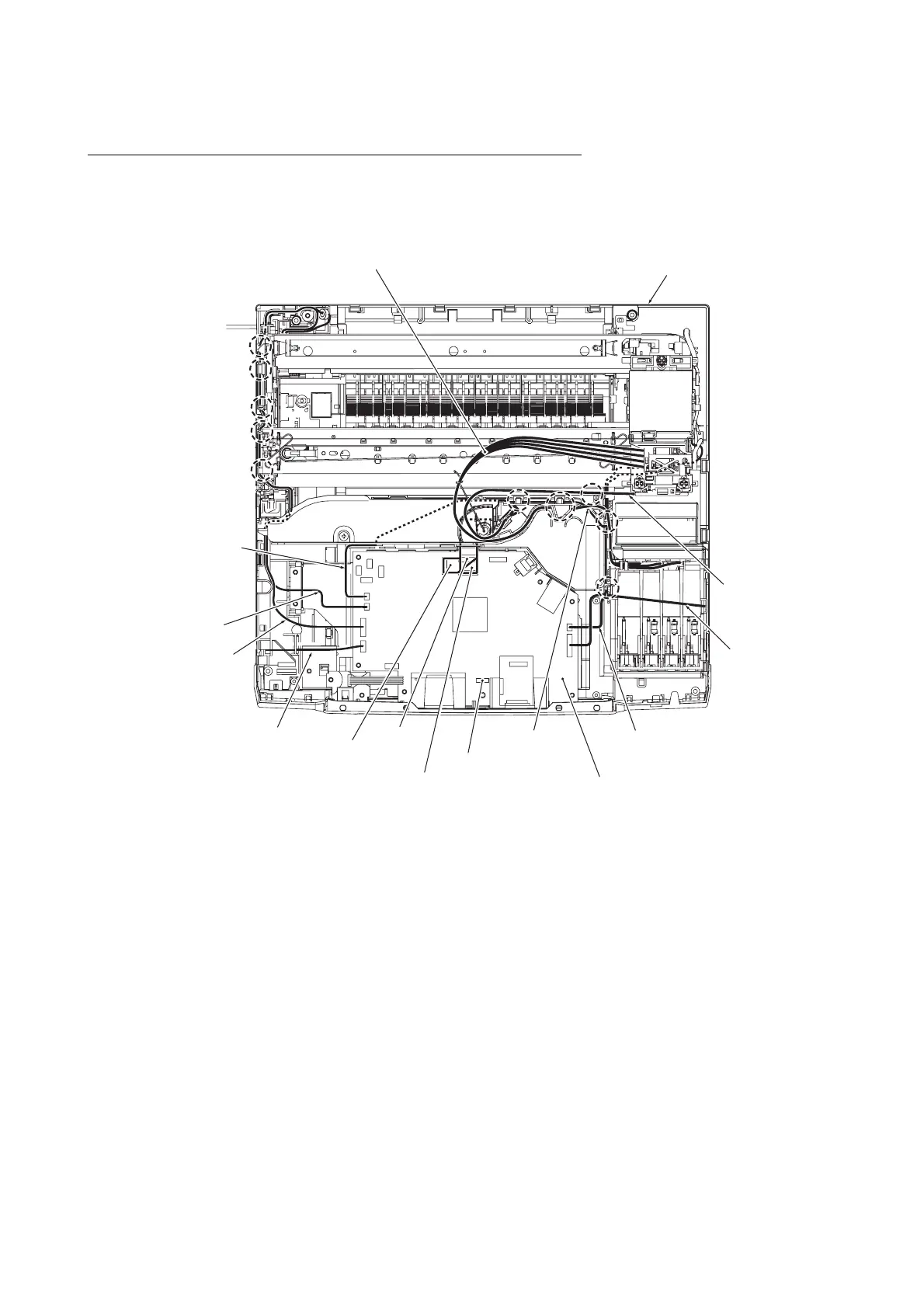

Routing I: Harnesses, flat cables and ink supply tubes on the lower cover
Top view
Head flat
cable 2
(6_71)
Carriage motor
harness
Paper feed motor
harness
PF encoder/registration
sensor harness
Power supply harness
Head flat
cable 3
Head flat
cable 1
Head flat
cables
(Connector
for LCD
flat cable*)
(Main PCB)
Purge cam switch
harness
Ink supply tubes
Ink cartridge
sensor harness
(Lower cover)
Carriage
motor
harness
*For models with color LCD
