6-73 Confidential

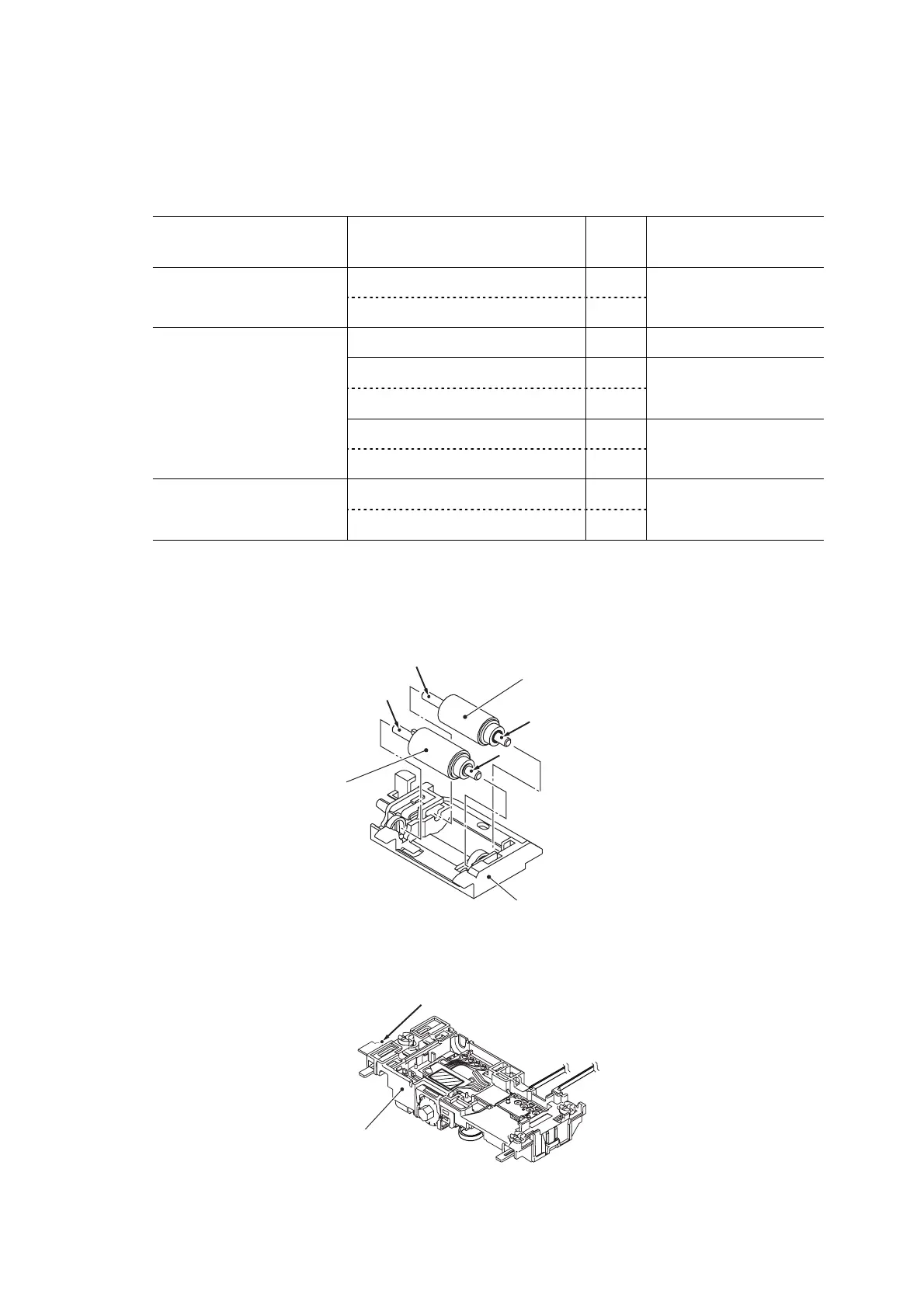

6.2 LUBRICATION
Apply the specified lubricants to the lubrication points as shown below.
Lubricant type
(Manufacturer)
Lubrication points
No. of
points
Lubricant amount
per point
Document pull-in roller* 1
Molykote EM-30LG
(Dow Corning)
Document separation roller* 1
4 mm diameter ball
Head/carriage unit 1 1.5 mm diameter ball
CR guide rail 13
CR support chassis 13
1.5 mm diameter ball
Mode switching lever 1
Molykote EM-60L
(Dow Corning)
Clutch gear shaft 2
2 mm diameter ball
SF changeover gear 1 Silicone G-501
(Shin-Etsu Chemical)
Purge gear shaft 1
3 mm diameter ball
*For models with ADF
 Document pull-in roller and document separation roller in the document roller holder (For
models with ADF)
Apply a 4 mm diameter ball of grease (Molykote EM-30LG) to each of the lubrication points
below.
(6_72)
Document pull-in roller
Document
separation roller
Document roller holder
Apply grease here.
Apply grease here.
 Head/carriage unit
Apply a 1.5 mm diameter ball of grease (Molykote EM-60L) to the lubrication point below.
Head/carriage unit
Apply grease here.
(6_73)
