Brother HL-5450DN Technical Reference Guide

CHAPTER 2 PCL - 80
6. USING GRAPHICS
This HL Series printer affords the user considerable flexibility in the creation of graphic images. Vector, raster
and rectangle graphics are available, all of which allow a range of shading and filling options. The HP-GL/2
graphics commands that are supported are described in the HP-GL/2 section of this manual.
6.1. Source, Pattern and Destination
We refer to a printing model in which a source image (the image to be drawn) is applied to a destination image
(simply the graphics or text that already exist on the page). The source image consists of white space and non-
white areas. The non-white areas are covered by a pattern of some description. The pattern may simply be solid
black or it may itself consist of white and non-white areas, for example the pattern may consist of vertical
spaced lines. You can specify the way in which the white and dark areas of the entire source image and the
white and dark areas of the pattern interact with the destination image to produce the finished effect.
For example
6.1.1. Set source transparency
Esc*v#N (27)(42)(118)#(78) <1Bh><2Ah><76h>#<4Eh>

This command sets the source image transparency.
 # is either 0 or 1. Set # to 0 to select transparent mode and to 1 to specify opaque mode.
 Transparent mode means that parts of the destination image will be visible through the white space areas of
the source image when the source image has been printed on top of the destination image.
 Opaque mode means that parts of the destination image will not be visible through the white space areas of
the source image when the source image has been printed on top of the destination image.

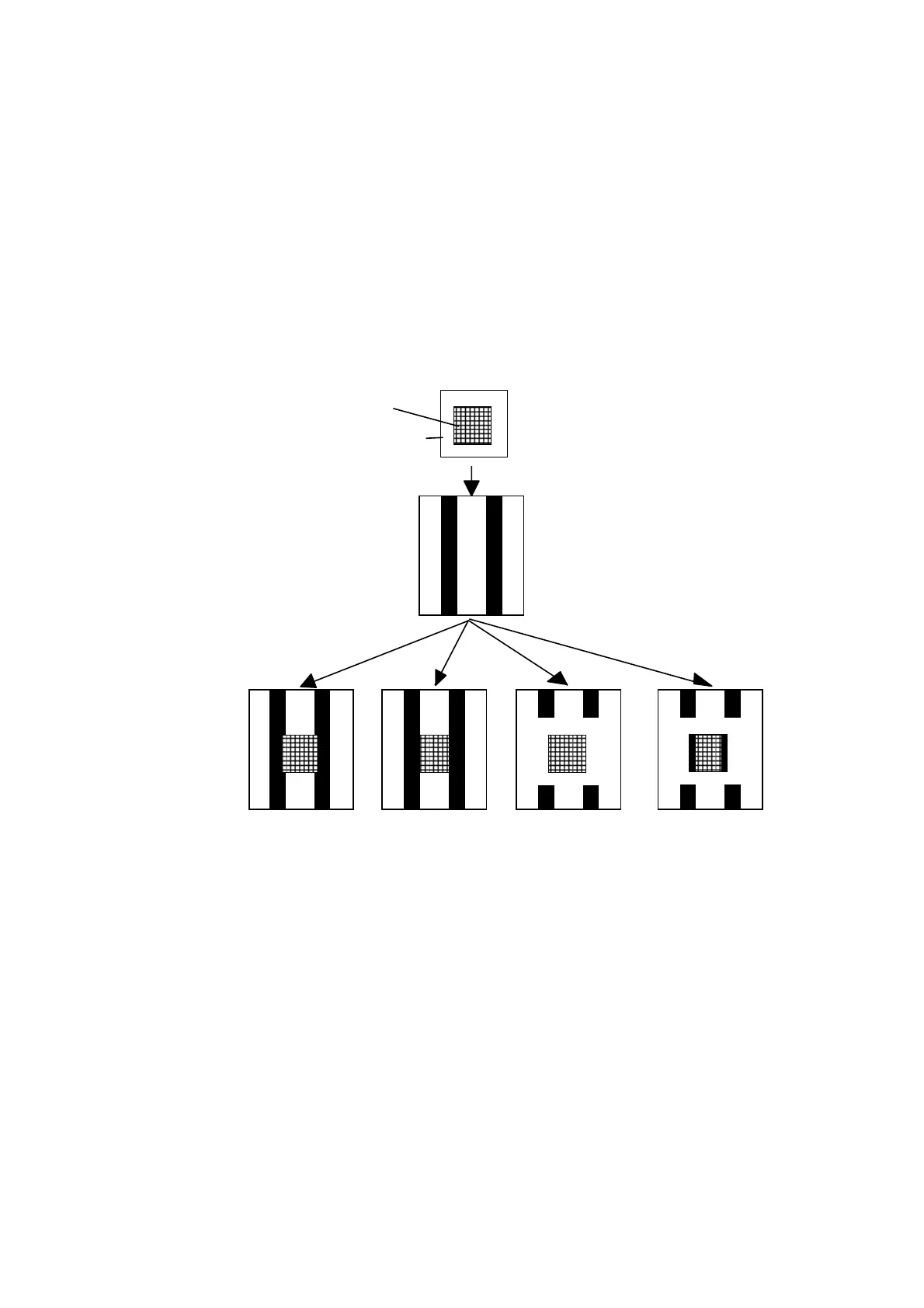

Pattern
Source ima
g
e
Destination ima
g
e
Possible results

Brother HL-5450DN Specifications

General

Color	No
N-up printing	2, 4, 9, 16, 25
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
Maximum duty cycle	- pages per month
Recommended duty cycle	1000 - 3500 pages per month
Number of print cartridges	1
Memory type	DDR2
Processor family	Star Sapphire
Maximum internal memory	320 MB
Sound power level (standby)	34 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Multi-Purpose tray input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Plain paper, Recycled paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Multi-purpose tray media types	Bond paper, Envelopes, Heavyweight paper, Labels, Plain paper, Recycled paper
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.41 W
Power consumption (standby)	4.7 W
Power consumption (printing)	665 W
Power consumption (PowerSave)	0.6 W
Package weight	11.900 g
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 245 mm
