9.35 MP Paper Empty Actuator A ASSY/
MP Paper Empty Actuator B

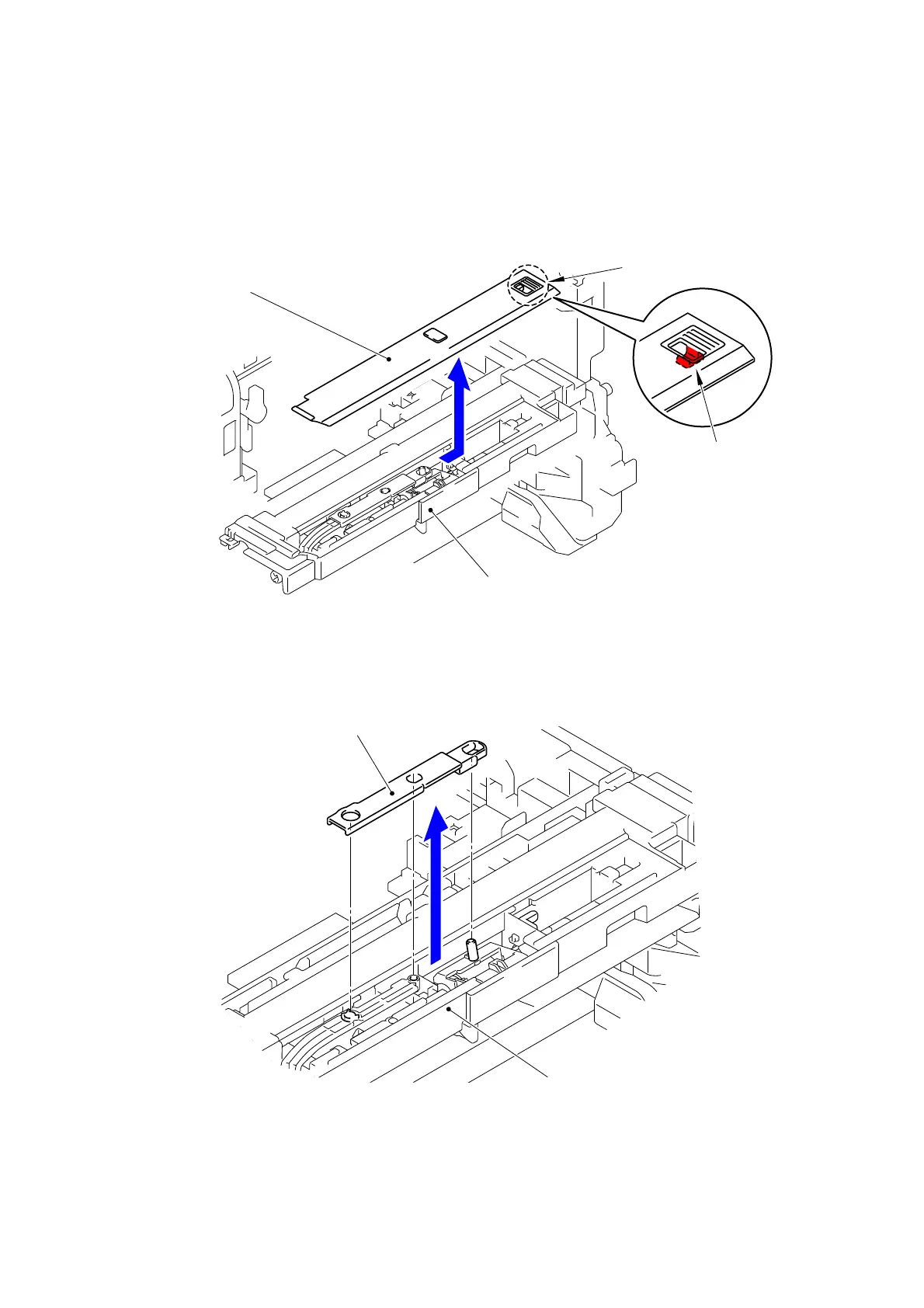

(1) Press “A” to release the Hook and remove the MP upper frame cover from the MP upper
cover ASSY.
Fig. 3-117
(2) Remove the MP lift arm B from the MP upper cover ASSY.
Fig. 3-118
MP upper frame cover
Hook
“A”
MP upper cover ASSY
<Front side>
MP upper cover ASSY
MP lift arm B
<Front side>
