3-2

Confidential

2. PACKING

 Machine

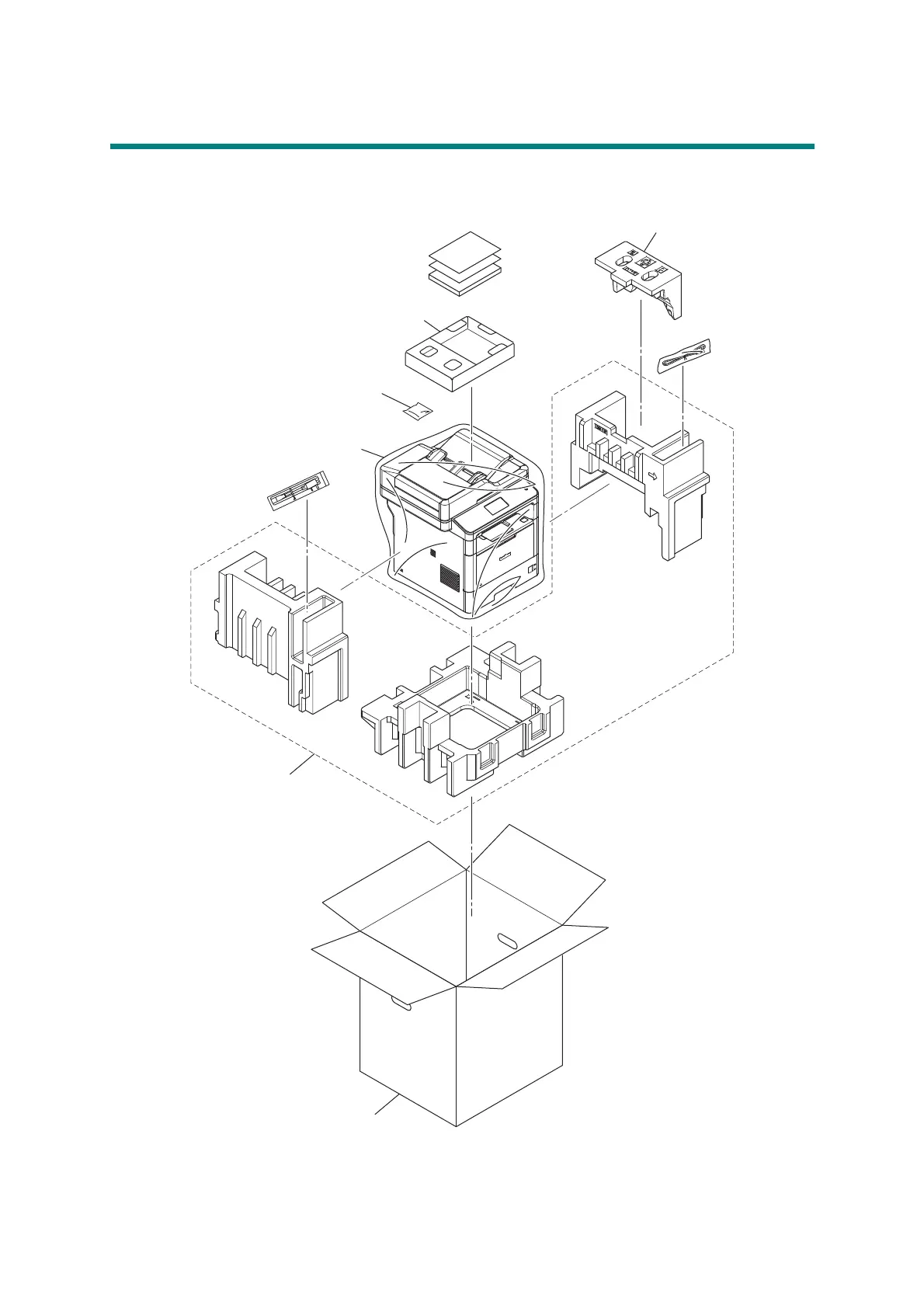

Fig. 3-1

Toner pad

Option carton

Silica gel

PE bag

Polystylene pad ASSY

Carton
