10.10 LT paper feed sensor PCB ASSY

(1) Remove the two taptite cup S M3x8 SR screws (1a) (1b),and remove the center FG

plate R from the LT frame R unit.

(2) Remove the five taptite cup S M3x8 SR screws, and remove the paper feed frame FG

plate R and LT paper feed frame from the LT frame R unit.

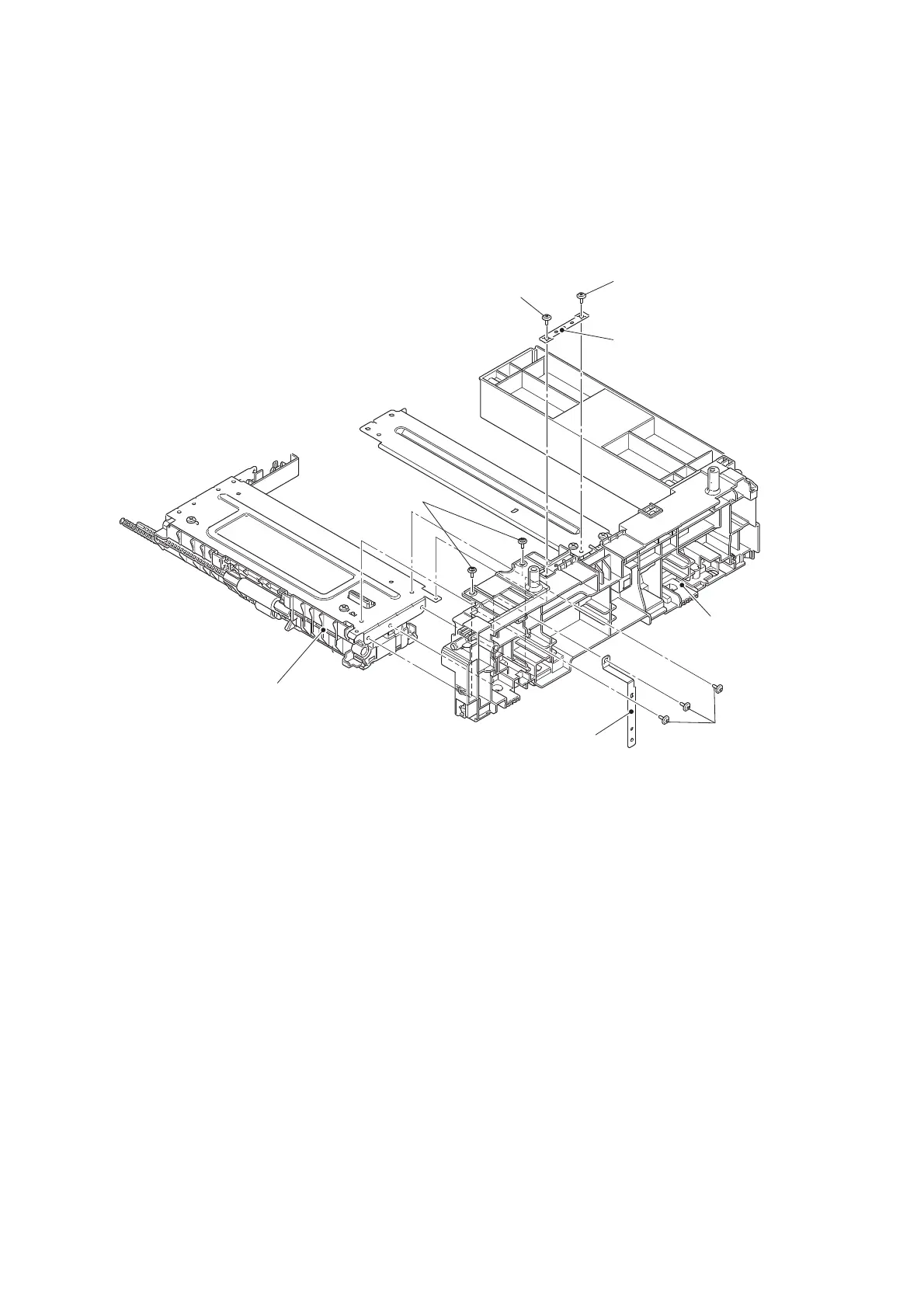

Fig. 3-136

LT paper feed frame

Paper feed frame FG plate R

Center FG plate R

Taptite cup S M3x8 SR (1b)

Taptite cup S

M3×8 SR

Taptite cup S M3×8 SR

Taptite cup S M3x8 SR (1a)

LT frame R unit
