3-125

Confidential

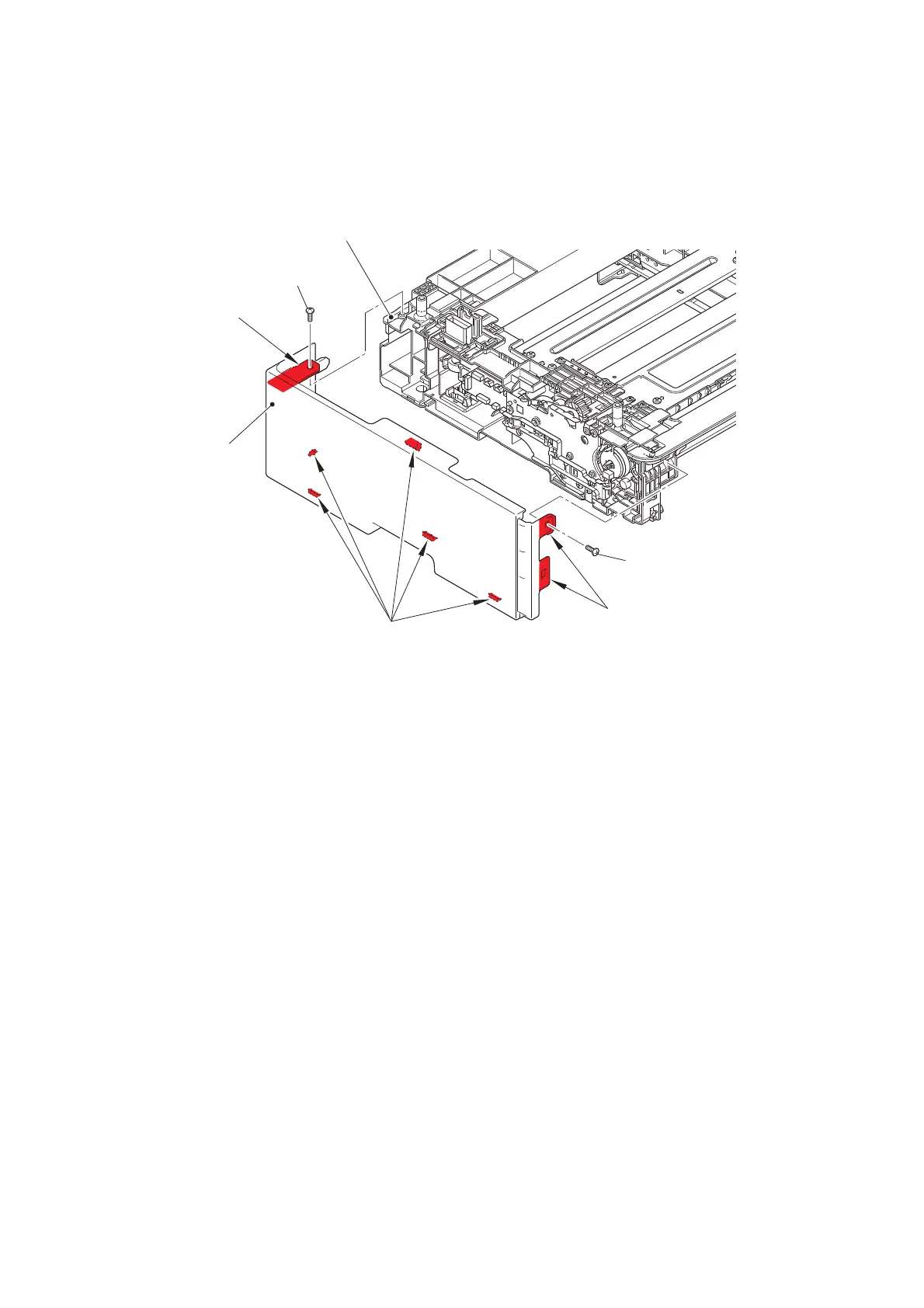

10.3 LT side cover L

(1) Remove the two taptite bind B M4x12 screws. Release each hook, and remove the LT

side cover L from the LT unit.

Fig. 3-126

LT unit

LT side cover L

Hook

Hooks

Taptite bind B M4x12

Hooks

Taptite bind B M4x12
