7-7

Confidential

2.3 Laser unit

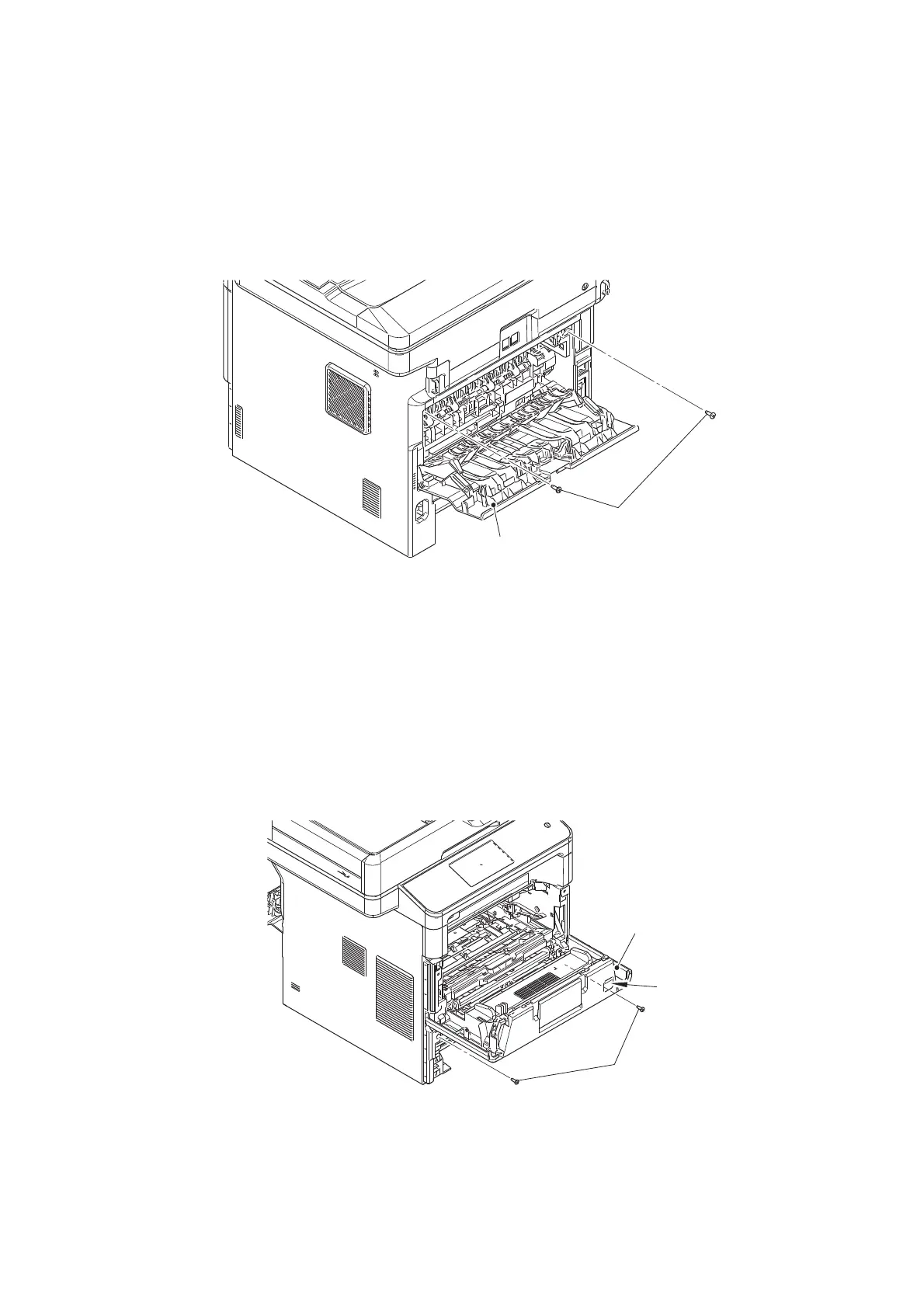

(1) Open the back cover.

(2) Remove the two taptite bind B M4x12 screws.

Fig. 7-9

(3) Remove the two taptite bind B M4x12 screws.

(4) Push the front cover release button, and open the front cover.

Fig. 7-10

Back cover

Taptite bind B M4x12

Front cover ASSY

Taptite bind B M4x12

Front cover

release button
