2.2 Paper Feeding

2.2.1 Printer part

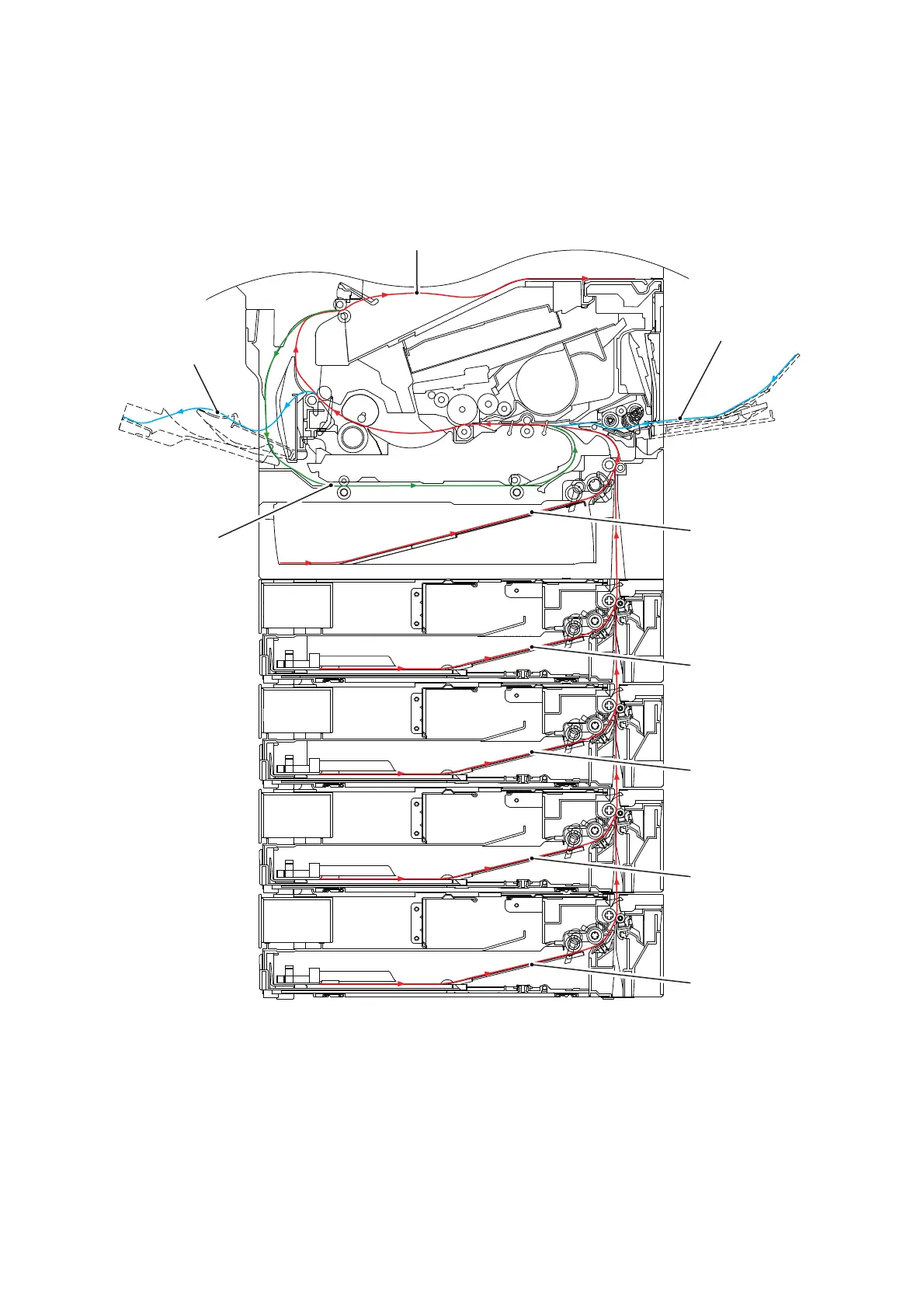

Fig. 2-4

Eject to back side

Duplex path

Paper tray 1 path

Paper tray 2 path

Paper tray 3 path

Paper tray 4 path

Paper tray 5 path

Feed from MP tray

Eject to output tray
