3-127

Confidential

10.5 LT front cover ASSY

(1) Remove the taptite cup S M3x8 SR screw. Release the two hooks, and remove the LT

front cover ASSY from the LT unit.

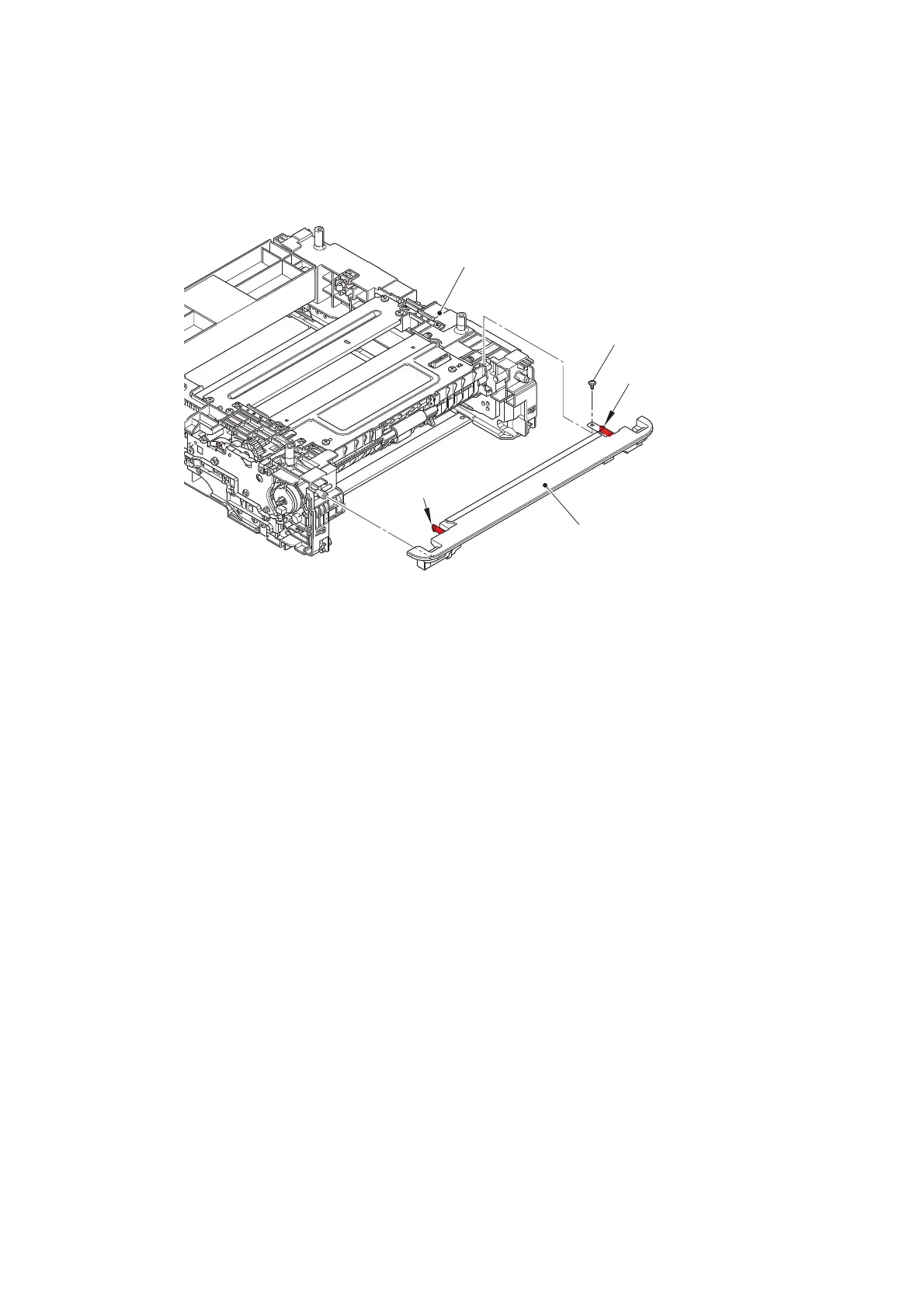

Fig. 3-128

LT unit

Taptite cup S M3x8 SR

Hook

LT front cover ASSY

Hook

Default Chapter1
