Brother MFC-8540DN Service Manual

3-13
Confidential
3

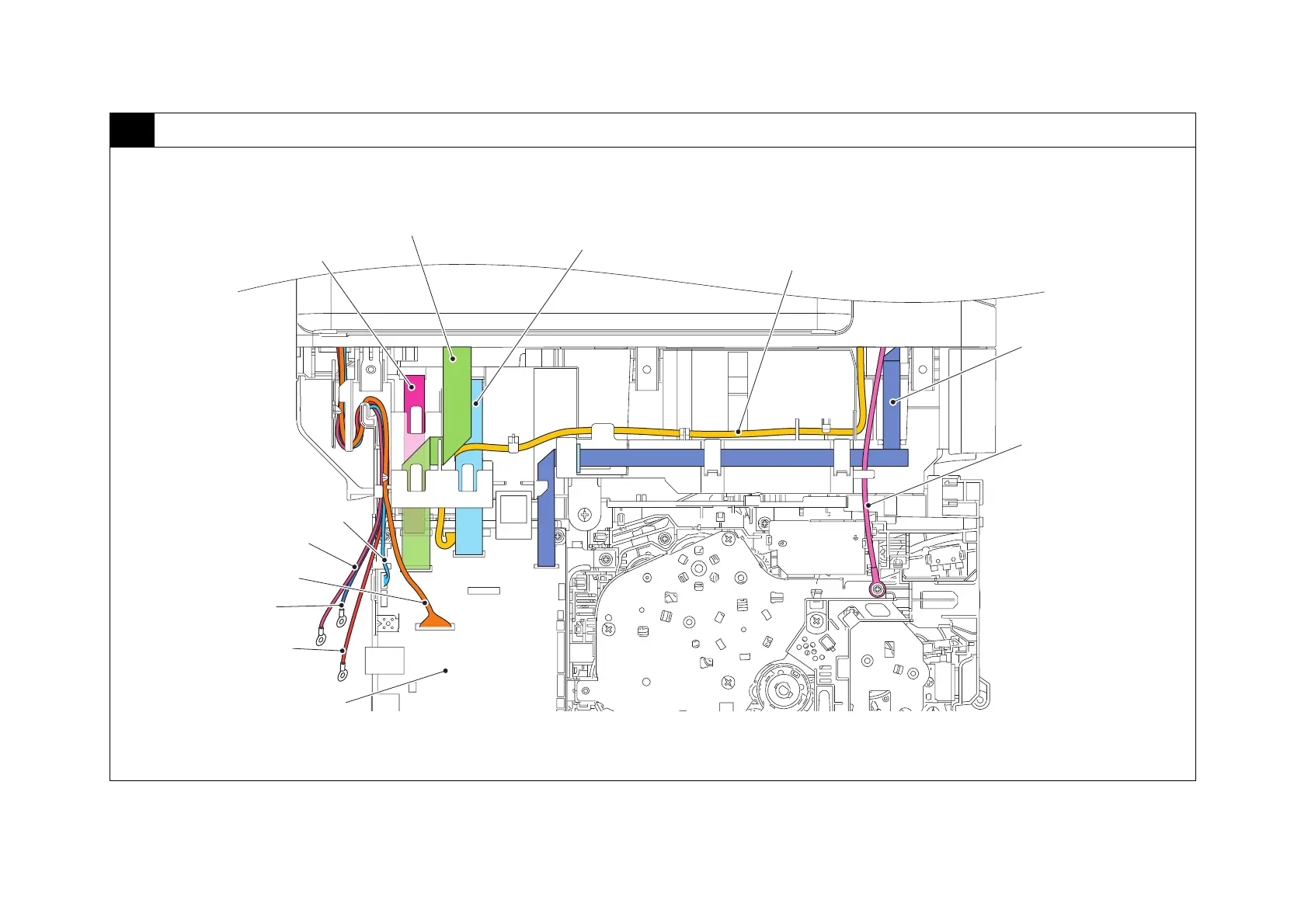

Left side of the machine
Harness colors are subject to change for some reason.
First side CIS flat cable
Modem flat cable
USB host harness (GY)
Panel FG harness (WH)
FB motor harness (YW)
ADF sensor harness
(Black tape winding)
Main PCB ASSY
Panel flat cable
Second side CIS flat cable
(Duplex scanning models only)
ADF FG harness (RD or OR)
FB FG harness (YW)
Modem FG harness L
(BK)
