3-17

Confidential

7

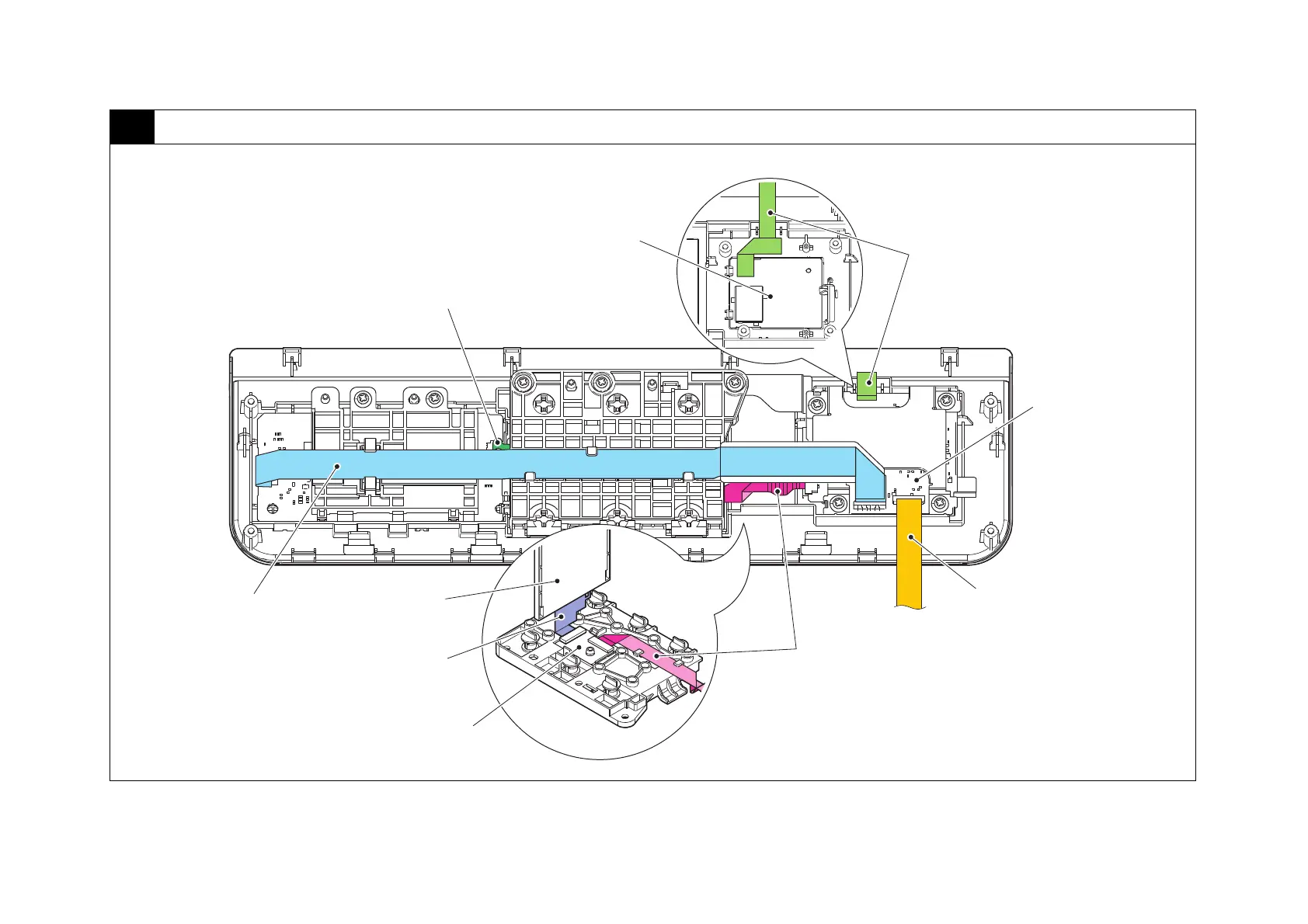

Panel unit (3.7 inch model)

Harness colors are subject to change for some reason.

Key PCB flat cable

Panel PCB ASSY

Panel flat cable

LCD relay flat cable

Touch panel flat cable

NFC flat cable

(Models with NFC only)

NFC PCB ASSY

(Models with NFC only)

LCD relay PCB ASSY

LCD flat cable

LCD
