3-59

Confidential

(4) Disconnect the NFC flat cable from the panel PCB ASSY. (Models with NFC only)

(5) Release the lock, and disconnect the LCD flat cable from the panel PCB ASSY.

(6) Release the panel PCB ASSY and LCD from the panel unit.

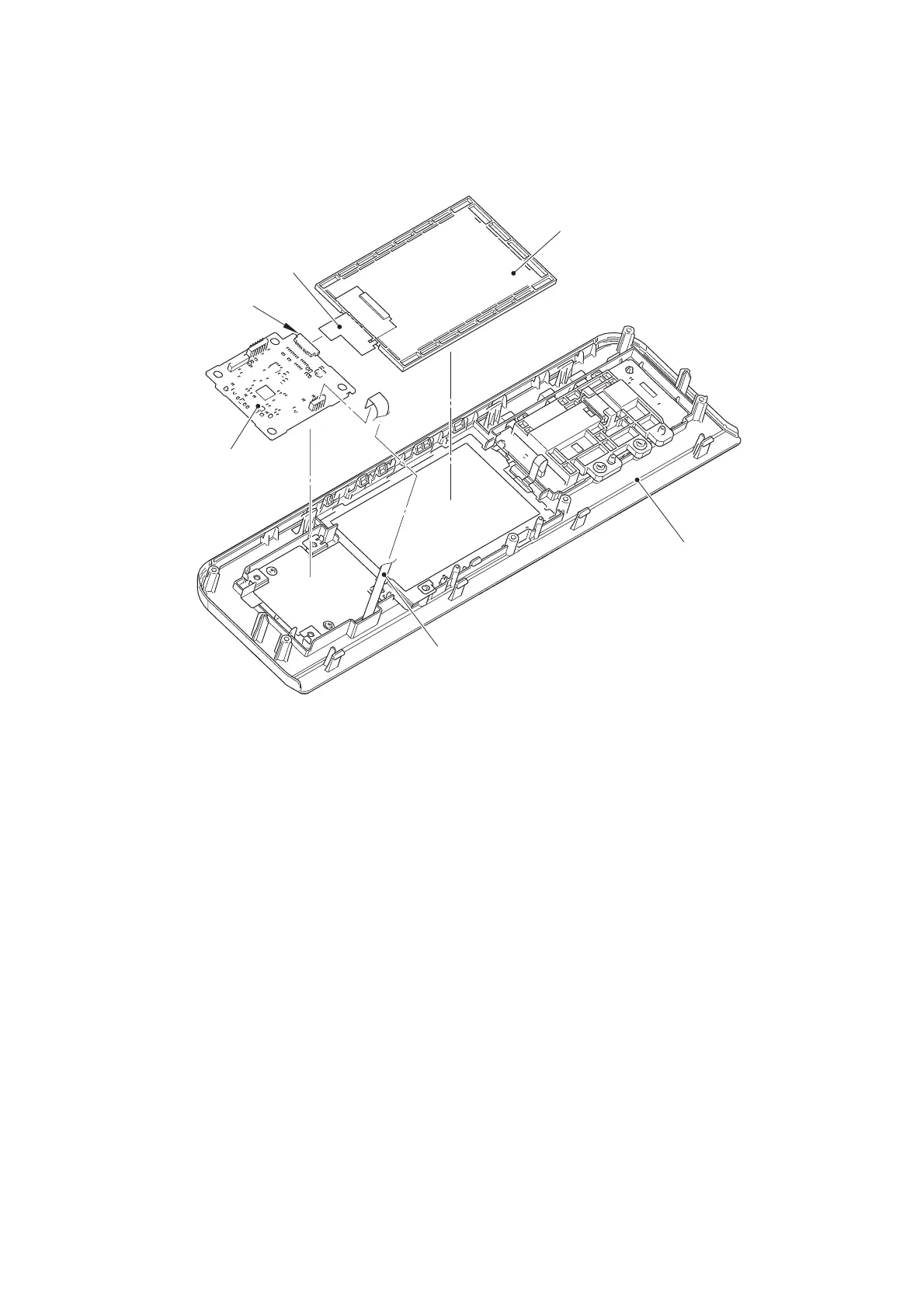

Fig. 3-53

LCD

Panel unit

NFC flat cable

(Models with NFC only)

LCD flat cable

Panel PCB ASSY

Lock
