(4) Slide the CIS carriage slowly to the position described below.

(5) Raise the first side CIS unit from the CIS carriage for 90 degrees. Slide the first side CIS

unit in the direction of the arrow and release the boss to remove it. Disconnect the first

side CIS flat cable from the first side CIS unit.

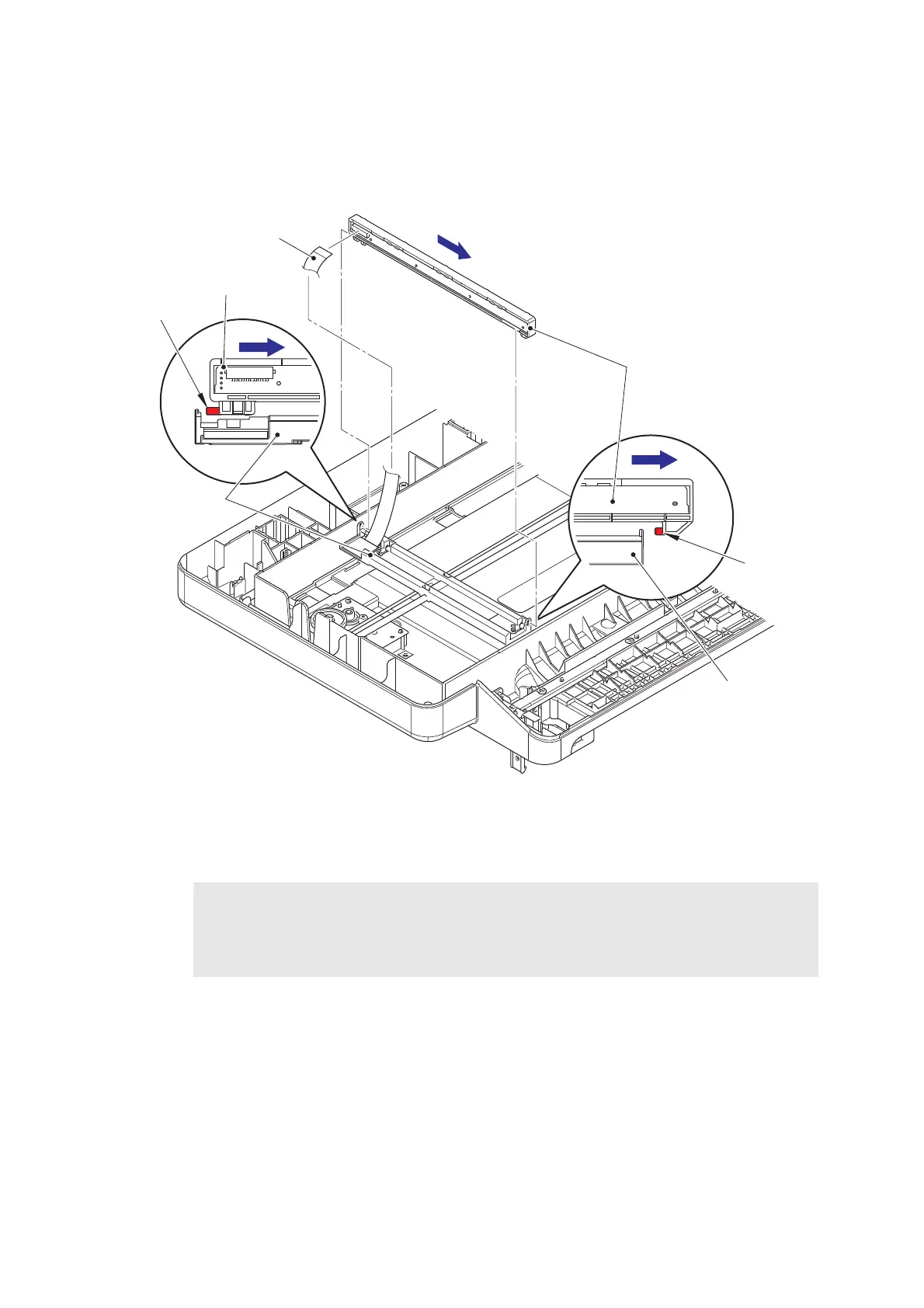

Fig. 3-62

Harness routing: Refer to “5. Document scanner unit”.

Assembling Note:

• If you replaced the first side CIS unit, refer to “5. IF YOU REPLACE THE ADF UNIT,

FIRST SIDE CIS UNIT, SECOND SIDE CIS UNIT OR DOCUMENT SCANNER UNIT”

in chapter 4 and configure the setting.

First side CIS unit

Boss

CIS carriage

First side CIS flat cable
