Brother MFC-8540DN Service Manual

3-69
Confidential
< Attachment Procedure >

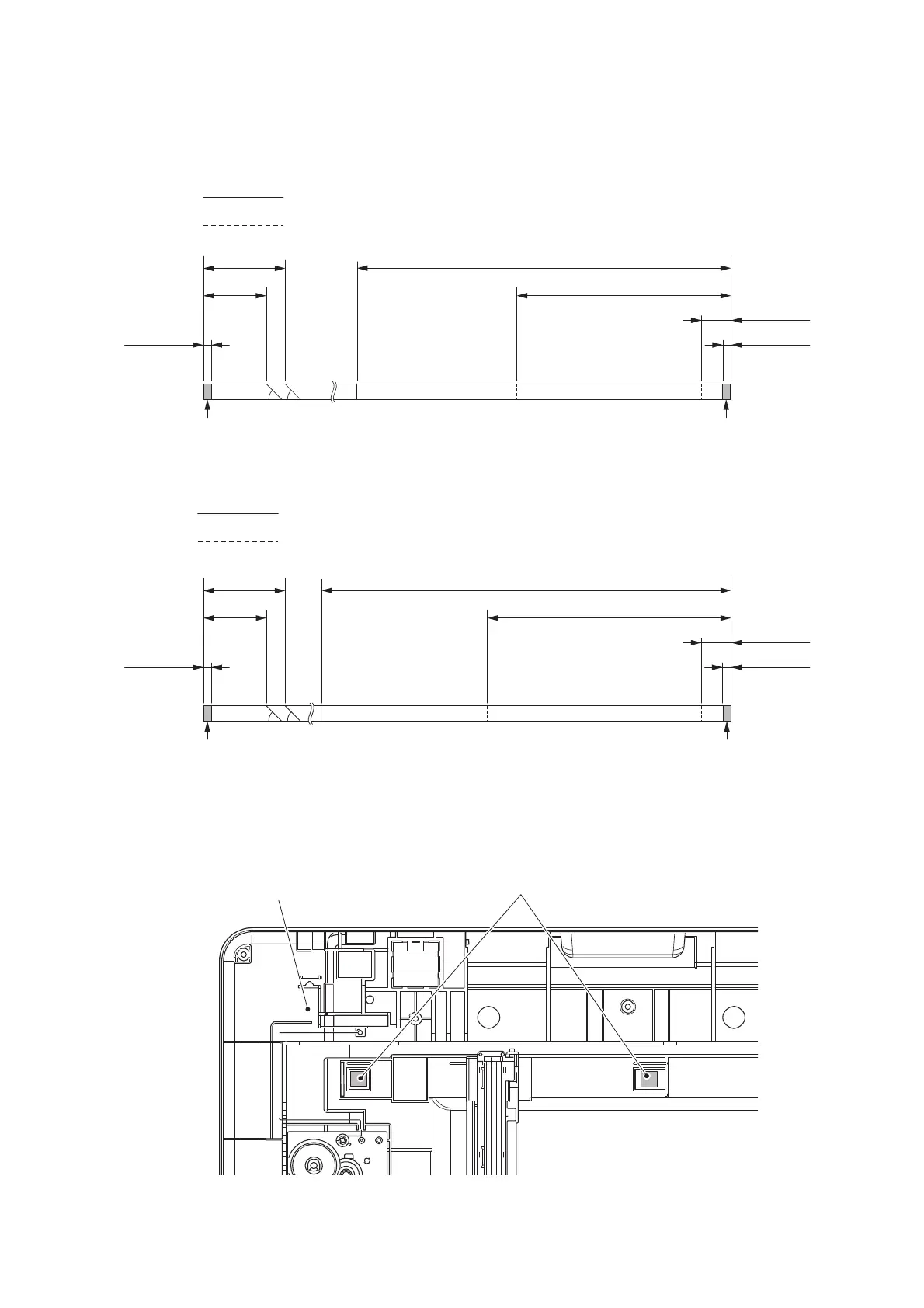

1) Fold the first side CIS flat cable as shown in the illustration below.
■ For A4
Fig. 3-65
■ For LGL
Fig. 3-66
2) Attach the two pieces of 12 mm x 12 mm double-sided tape on the document scanner unit
at positions shown in the illustration below. (If the old double-sided tape remains attached,
replace it with a new one.)
Fig. 3-67
Mountain fold
Valley fold
78±1
491
10±1.5
265±2
CIS side
Main PCB side
45°
Reinforcing plate
45°
37±1
101±1
Fold at edge of
reinforcing plate
10±1.5
Fold at edge of
reinforcing plate
Reinforcing plate
Mountain fold
Valley fold
78±1
505
10±1.5
300±2
45°
Reinforcing plate
45°
37±1
101±1
Reinforcing plate
10±1.5
Main PCB side
Fold at edge of
reinforcing plate
CIS side
Fold at edge of
reinforcing plate
Document scanner unit
Double-sided tapes
