(2) Remove the HV insulation sheet.

(3) Release the HVPS flat cable from the securing fixtures.

(4) Remove the two taptite bind B M4x12 screws. Release the two hooks, and remove the

high-voltage power supply PCB ASSY and feed ground spring.

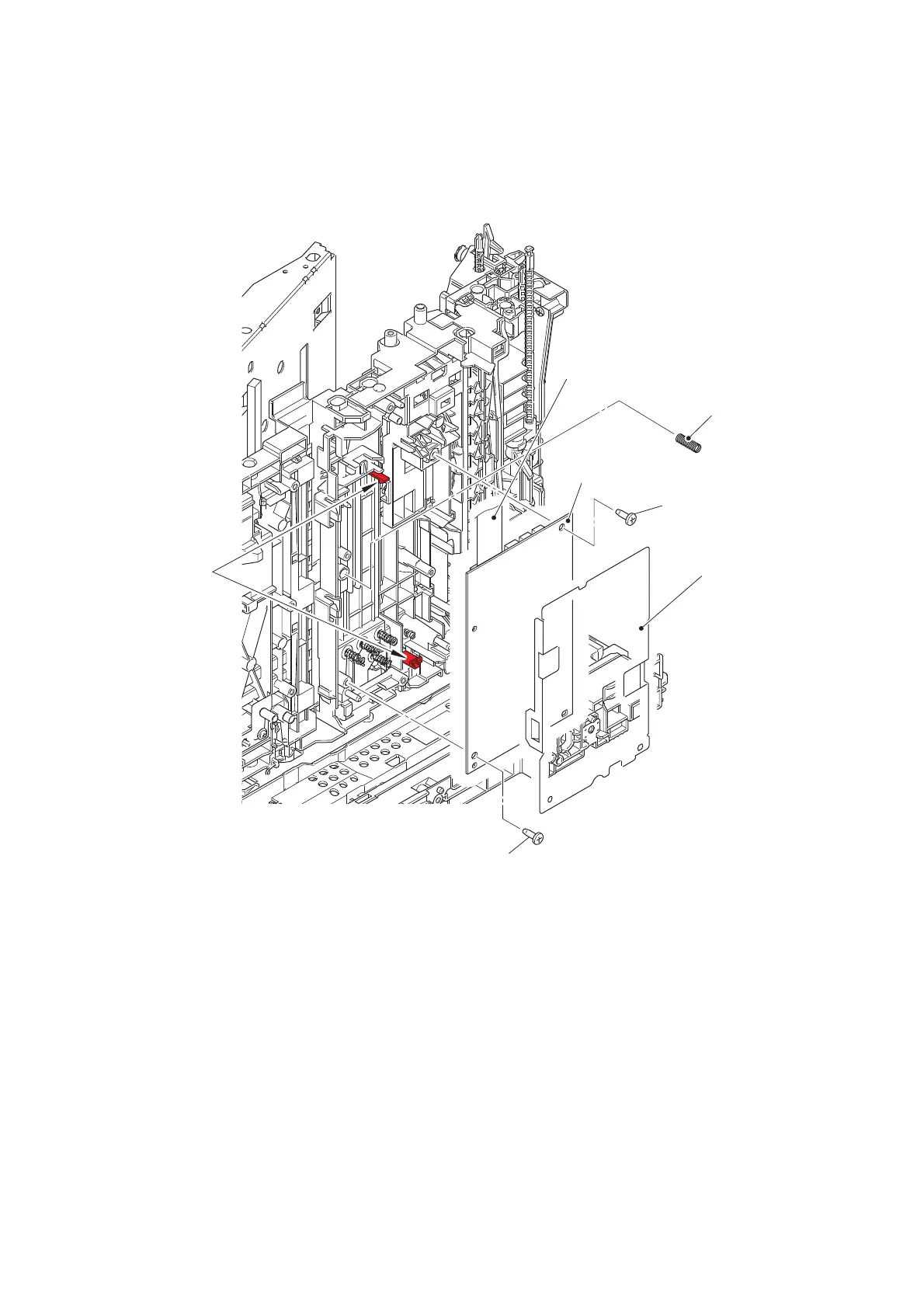

Fig. 3-109

Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB

ASSY)”.

Feed ground spring

Taptite bind B M4x12

Hooks

HV insulation sheet

High-voltage power

supply PCB ASSY

Taptite bind B M4x12

HVPS flat cable
