(2) Disconnect the securing fixtures of the MP paper empty sensor harness from the paper

feed frame ASSY.

(3) Remove the two taptite bind B M3x10 screws. Release the two hooks, and remove the

MP feed frame from the paper feed frame ASSY. Then pull out the MP paper empty

sensor harness from hole of the paper feed frame ASSY.

(4) Remove the MP lift arm spring from the paper feed frame ASSY.

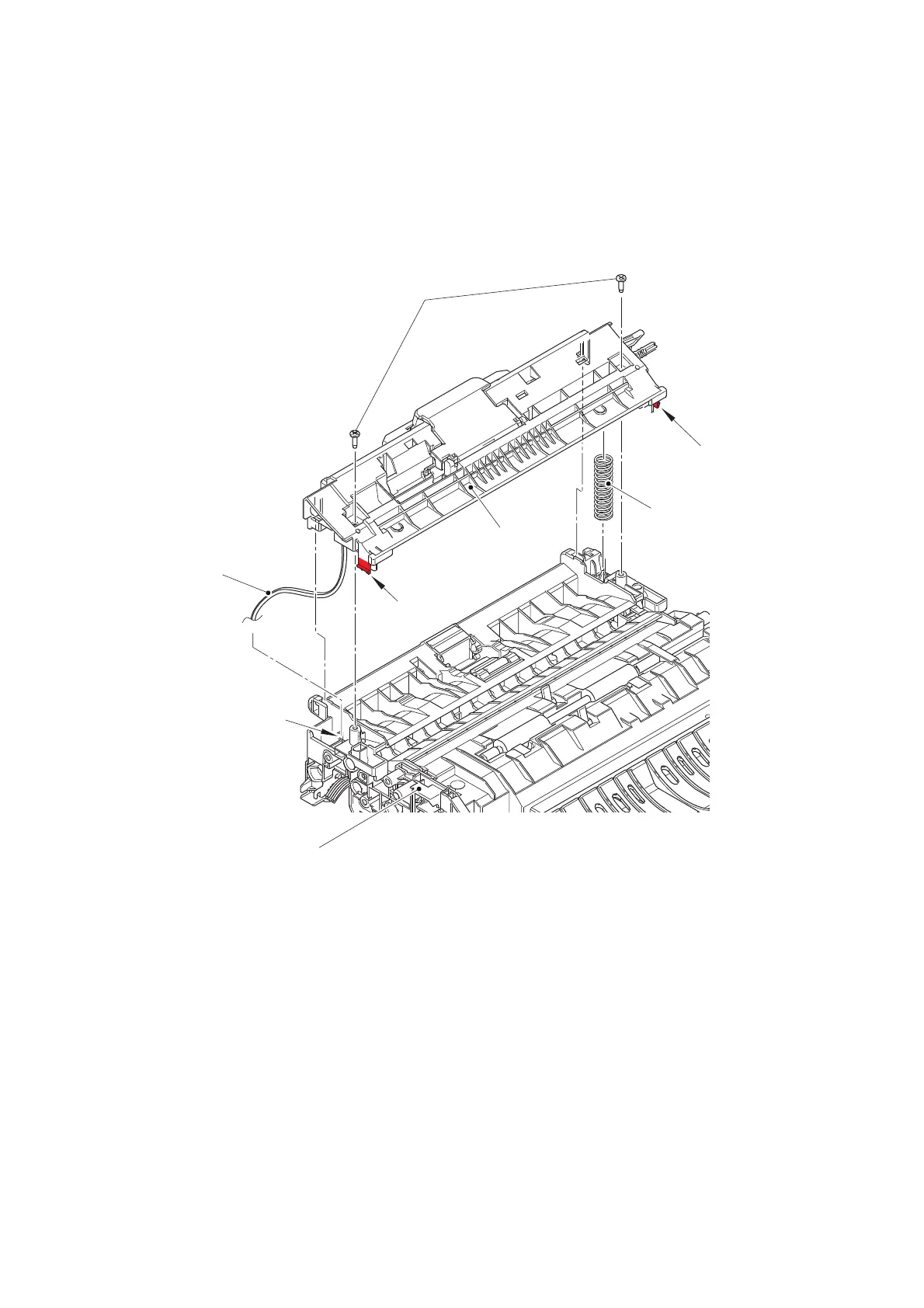

Fig. 3-117

Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB

ASSY)”.

MP lift arm spring

Paper feed frame ASSY

Hook

Taptite bind B M3x10

Hook

MP feed frame

MP paper empty sensor

harness

Hole
