3-120
Confidential
(3) Remove the ground registration spring from the hook A on the feed chute, and remove
the ground registration spring from the feed chute.
(4) Release the electrode TR from the hook B on the registration actuator holder ASSY, and
remove the electrode TR from the registration actuator holder ASSY.
(5) Release the hook C, and remove the registration actuator holder ASSY from the feed
chute.

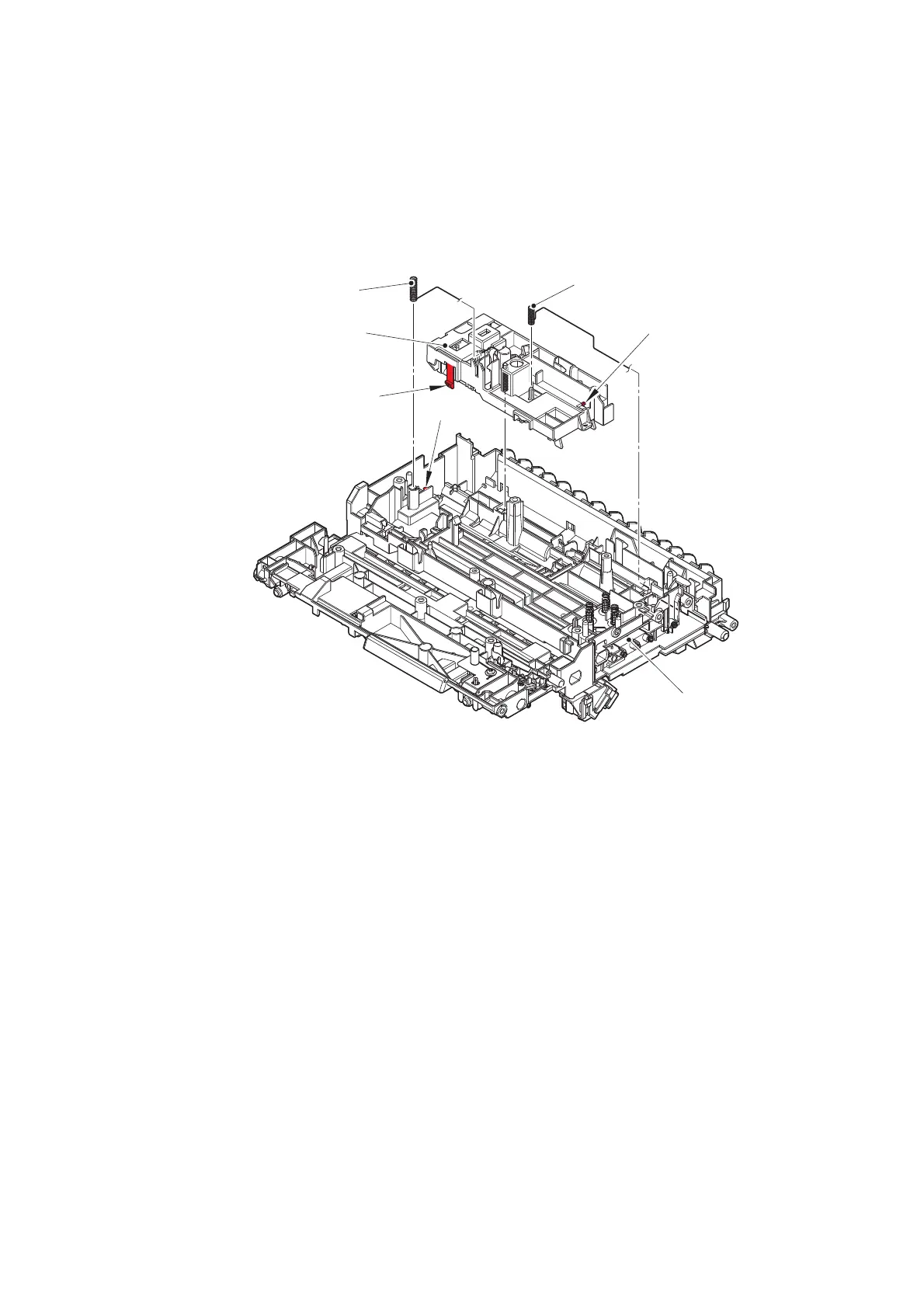

Fig. 3-121
Hook B
Ground registration spring
Registration actuator holder ASSY
Hook C
Electrode TR
Feed chute
Hook A
To Next Page
