3-136
Confidential
(6) Turn the LT paper feed actuator in the direction of the arrow A, and push the hook on the
LT paper feed actuator holder ASSY to slide the LT paper feed actuator in the direction
of the arrow B to remove it from the LT paper feed actuator holder ASSY.
(7) Remove the LT paper feed actuator spring from the LT paper feed actuator.
(8) Disconnect the securing fixtures of the LT paper feed sensor harness from the LT paper
feed actuator holder ASSY, and then release the hook to remove the LT paper feed
sensor PCB ASSY from the LT paper feed actuator holder ASSY.

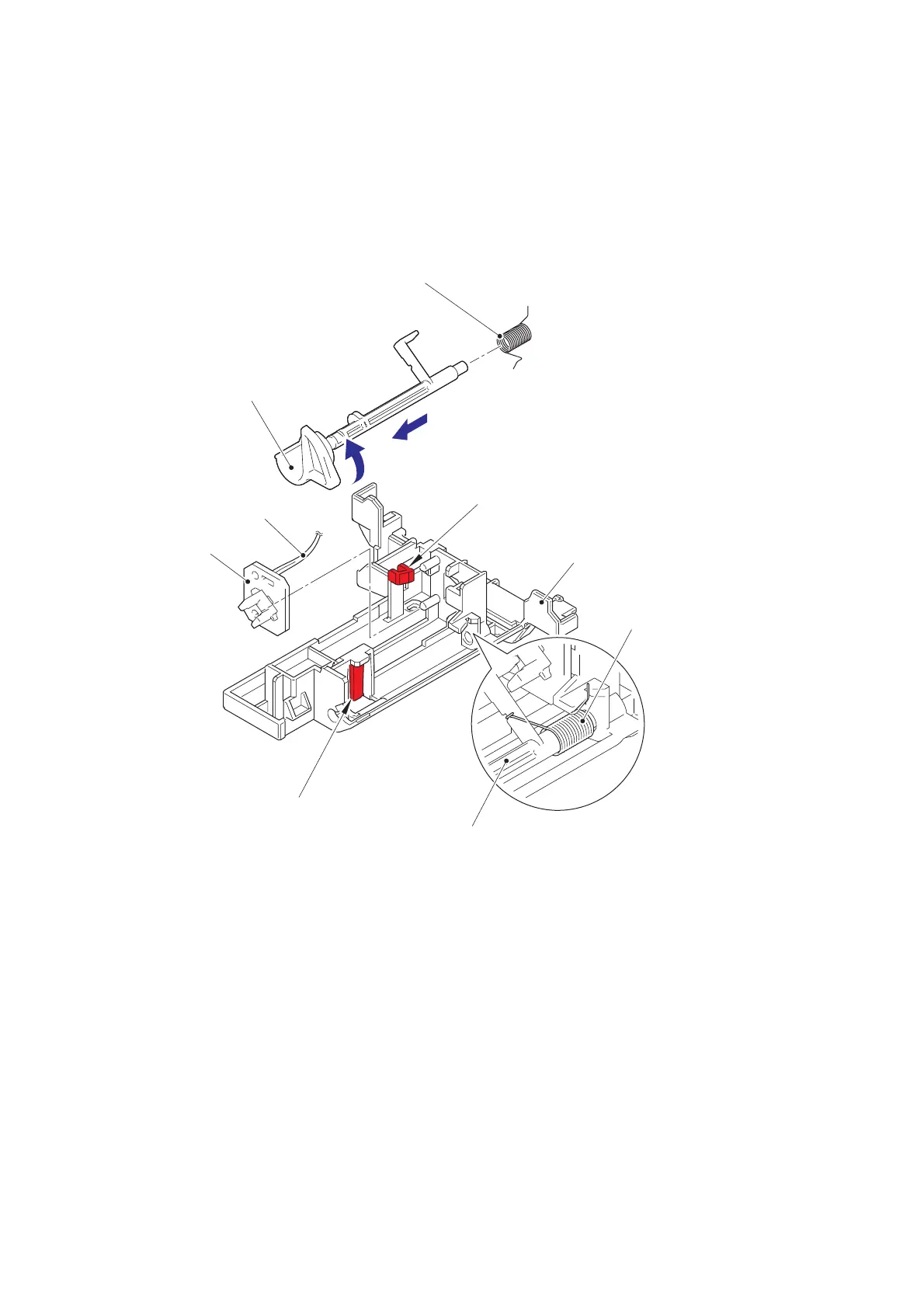

Fig. 3-139
LT paper feed actuator
LT paper feed actuator holder ASSY
LT paper feed actuator spring
LT paper feed
sensor harness
Hook
LT paper feed
sensor PCB ASSY
A
B
Hook
LT paper feed actuator
LT paper feed actuator spring
To Next Page
