Brother MFC-8890DW - Lubrication

5-10
Confidential
5. LUBRICATION

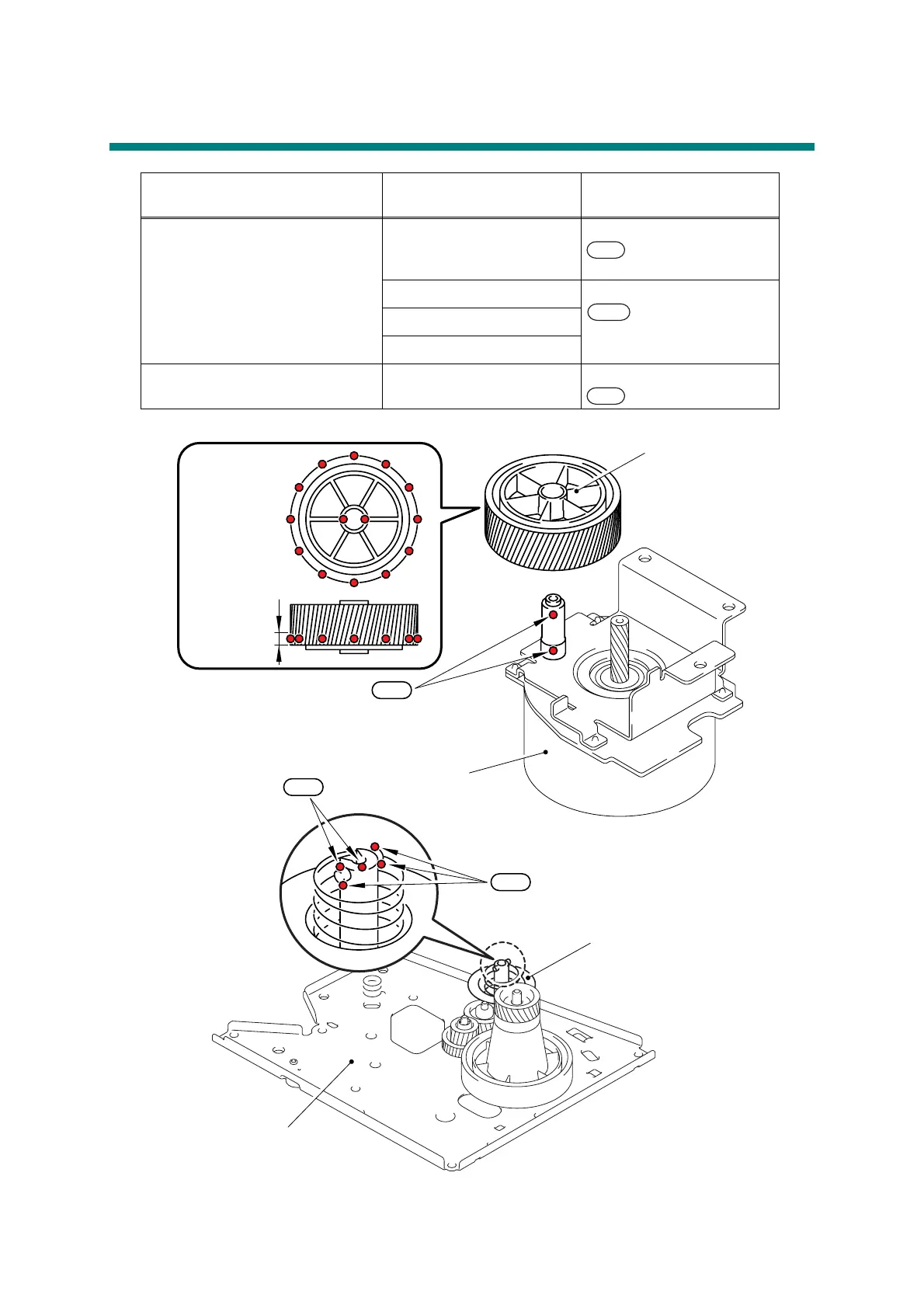

Fig. 5-3
The kind of the lubricating oil
(Maker name)
Lubrication point Quantity of lubrication
BG-MU
(Kanto Kasei)
Dev gear 37R joint drive
Main motor ASSY
Drum gear 82R
2mm dia. ball
ADF cover 1.5mm dia. ball
Document exit roller ASSY
Switch back roller ASSY
EM-D110 (Dow Corning) Separation pad ASSY 2mm dia. ball
BG2
BG1.5
EM2
Apply grease
on the cogs
of the motor
side
Main motor ASSY
Gear 82R
BG2
BG2
BG2
DEV gear 37R joint drive
Gear plate calking ASSY
