9.8.34 Document Eject Tray

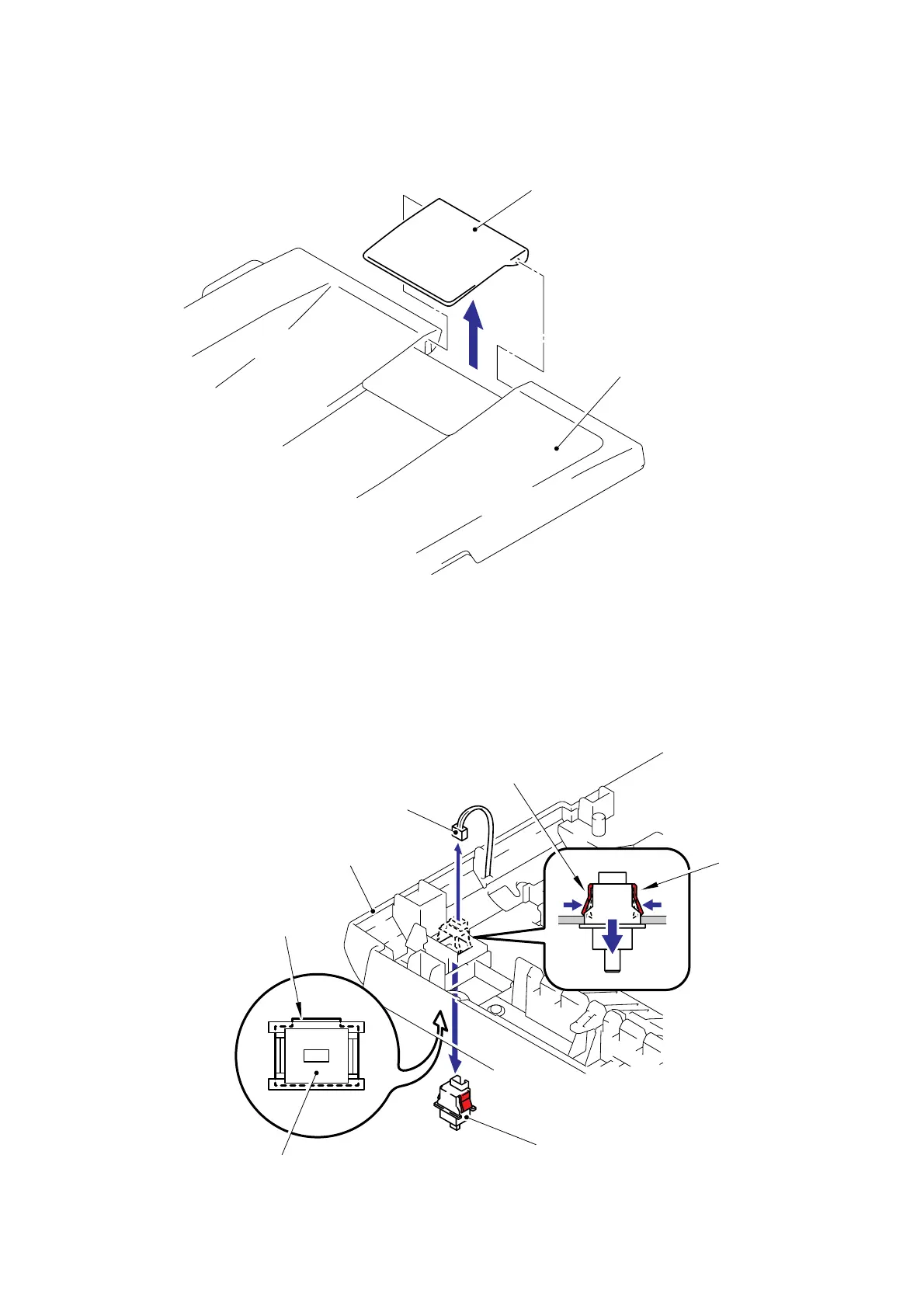

(1) Remove the ADF document output support flap from the Document cover.
Fig. 5-93
9.8.35 Document Cover Sensor
(1) Disconnect the Connector from the Document cover sensor.
(2) Pull the Document cover sensor downwards to remove it from the Document cover while
pressing the Hook of the Document cover sensor.
Fig. 5-94
ADF document output support flap
Document cover
<Front side>
Hook
Hook
Connector
Document cover
Boss
Document cover sensor
Document cover sensor
22
2
2
1
<Back side>
