Brother MFC-9460CDN Service Manual

3-80
Confidential
9.21 Document Hold ASSY/Earth Spring

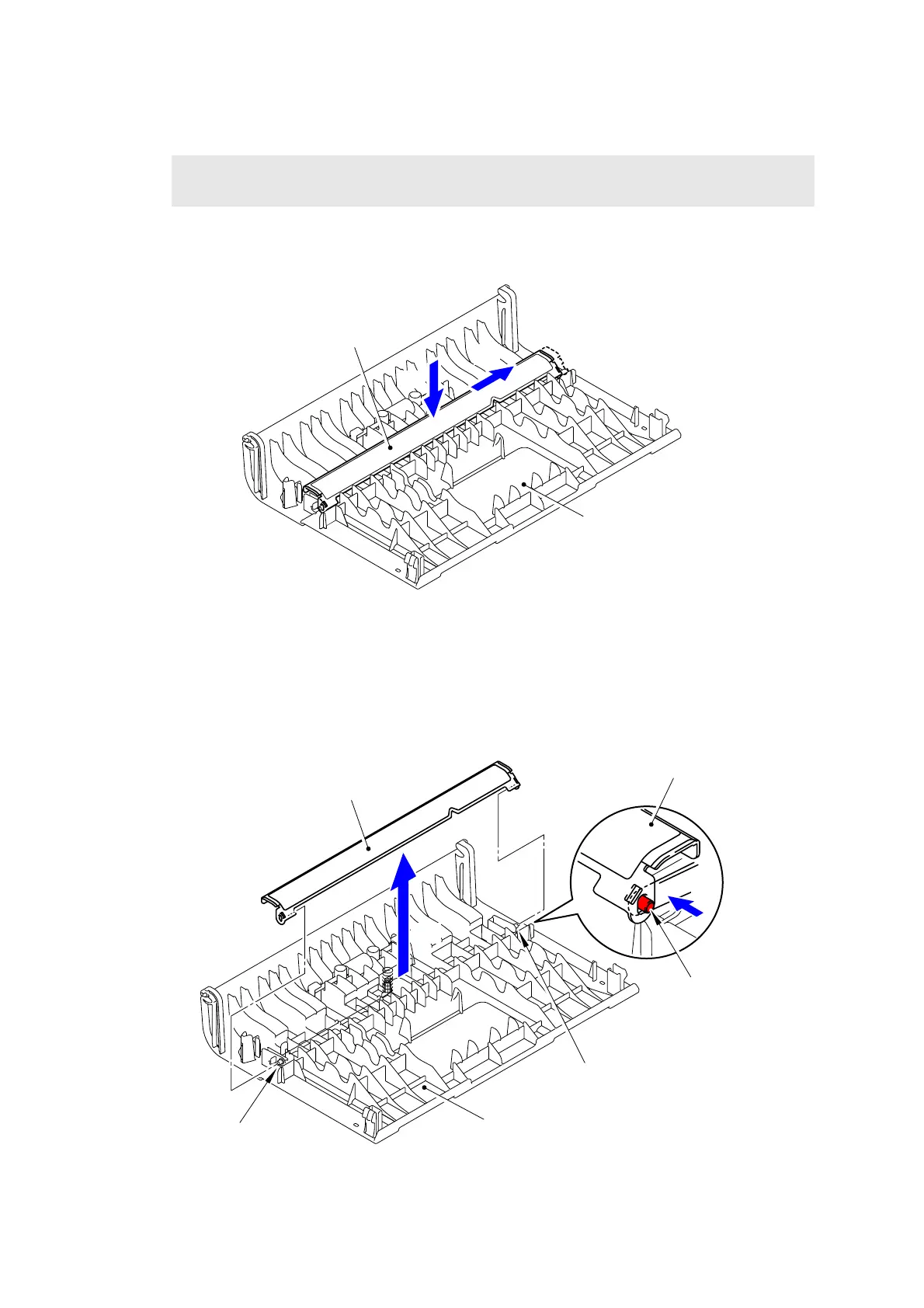

(1) As pressing the Document hold ASSY, slide it in the direction of the arrow 1b.
Fig. 3-90
■ A4 model
(2) Remove the Pin "a" from the Hook of the Document hold ASSY to remove the Document
hold ASSY from the ADF cover ASSY.
Fig. 3-91
Memo:
Follow the procedures (2) and (3) in the case of the Legal model.
Document hold ASSY
ADF cover ASSY
1a
1b
Document hold ASSY
ADF cover ASSY
Document hold ASSY
Pin “a”
Pin
2b
Pin “a”
2a
