9.45 Joint Cover Base ASSY

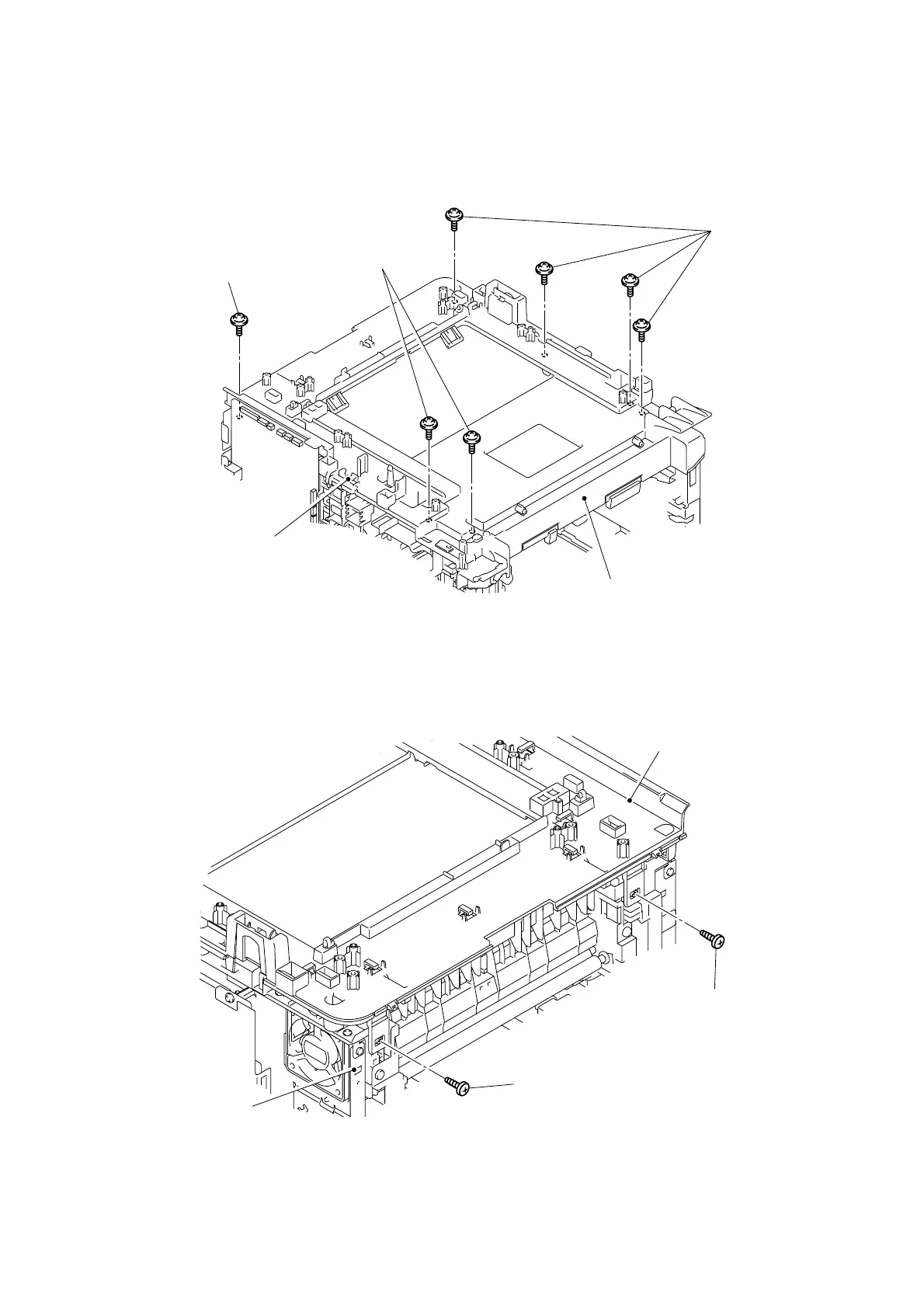

(1) Remove the seven Taptite cup S M3x8 screws from the Joint cover base ASSY.
Fig. 3-208
(2) Remove the two Taptite bind B M4x12 screws from the Joint cover base ASSY.
Fig. 3-209
Joint cover base ASSY
Taptite cup S M3x8
Taptite cup S M3x8
Main body
Taptite cup S
M3x8
<Front>
Joint cover base ASSY
Main body
Taptite bind B M4x12
Taptite bind B M4x12
<Back side>
