Brother MFC-9460CDN Service Manual

3-162
Confidential
9.54 Drum Position Sensor PCB ASSY

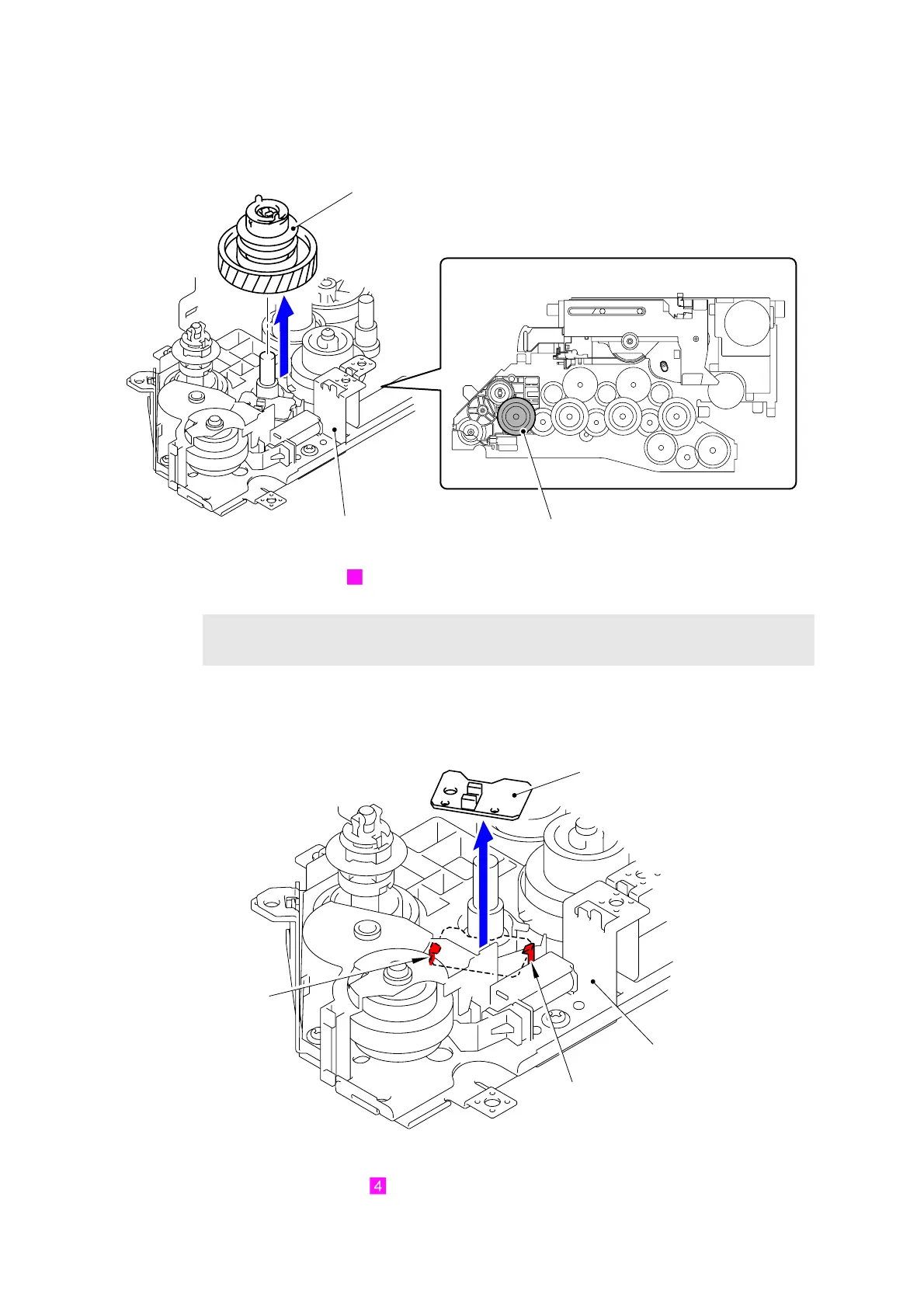

(1) Remove the Drum coupling gear Z52 from the Top drive ASSY.
Fig. 3-239
Gear position: Refer to “ Top drive ASSY.”
(2) Disconnect the wiring of the Drum position sensor PCB ASSY.
(3) Release the two Hooks to remove the Drum position sensor PCB ASSY from the Top
drive ASSY.
Fig. 3-240
Harness routing: Refer to “ Top Drive ASSY”
Note:
Be sure to align the phase before removing the gear.
Top drive ASSY
Drum coupling gear Z52
Drum coupling gear Z52
Hook
Top drive ASSY
Hook
Drum position sensor PCB ASSY
