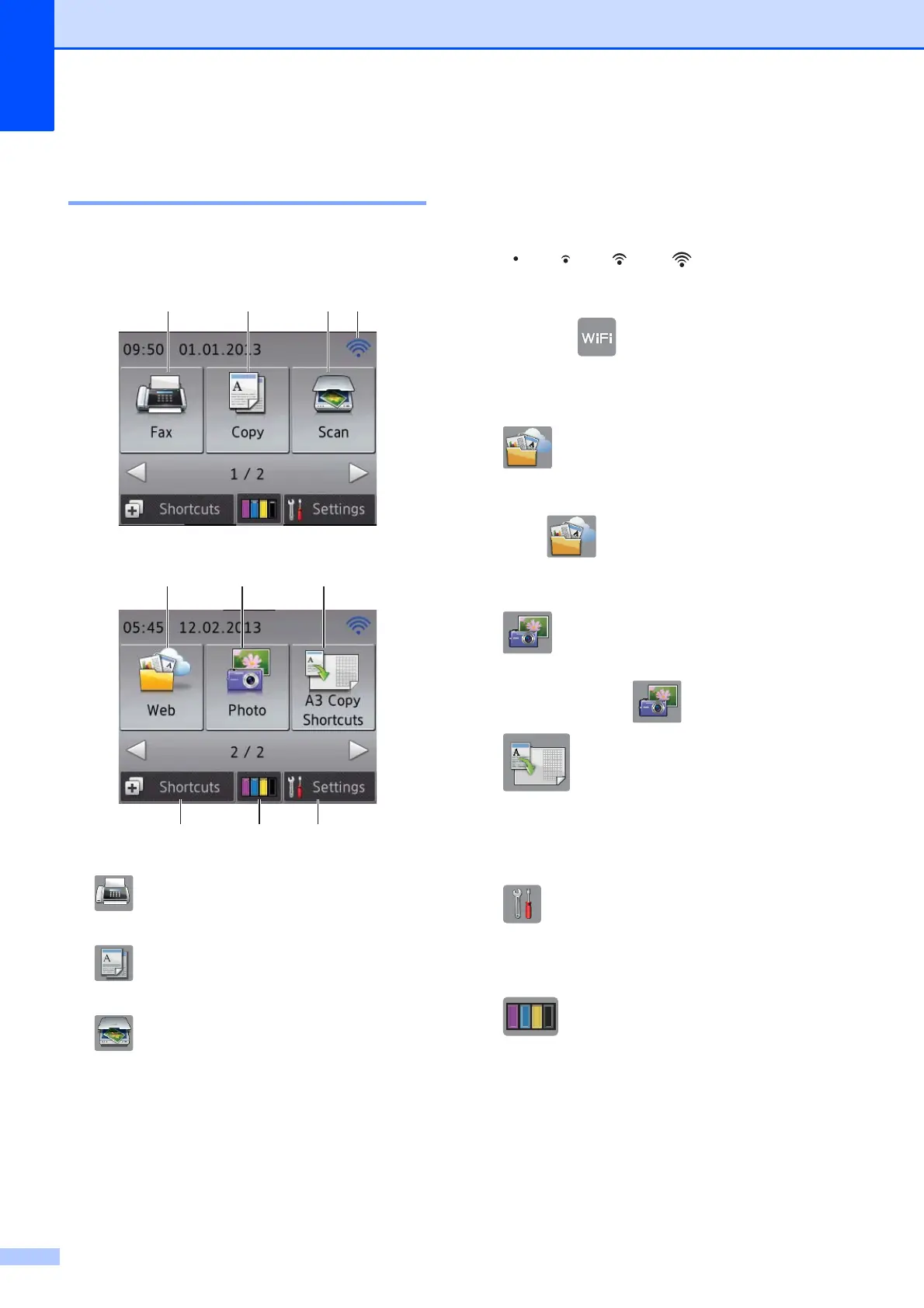

2.7"(67.5 mm) Touchscreen
LCD 1
The Touchscreen LCD shows the machine’s
status when the machine is idle.
1 Fax
Lets you access the Fax mode.
2 Copy
Lets you access the Copy mode.
3 Scan
Lets you access the Scan mode.
4 Wireless Status
A four-level indicator on the Ready mode
screen shows the current wireless signal
strength when using a wireless connection.
If you see at the top of the screen, you
can easily configure the wireless settings by
pressing it. For more information, see Quick
Setup Guide.
5 Web
Lets you connect the Brother machine to an
Internet service when you press c, and then
press .
For more information, see Web Connect
Guide.
6 Photo
Lets you access Photo mode when you press
c, and then press .
7 A3 Copy Shortcuts
You can quickly copy to A3 or Ledger size
paper using this preset menu. For details,
see Advanced User’s Guide: A3 Copy
Shortcuts.
8 Settings
Lets you access the main settings.
For more information, see Settings screen
on page 10.
9 Ink
Lets you see the available ink volume and also
lets you access the Ink menu.
When the ink cartridge is near the end of its life
or having a problem, an error icon is displayed
on the ink colour. For more information,
see Advanced User’s Guide: Checking the ink
volume.
1 2 3 4
5 6 7
910 8
0Max
