General description
■ PT-9700PC
■ PT-9800PCN
Front view Rear view
DC IN 24V
10
8
9
STATUS
1
2
3
4
5
6
7
Front view Rear view

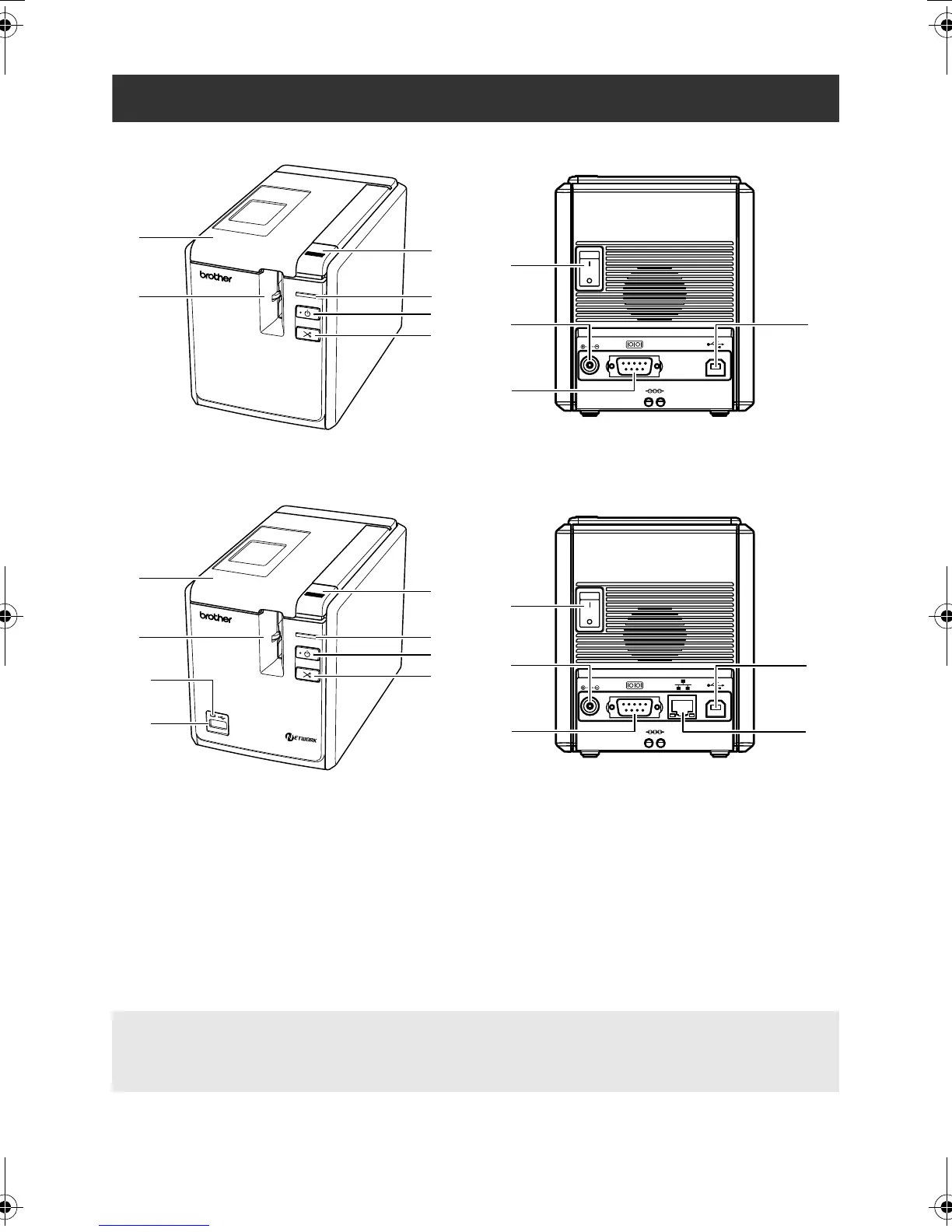

1. Tape compartment cover 8. AC adapter jack
2. Label outlet 9. Serial (RS-232C) port
3. Cover release button 10.USB port
4. STATUS lamp 11.LED lamp on USB Direct Interface
(PT-9800PCN only)
5. Power button (including lamp)
6. Feed/Cut button 12.USB Direct Interface (PT-9800PCN only)
7. Main power switch 13.LAN (10/100BASE-TX Wired Ethernet) port
(PT-9800PCN only)
Note
● If the tape compartment cover is left open, dust will collect on the print head. Always close the
cover.
13
DC IN 24V
10
8
9
STATUS
1
12
2
3
4
5
6
11
7
PT9700PC9800PCN_US.book Page 11 Wednesday, October 7, 2009 11:58 AM

Brother P-touch PT-9700PC Specifications

General

Print technology	Direct thermal
Vertical printing	Yes
Maximum resolution	720 x 360 DPI
Product color	White
Keyboard layout	ABC
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Minimum storage drive space	70 MB
Compatible operating systems	Microsoft Windows 2000 Prof. (SP4), XP, Vista, Windows 7, Mac OS X 10.4 - 10.6
Tape size	36 mm
Label type	TZ / AL / HZ
Power supply type	AC adaptor (AD9100ES) (Enclosed)
Print sizes included	20
Maximum label length	1 m
Tape cutting	Automatic
Number of styles	10
Built-in barcodes	POSTNET, UPC-A, UPC-E
Bundled software	P-touch Editor 5.0
Package weight	3.190 g

Weight and Dimensions

Depth	193 mm
Width	116 mm
Height	140 mm
