Brother P-touch PT-9700PC User Manual

23
4

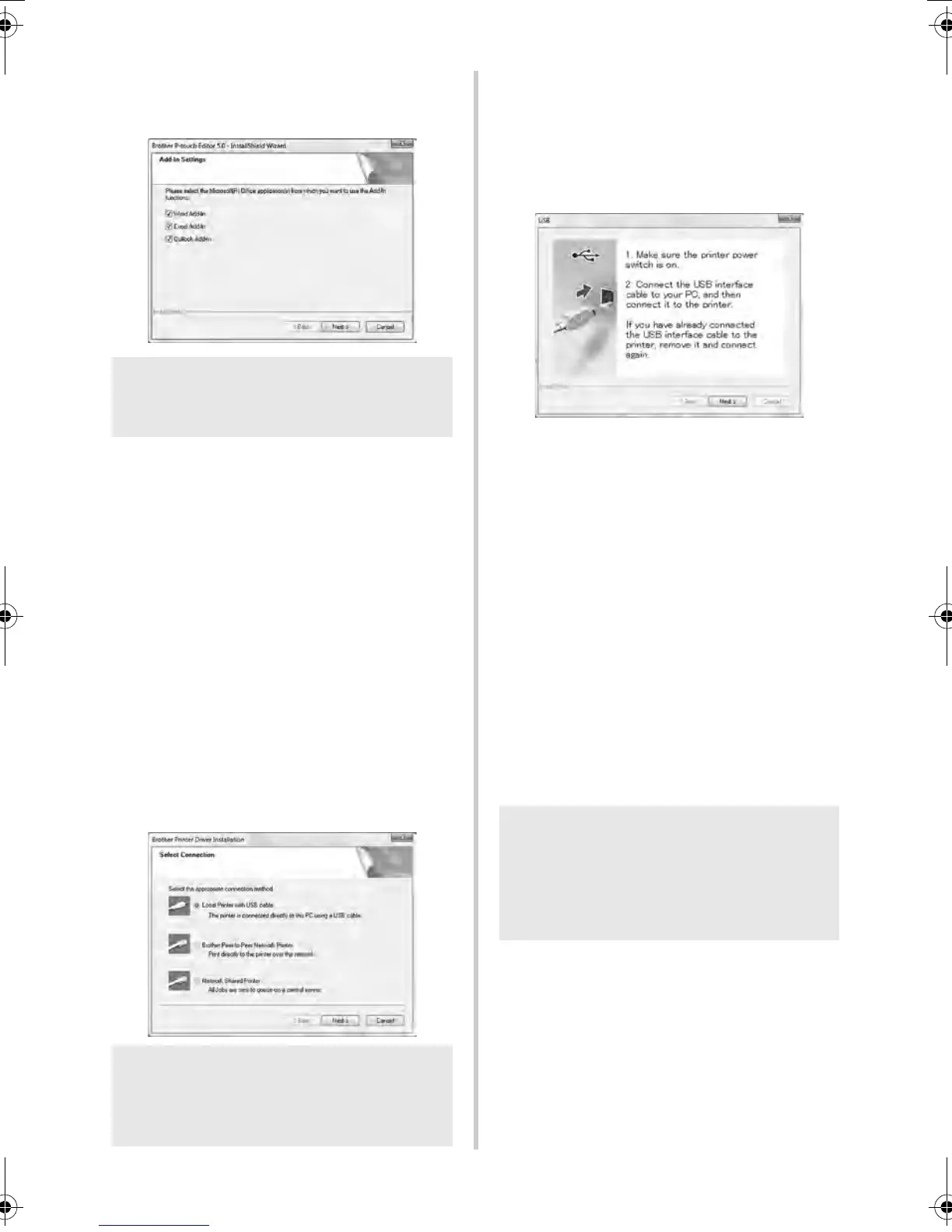

Put a check mark in the box next to the
Add-in programs you want to install, and
click [Next].
5
Click [OK].
Then, choose your connection method
and click [Next].
Connection method:
 Local Printer with USB cable
See “For USB interface cable users” (→
P.23).
 Brother Peer-to-Peer Network Printer
Check the LAN cable is connected to the
printer.
See “For network interface cable users” (→
P.24).
 Network Shared Printer
Check the LAN cable is connected to the
printer.
See “For shared network printer users” (→
P.24).
■ For USB interface cable users
6
Follow the on-screen instructions. When
this screen appears, confirm the printer
power is on. Connect the USB interface
cable to your computer, and then
connect it to the printer.
7
When instructed to register your printer
online, select a registration method and
click [Next].
If you have selected to register the
product online, your default internet
browser will be launched in a new
window.
8
When instructed to download the
optional tools, select your choice and
click [Next].
• If you choose “Yes, display the page”,
you will go to the web site “solutions
center” page before finishing the
installation. (recommended)
[Select your region/country]-[Choose
your product]-[Downloads]
• If you choose “No, do not display the
page”, you will continue the
installation.
9
Click [Finish].
The software installation is now
completed.
Restart your computer if you are
instructed to do so.
0
Start the software.
Click “Start” - “All Programs (Programs)” -
“Brother P-touch” - “P-touch Editor 5.0”
to start P-touch Editor 5.0.
Note
● Make sure that all Microsoft
®
Office
applications are closed.
Note
● When using USB interface cable, do not
connect the printer to the computer until
directed to do so.
Note
● To download the optional tools later, you
can find them on this Web site:
http://solutions.brother.com/
[Select your region/country] - [Choose
your product] - [Downloads]
PT9700PC9800PCN_US.book Page 23 Wednesday, October 7, 2009 11:58 AM

Brother P-touch PT-9700PC Specifications

General

Print technology	Direct thermal
Vertical printing	Yes
Maximum resolution	720 x 360 DPI
Product color	White
Keyboard layout	ABC
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Minimum storage drive space	70 MB
Compatible operating systems	Microsoft Windows 2000 Prof. (SP4), XP, Vista, Windows 7, Mac OS X 10.4 - 10.6
Tape size	36 mm
Label type	TZ / AL / HZ
Power supply type	AC adaptor (AD9100ES) (Enclosed)
Print sizes included	20
Maximum label length	1 m
Tape cutting	Automatic
Number of styles	10
Built-in barcodes	POSTNET, UPC-A, UPC-E
Bundled software	P-touch Editor 5.0
Package weight	3.190 g

Weight and Dimensions

Depth	193 mm
Width	116 mm
Height	140 mm
