Brother RJ-2030 - For RJ-2140;2150

Setting Up the Printer
18
1
For RJ-2140/2150 1

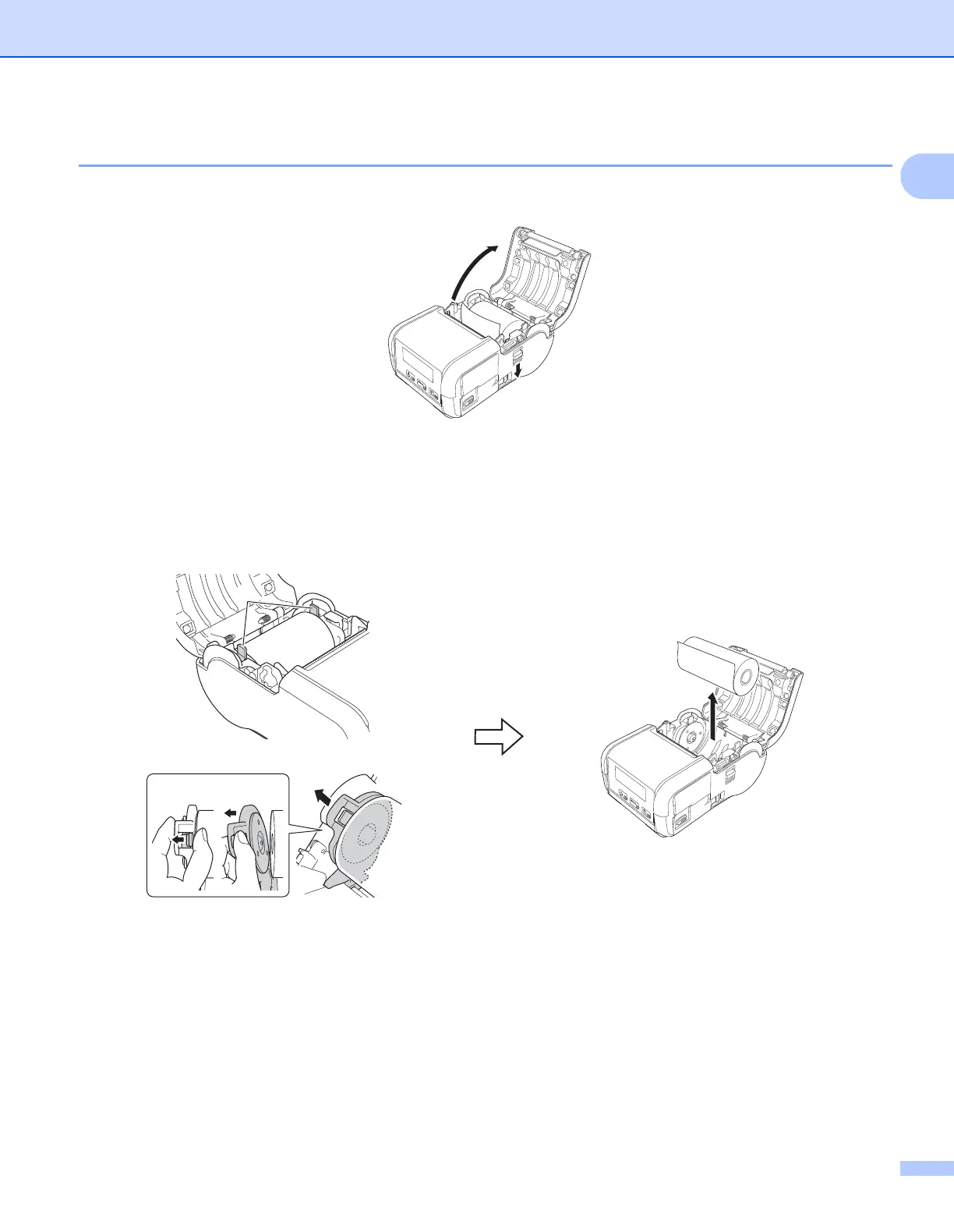

1 Pull the cover open lever in the direction shown to open the media roll compartment cover.
2 While pushing the roll release lever, tilt one of the roll guides slightly, and then remove the roll. The roll
can be removed without changing the position of the roll guides.
Do not forcefully tilt the roll guides too far. Otherwise, the roll guides could break.
1 Roll release lever
1
12
