Setting Up the Printer
3
1

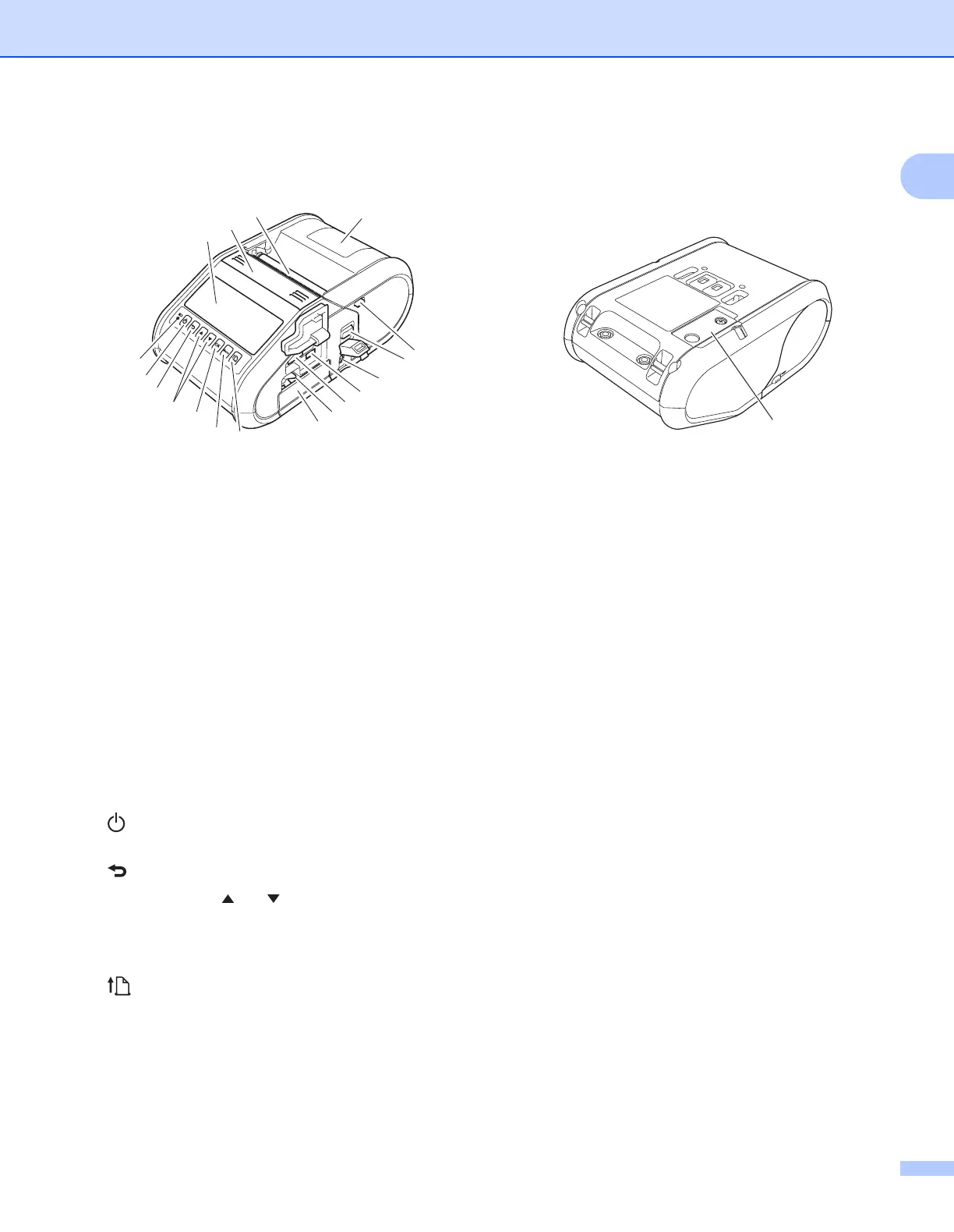

Front (RJ-3150)
1 Battery compartment
2 Battery latch
3 USB host port
4 Mini-USB port
5 DC connector
6 Cover open lever
7 Peeler latch
8 RD Roll compartment cover
9 Paper outlet
10 Label peeler
11 LCD display
12 Battery indicator
13 (Power) button
(To turn the printer on/off)
14 (Cancel) button
15 Cursor button ( UP/ DOWN)
16 OK button
17 Menu button
18 (Feed) button (To feed the paper or print the
printer settings)
Back (RJ-3150)
