T-8421C, 8422C, 8452C, 8722C, 8752C
3. INSTALLATION
15

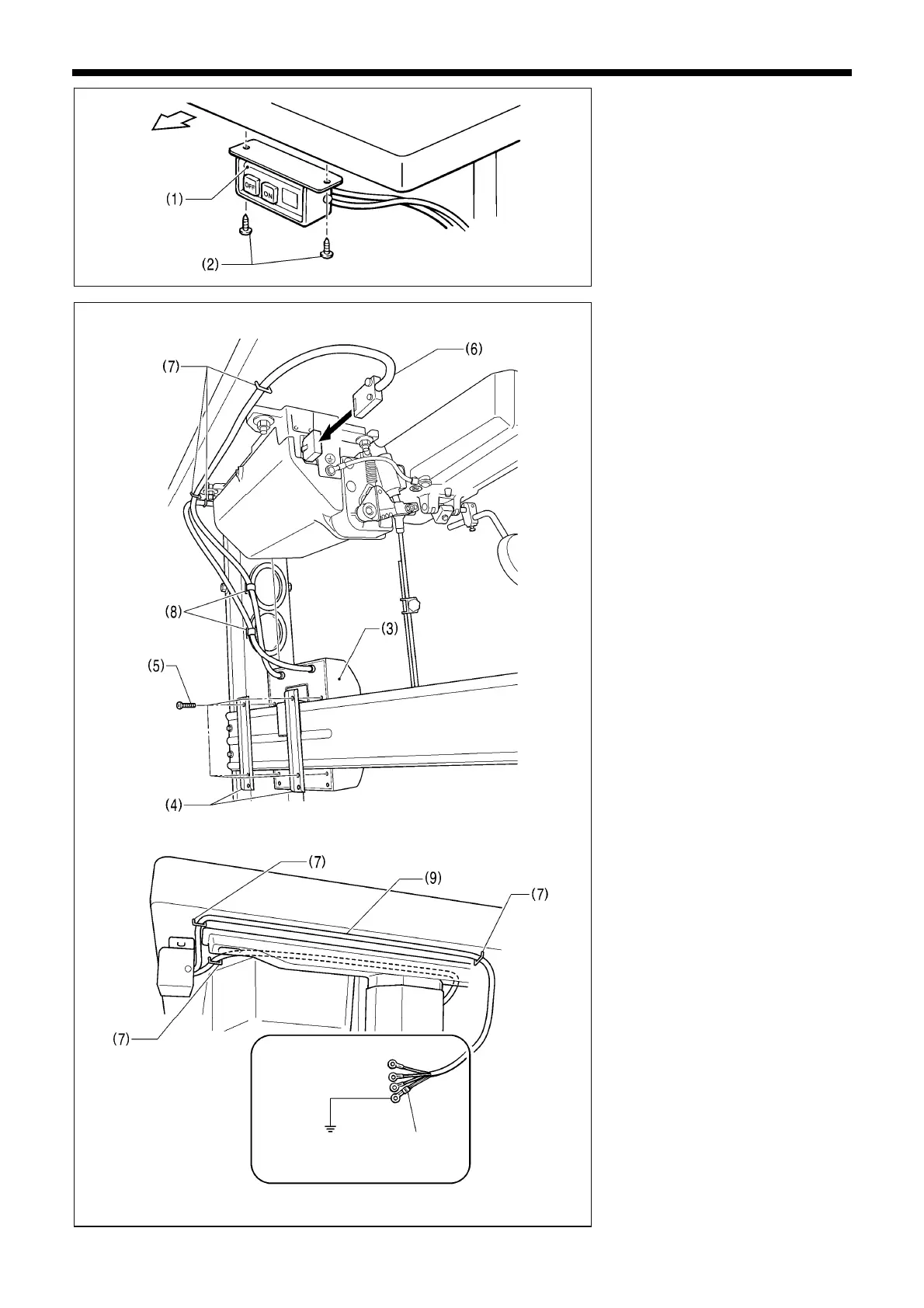

<100V/400V system>
(1) Power switch
(2) Screws [2 pcs]
(3) Transformer box
(4) Transformer box plates [2 pcs.]
(5) Screw [with washer]
(6) 3-pin power supply connector
(7) Staples [6 pcs.]
(8) Cord clamps [2 pcs.]
(9) Power cord
1. Attach an appropriate plug to the
power cord (9). (The green and
yellow wire is the ground wire.)
2. Insert the power plug into a
properly-grounded electrical outlet.
NOTE:
Take care when tapping in the
staples (7) to make sure that they do
not pierce the cords.
Do not use extension cords,
otherwise machine operation
problems may result.
Operator
4145M
2179B
Green and yellow wire
(ground wire)
2380B
To Next Page
