3.3.3.2- Programming the spotlights of the pool through the auxiliary relay

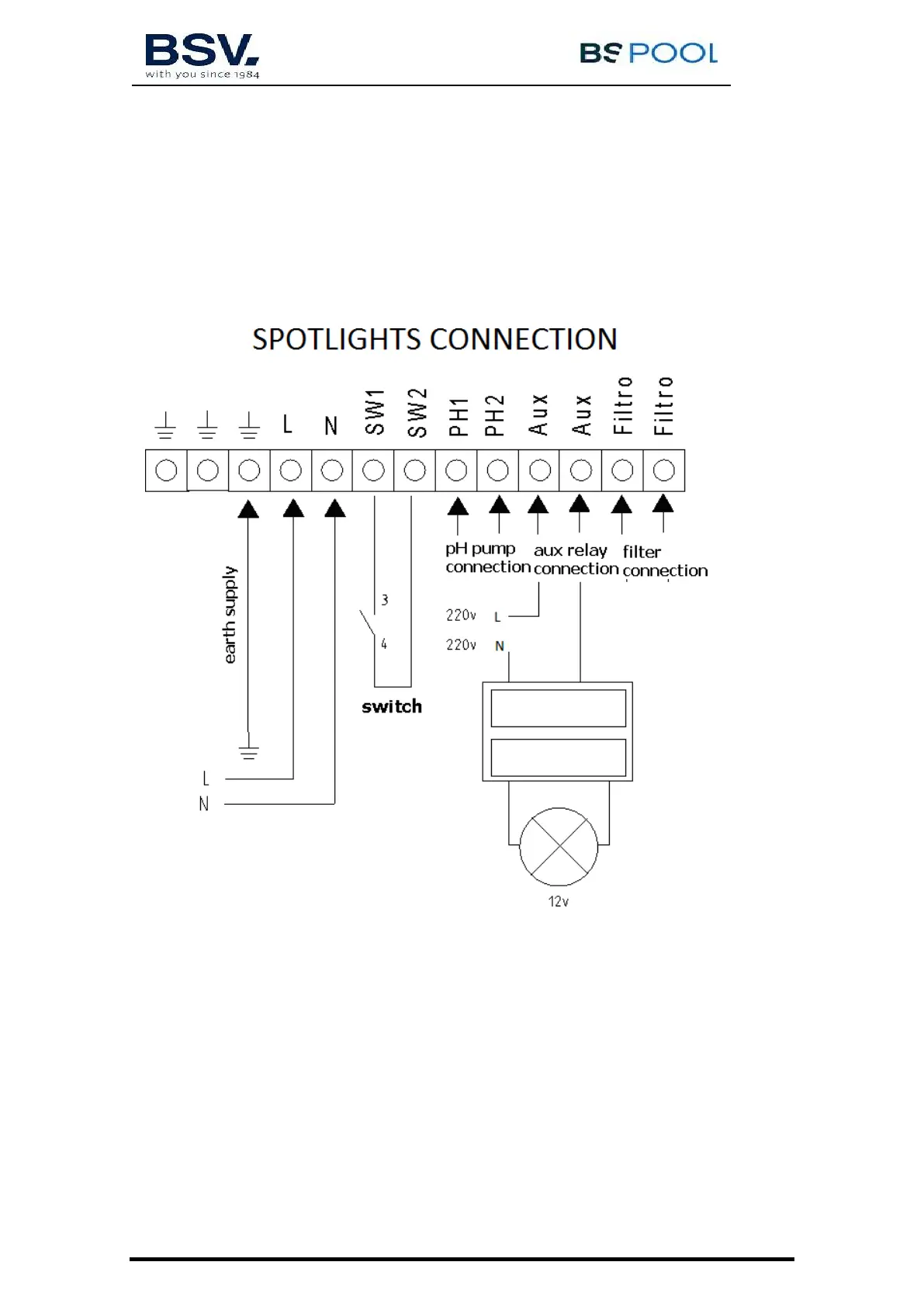

The following figure gives an example of use of the auxiliary relay incorporated in the PRO series
equipment. Lighting of your swimming pool can be programmed to switch on and off, following this
diagram:

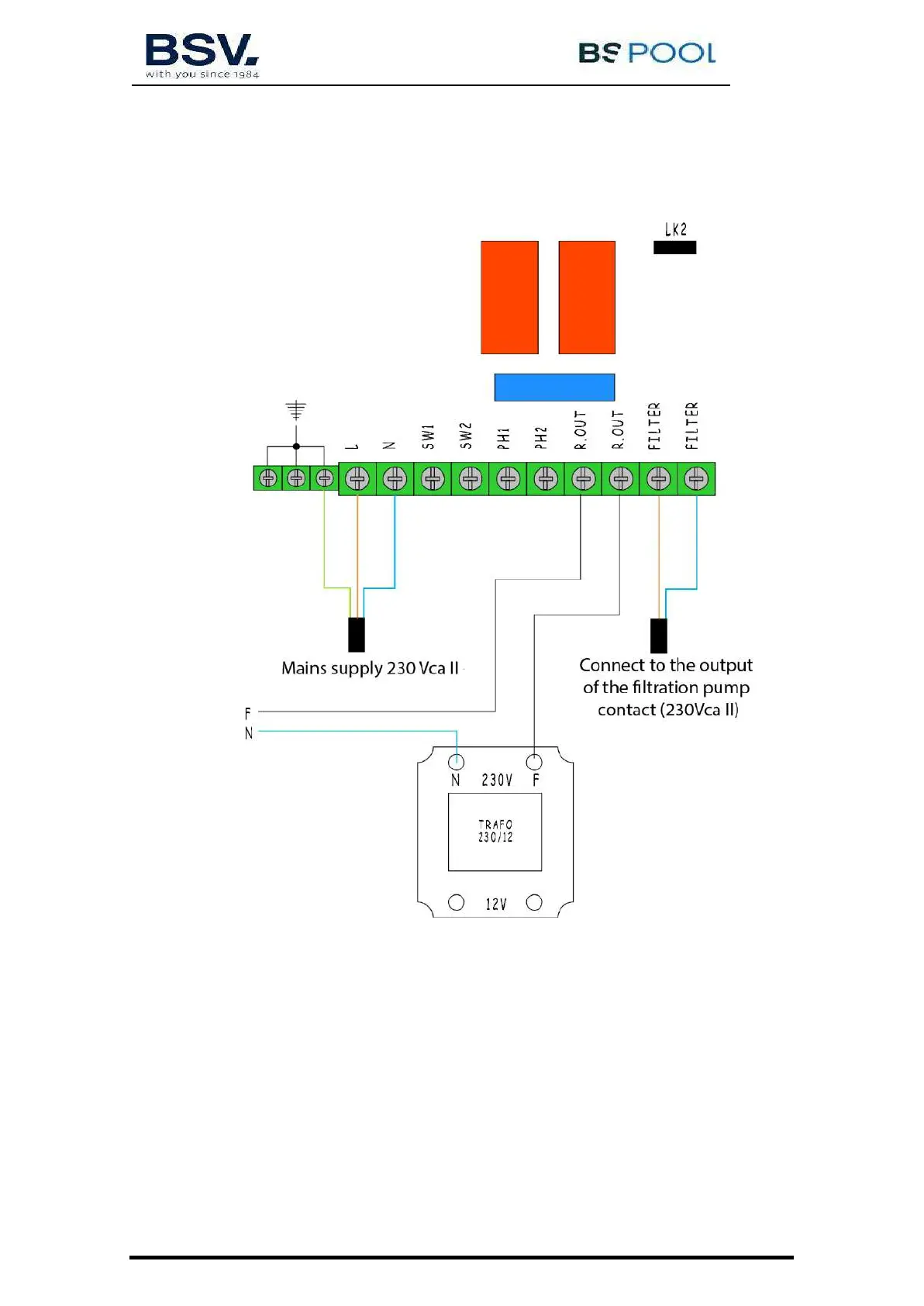

Attention: Never exceed 12A when using the auxiliary relay. For higher currents, supplement the circuit
with a contactor.
Remember that the relay is potential free, and therefore the circuit should be supplied externally.
