XT-70 Control Panel 19

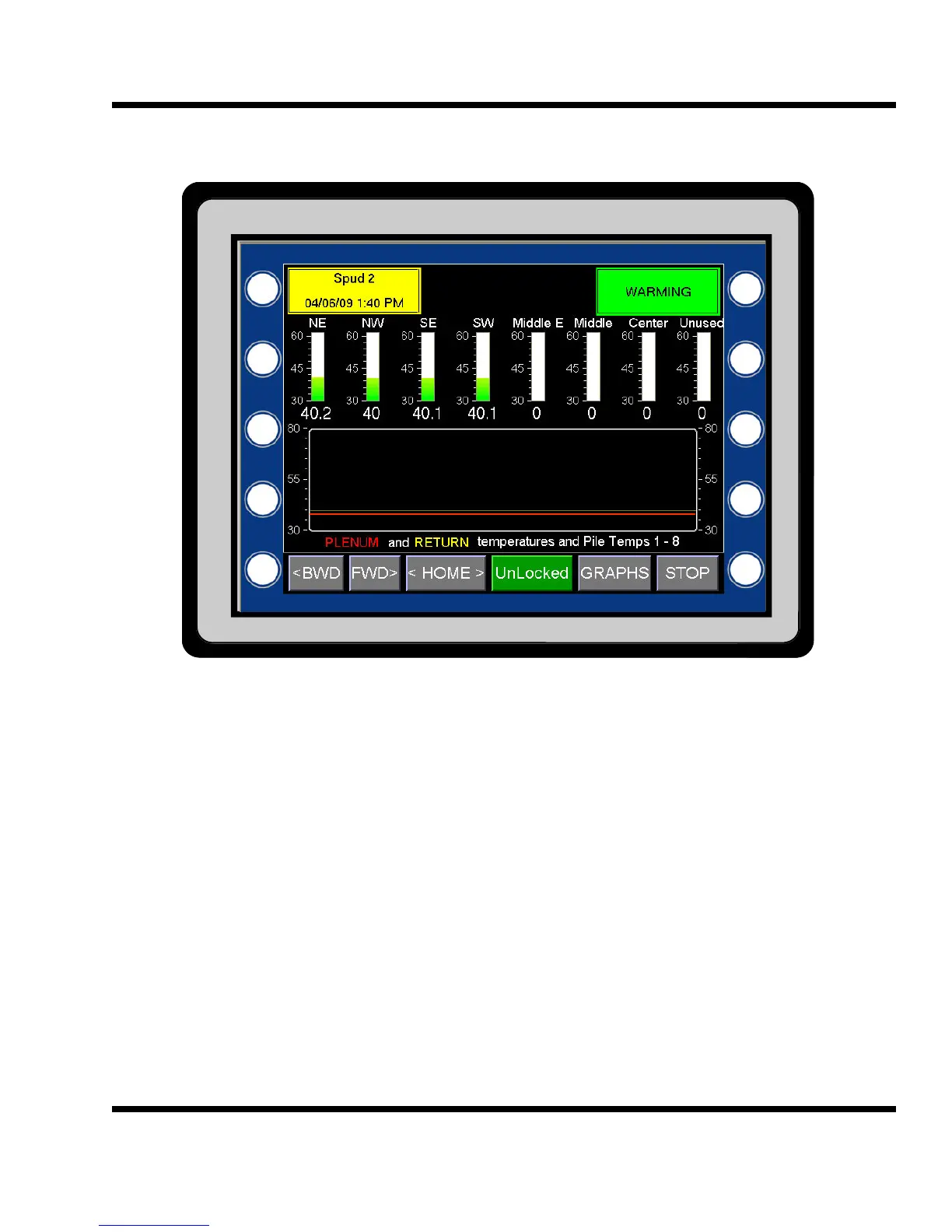

HMI PILE TEMPERATURES:
Each of the pile temperatures are displayed as a bar graph and in a window. The bar graph allows easy com-
parison between all of the pile temperatures. If the system is operating a cavity, some of the pile sensors may
be designated as cavity sensors.
The line graph shows the plenum and return temperatures for one hours.
Each pile sensor can be individually named. This is done through the web interface and can be done remotely
by the dealer. When the names of the pile sensors are changed, the names will appear on all of the records and
also on the web pages.
