XT-70 Control Panel 8

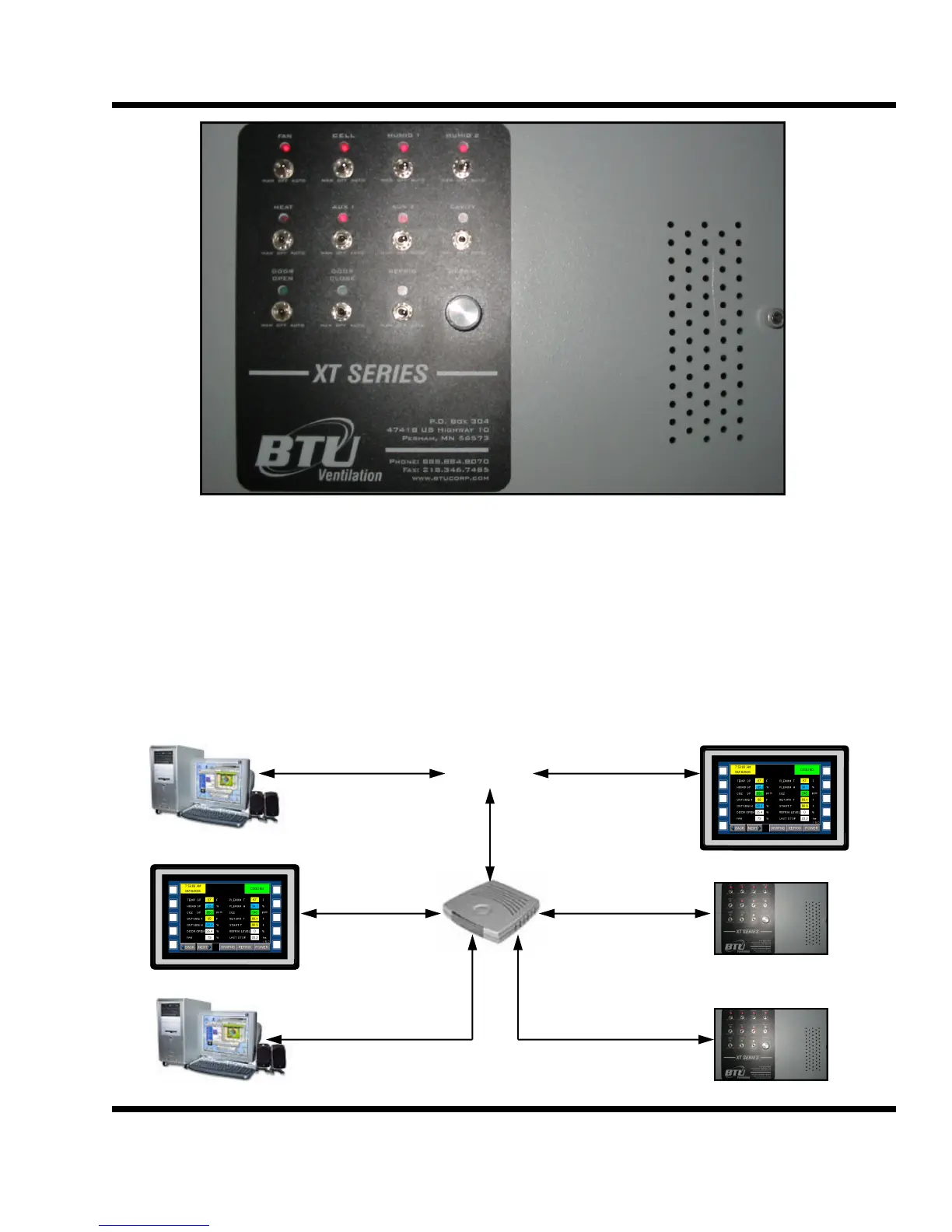

XT Control Module: The XT control module was designed for economics, ease of installation, manufacturing
and flexibility. Each outputs on the XT module has a MOA (Manual-Off-Auto) switch and an LED indicator asso-
ciated with it. By incorporating the MOA switches as part of the panel, it allows for a very compact module and
also allows the microprocessor to read full switch status. The module also includes a refrigeration control poten-
tiometer for use in manual mode. This allows adjustment of the output of the refrigeration for testing purposes.
At all times, the low temperature and air restriction safeties, along with the Start/Stop switch, supervise the out-
puts. The Aux 1, Aux 2 and Cavity outputs can be set for supervision or act independently of the Start/Stop
switch and system safeties.
Typical Ethernet Network Connections
XT Panel 01
XT Panel 02
Router
INTERNET
Remote PC
Remote HMI
Local HMI
Local PC
2.2
3.1
To Next Page
