XT-70 Control Panel 37
HMI Graph Module:

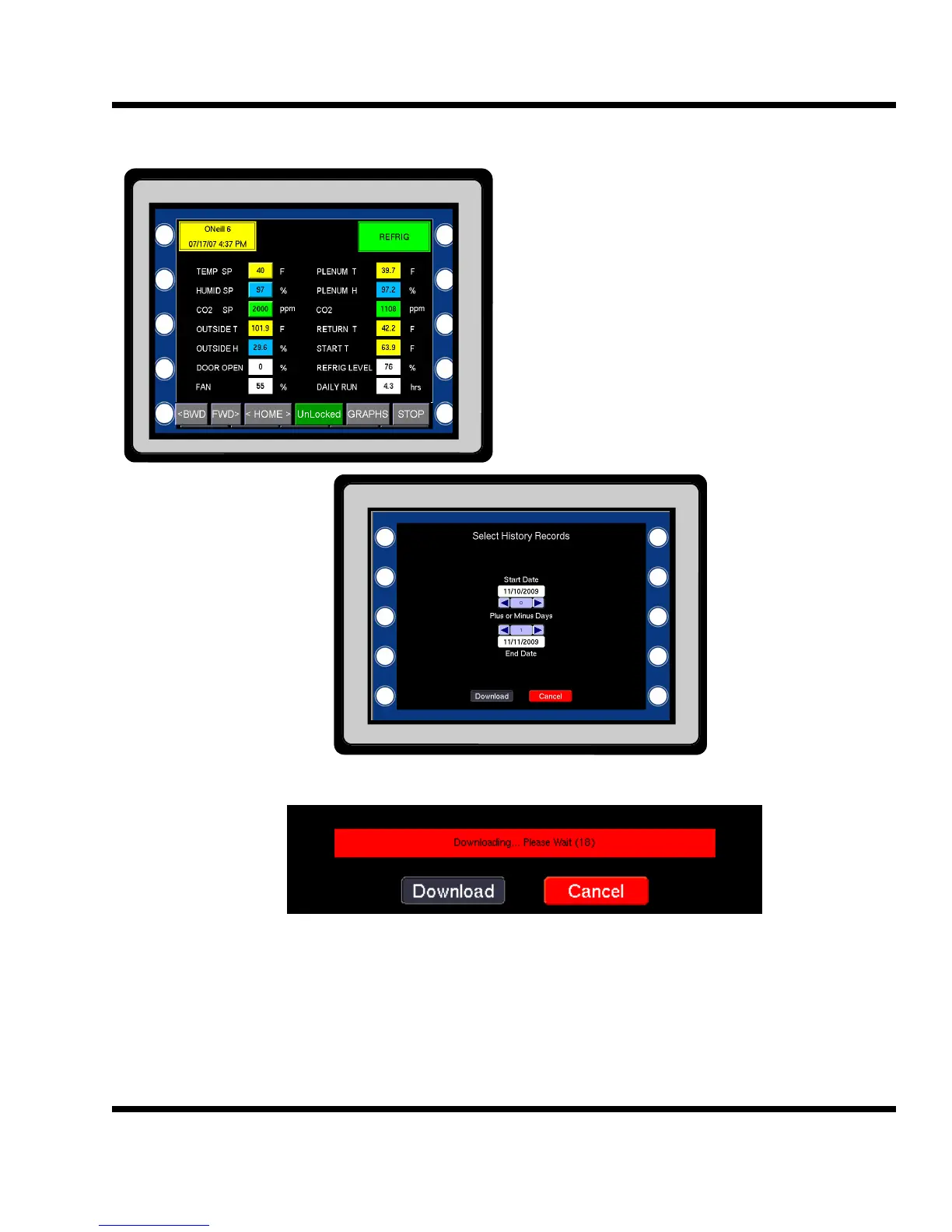

Pressing the GRAPH button from any
screen will access the Graphing module
5.16
Use the arrow keys
to select the date for
the desired records.
The default will al-
ways be from mid-
night to the current
time.
Click Download to
access the records.
When downloading the number on the right will indicate the number of records being
downloaded. If that remains at zero or hangs up click on Cancel to stop the download. When
finished it will display the graph.
