Boiler installation 7
19
We reserve the right to make any changes due to technical modifications.
Installation and maintenance instructions Logano G334 X gas-fired boiler • Issue 09/2005
Installing panel components
13. Swivel display unit to the desired position.
14. Position terminal cover and screw to control.
Installing rear boiler cover
z Slide tabs of rear boiler cover under the front boiler
cover and press down at back.
z Screw rear boiler cover to rear panel of boiler.

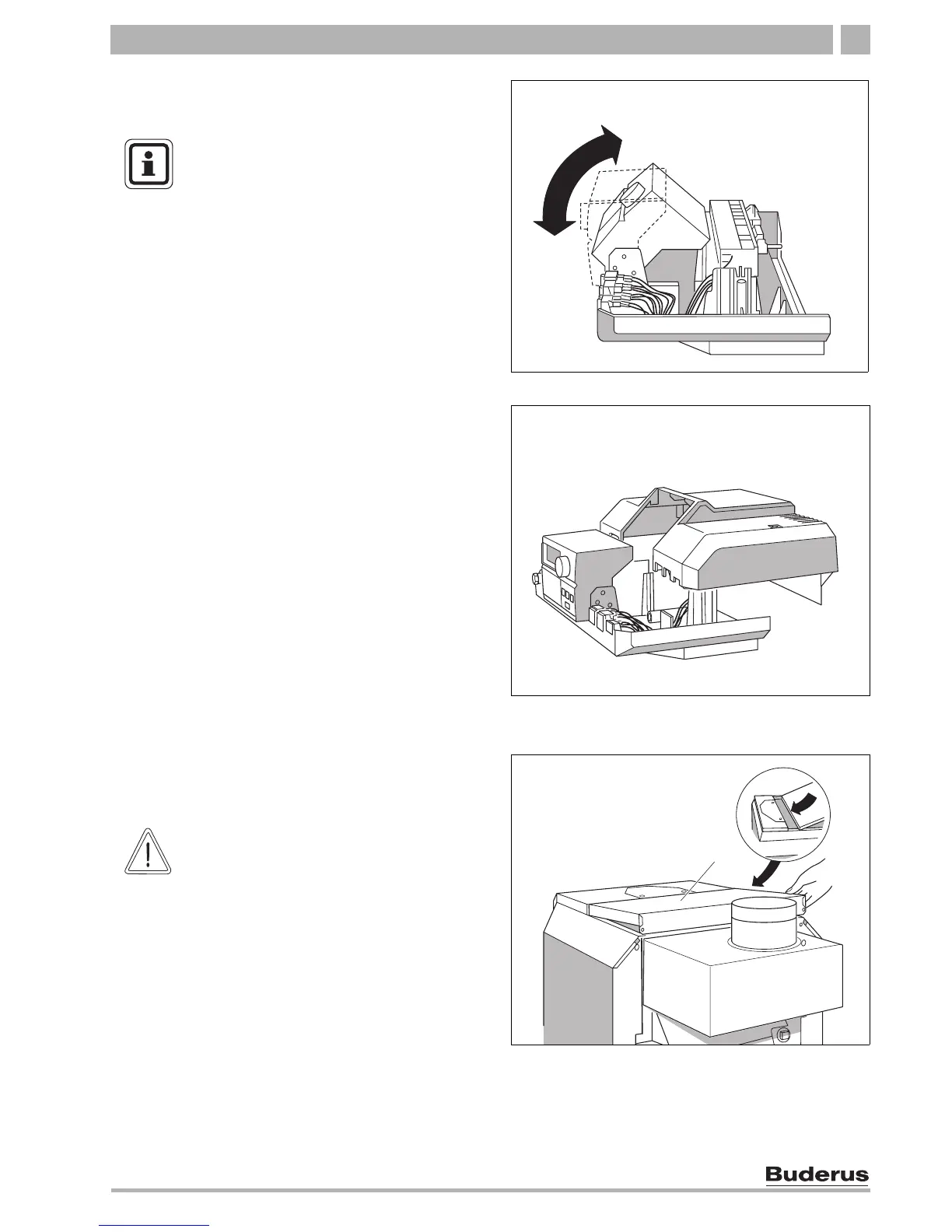

Fig. 15 Swivel display unit
USER NOTE
We recommend positioning the display
unit straight on combinations with an
L-tank.
Fig. 16 Positioning terminal cover
Fig. 17 Installing rear boiler cover
1 rear boiler cover
1
CAUTION!
SYSTEM DAMAGE
due to dirt.
If the boiler is assembled and not in use,
note the following:
z Protect the boiler connections from dirt
by closing the connections.
