4. Turn the crank clockwise to position the blade behind the specimen. The value under
REMAINING DISTANCE does not have to equal .00 in (or .00 mm) after repositioning the
blade.
5. Reposition the specimen and tighten the vise to prevent the specimen from moving.

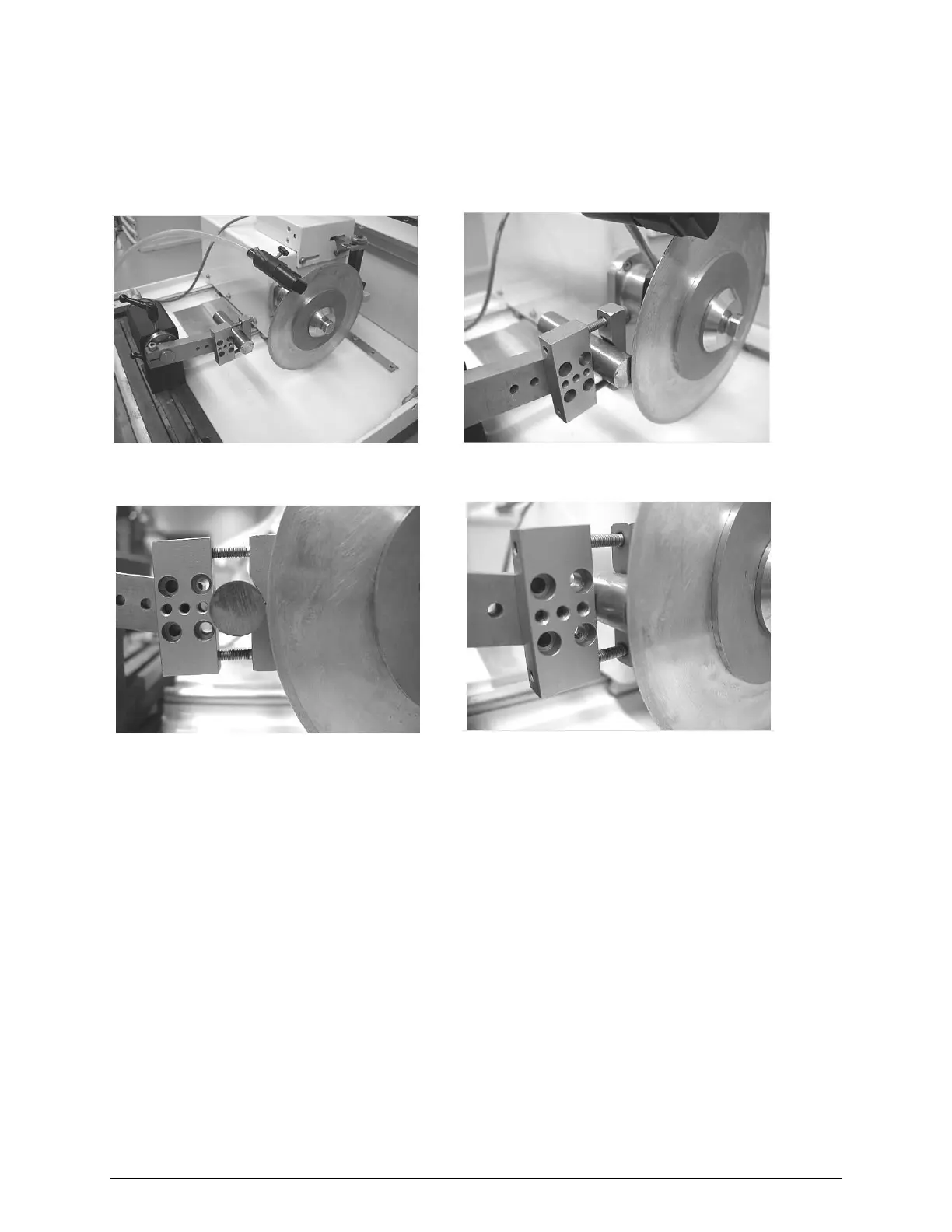

Figure 5 Positioning the specimen Figure 6 Blade behind the specimen
Figure 7 Blade almost touching the specimen Figure 8 Blade traveling the width of the cut
