2003 Buell XB9S: Chassis 2-33
HOME
REAR BRAKE MASTER CYLINDER 2.13
REMOVAL
1. See Figure 2-45. Drain brake fluid into a suitable con-
tainer. Discard used fluid according to local laws.
a. Install a length of plastic tubing over caliper bleeder
valve. Place free end in a suitable container.
b. Open bleeder valve (metric) about 1/2-turn.
c. Pump brake foot pedal to drain brake fluid.
d. Tighten bleeder valve to 36-60 in-lbs (4-7 Nm).
2. Remove brake pedal. See 2.9 BRAKE PEDAL.
3. Remove heel guard. See 2.30 FOOTPEG, HEEL
GUARD AND MOUNT.
CAUTION
Damaged banjo bolt surfaces will leak when reassem-
bled. Prevent damage to seating surfaces by carefully
removing brake line components.
4. See Figure 2-46. Remove brake reservoir hose at master
cylinder.
5. Remove seat. See 2.41 SEAT.

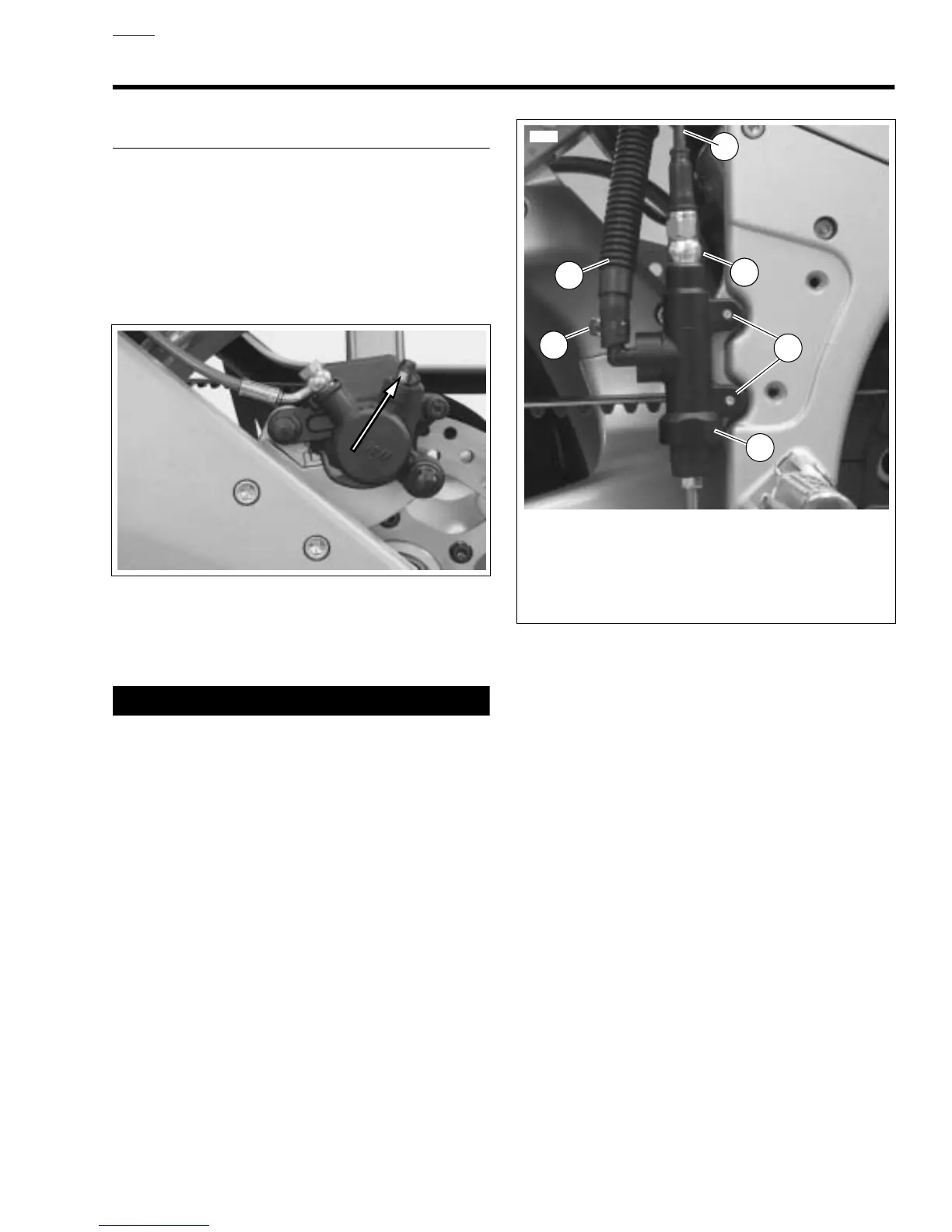

Figure 2-45. Brake Bleeder Valve, Rear Caliper
Figure 2-46. Rear Master Cylinder On Vehicle
8439
1
1. Brake line
2. Banjo bolt (metric)
3. Fasteners (2) (metric)
4. Master cylinder body
5. Clamp
6. Remote reservoir hose
3
4
5
6
2
1
