DRIVE BELT SYSTEM 6.5
GENERAL
There is no drive belt adjustment required for the Buell XB.
The system utilizes a fixed idler pulley that maintains the
desired tension throughout suspension travel and life of the
belt.
INSPECTION & CLEANING
See 1.10 DRIVE BELT.

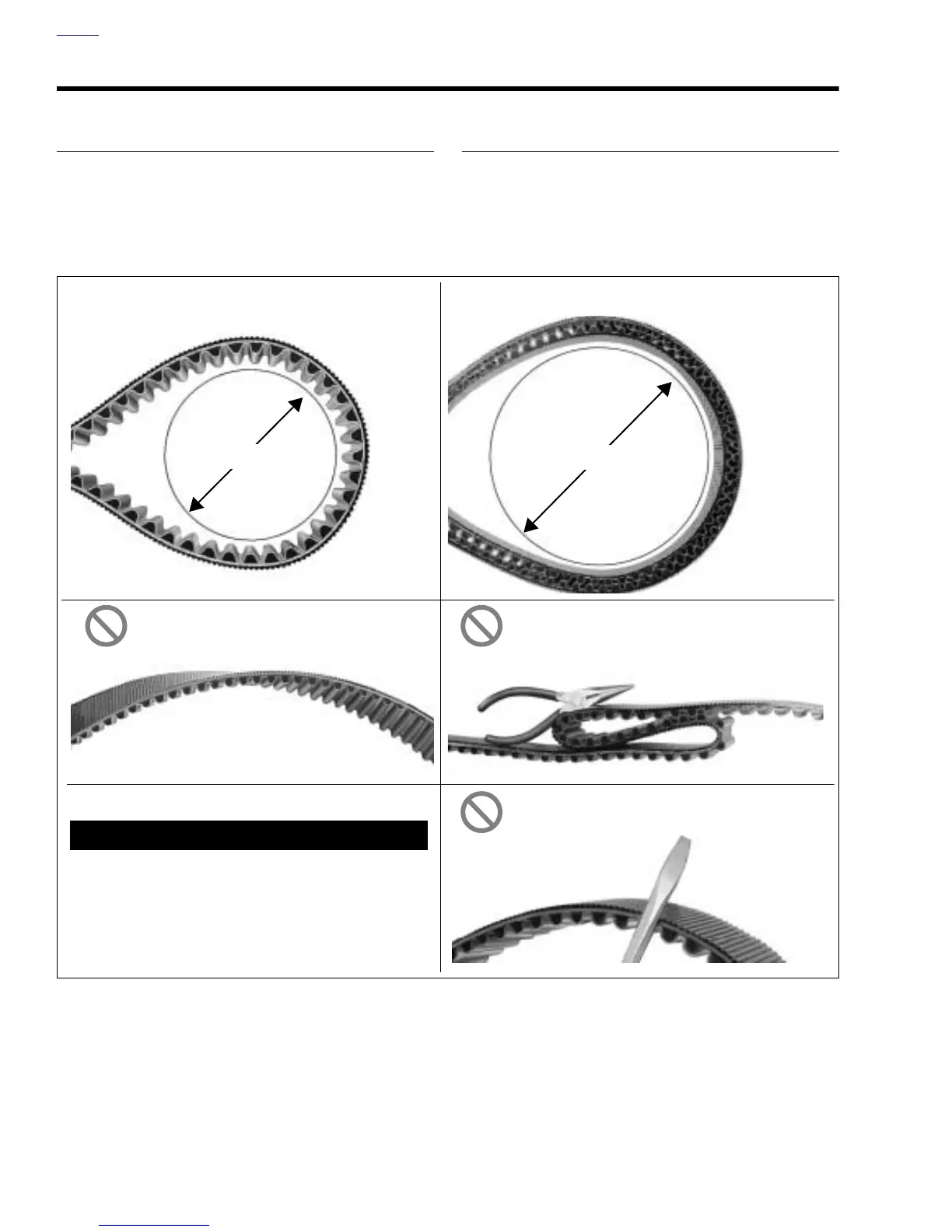

Figure 6-39. Proper Drive Belt Handling
CAUTION
Mishandling drive belt will result in premature failure.
For maximum strength, integrity and longevity, avoid
over bending (A and B), twisting (C), crimping, pinch-
ing or kinking (D), and prying (E).
AB
CD
E
Forward bend must not be less than 5 in. (127 mm). Reverse bend must not be less than 10 in. (254 mm).
Do not twist. Do not crimp, pinch or kink.
Do not pry.
Minimum Diameter
Minimum Diameter
