2003 Buell XB9S: Engine 3-29
HOME
ENGINE INSTALLATION 3.5
ASSEMBLY
Engine Prep for Re-installation
NOTE
Install components that were removed from engine as were
necessary for service prior to installing engine in frame.
1. See Figure 3-35. Install rear isolator assembly by install-
ing the two rear fasteners first and then the two forward
fasteners (re-install with new fasteners). Tighten to 25-27
ft-lbs (33.9-36.6 Nm).
2. Install the following items on the engine assembly as
required:
a. Shifter assembly.
b. See Figure 3-36. Center tie bar mount 25-27 ft-lbs
(33.9-36.6 Nm).
c. See Figure 3-37. Swingarm pivot shaft pinch bolt
threaded insert.
d. See Figure 3-38. Aluminum bushings from front
exhaust mount.

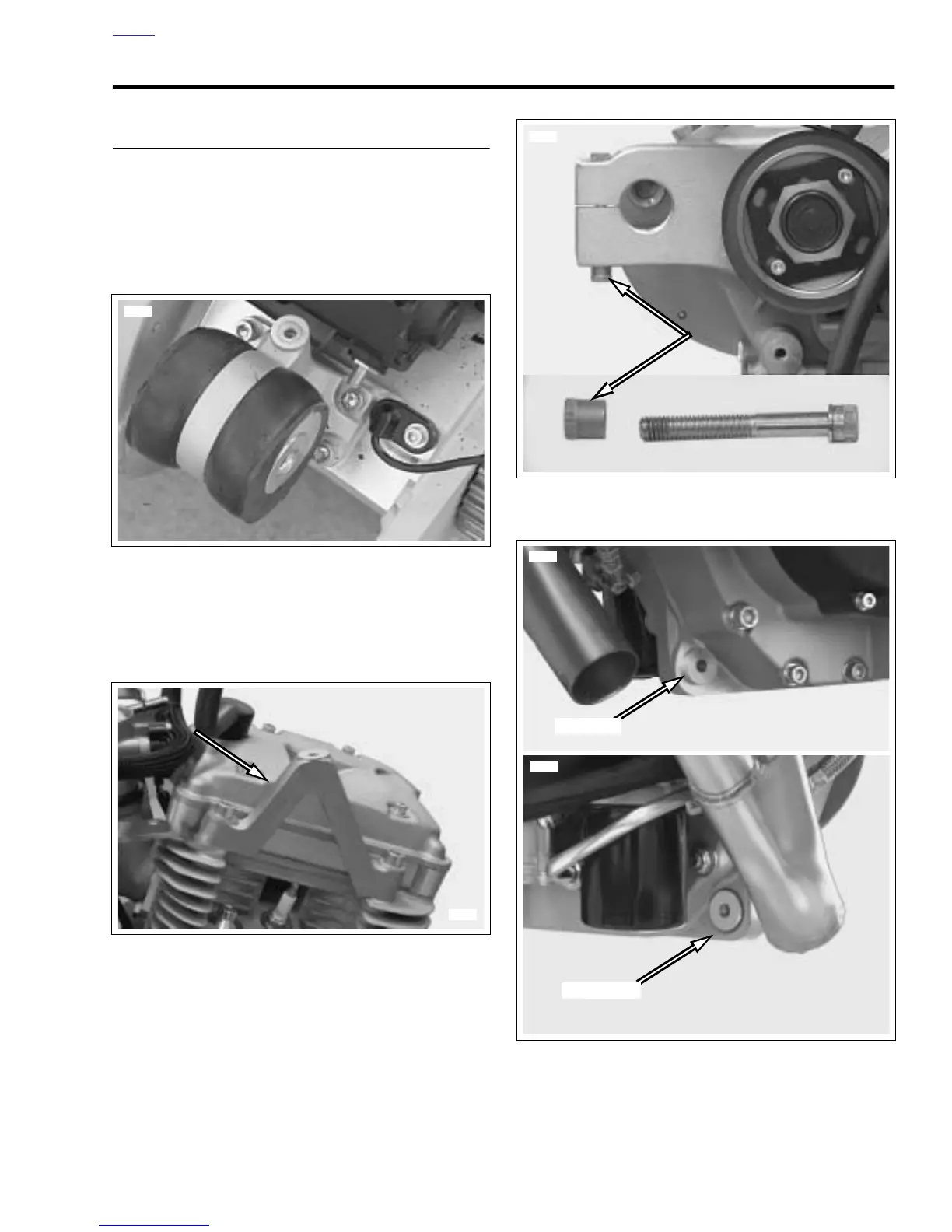

Figure 3-35. Rear Isolator and Mounting Hardware
Figure 3-36. Center Tie Bar Mount
8723
8725
Figure 3-37. Installing Threaded Insert
Figure 3-38. Front Exhaust Mount Bushings (2 piece)
Left Side
Right Side
8718
8727
