2003 Buell XB9S: Drive/Transmission 6-31
HOME
TRANSMISSION DISASSEMBLY 6.8
TRANSMISSION REMOVAL FROM
LEFT CRANKCASE
NOTE
See Figure 6-57. Shifter design allows for one common part
number for all three shifter forks. As the transmission runs,
each shifter fork develops a certain wear pattern with its mat-
ing parts. For this reason, it is important that each shifter fork
be reinstalled in its original location.
1. See Figure 6-55. Remove shifter fork shafts.
NOTE
Carefully tap on alternate sides of the shaft using the pro-
vided slots.
2. See Figure 6-56. Remove shifter drum and shifter forks.
3. Remove mainshaft 2nd gear from mainshaft.

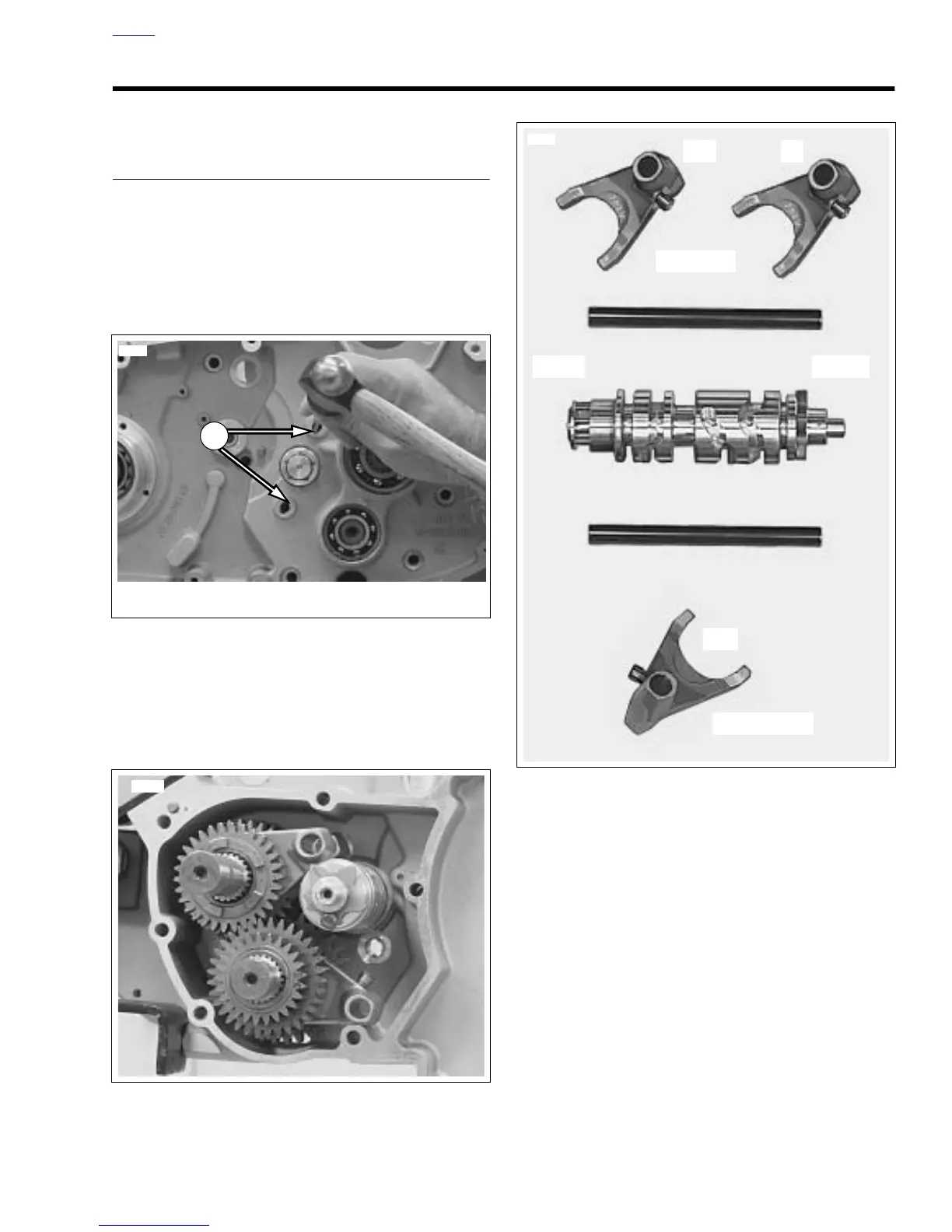

Figure 6-55. Removing Shifter Fork Shafts
Figure 6-56. Transmission Assembly
1. Slots for removing the shifter fork shafts
8624
1
8628a
Figure 6-57. Shifter Forks, Drum and Shafts
8616
Countershaft
Mainshaft
Left Right
3-5 4
1-2
