6-30 2003 Buell XB9S: Drive/Transmission
HOME
16. See Figure 6-52. Remove crankcase bolt set (14 fasten-
ers).
17. See Figure 6-53. Separate crankcase halves.
NOTE
Flywheel assembly slides out of the left main bearing by
hand. No tools are required for this operation.
18. See Figure 6-54. Remove the flywheel assembly from
left crankcase half.

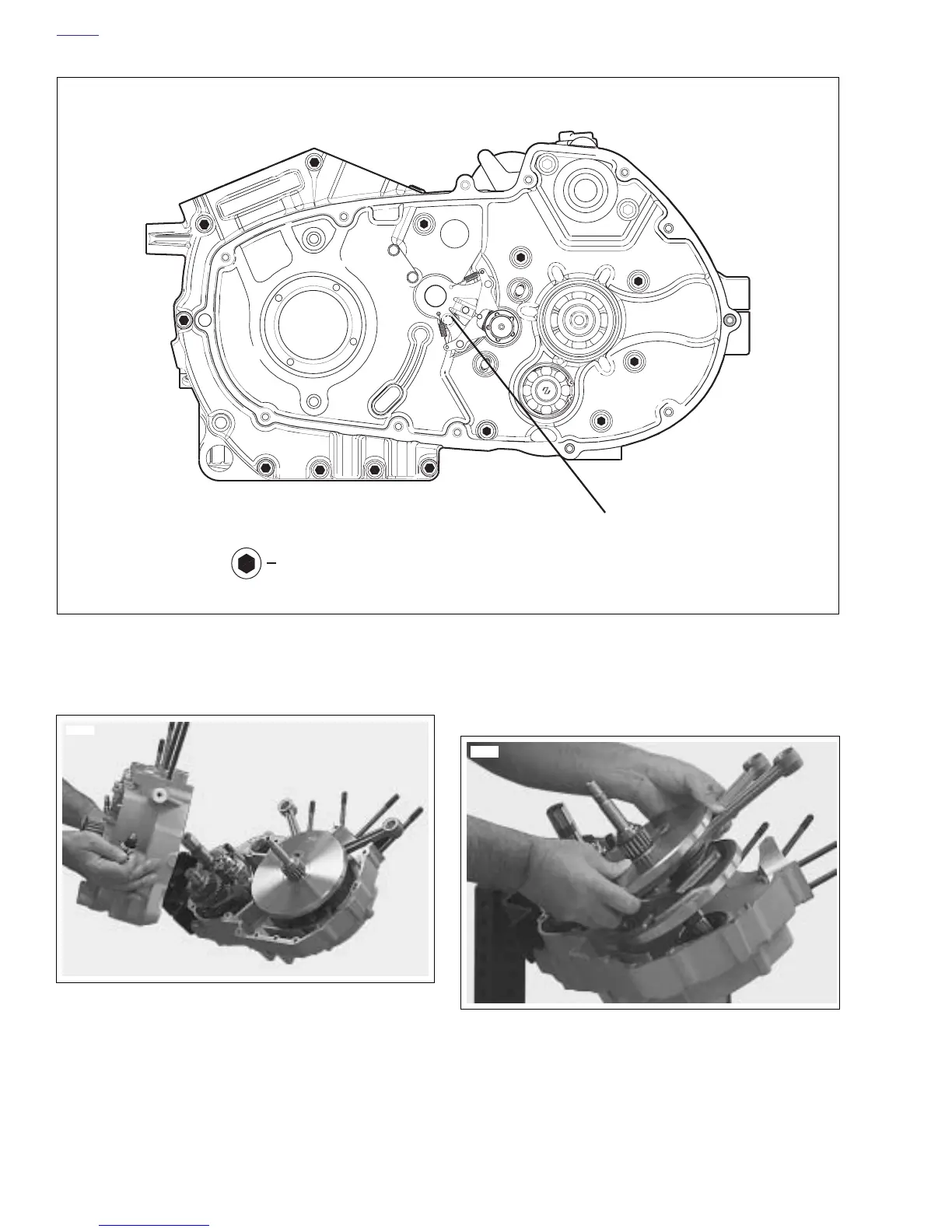

Figure 6-52. Crankcase Fasteners
D
b1016x3x
Indicates Bolt Pattern Location (14 fasteners)
One Behind Shifter Mechanism
Figure 6-53. Separating Crankcase Halves
8621
Figure 6-54. Removing Flywheels from Left Case Half
8636
