2003 Buell XB9S: Drive/Transmission 6-23
HOME
DRIVE BELT REMOVAL
1. Place a scissor jack under jacking point and raise rear
wheel off ground. For location of jacking point see Figure
2-99.
2. Remove right side rider footpeg support bracket. See
2.30 FOOTPEG, HEEL GUARD AND MOUNT.
3. Remove right passenger footpeg support bracket.
4. Remove chin fairing fasteners. See 2.34 CHIN FAIRING.
5. See Figure 1-40. Remove front sprocket cover (5) by
removing fasteners. See 2.31 SPROCKET COVER.
NOTE
Front belt guard (4) will dangle but can not be removed at this
time.

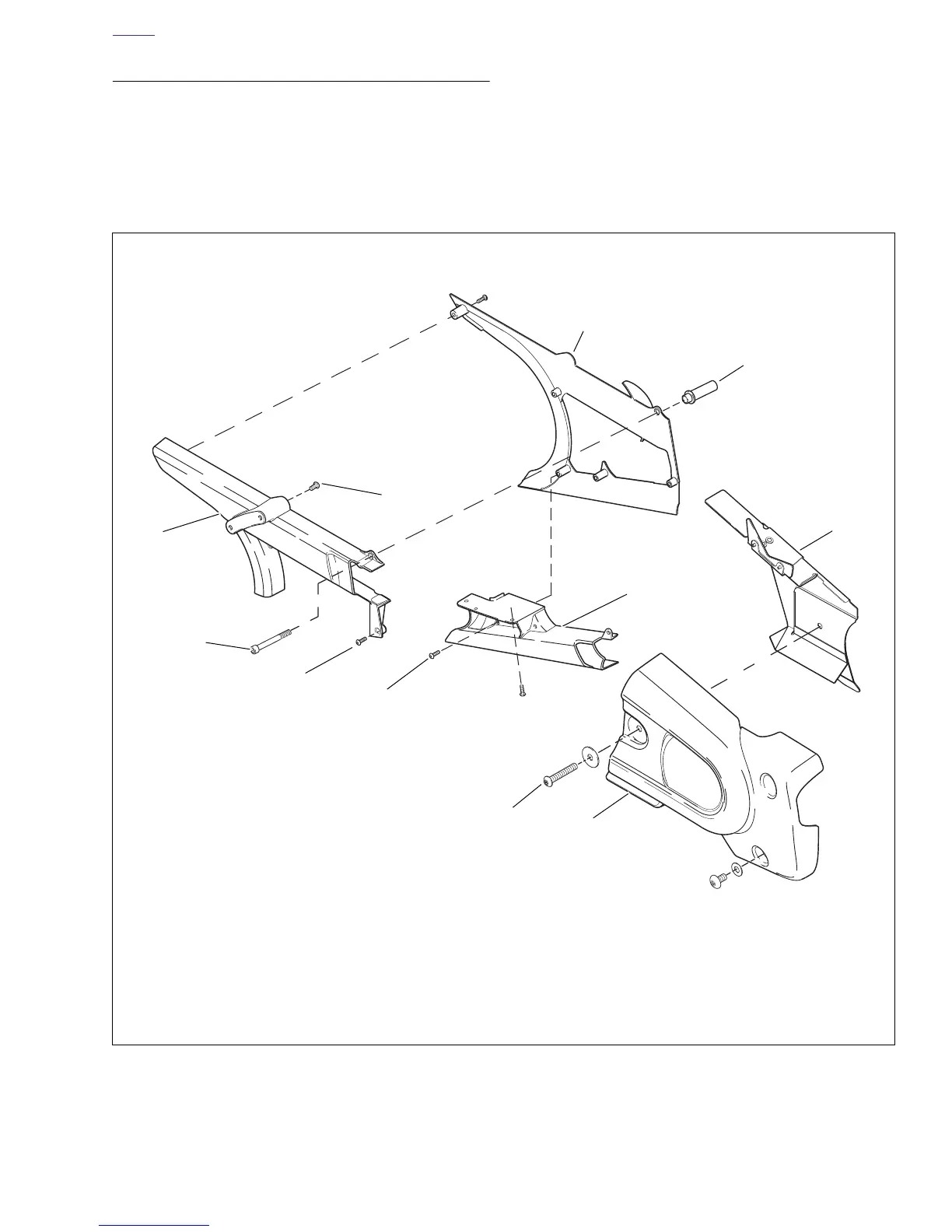

Figure 1-40. Belt Guard Assembly
b1064x2x
1. Inner belt guard
2. Spacer collar
3. Lower belt guard
4. Front belt guard
5. Sprocket cover
6. Sprocket cover fasteners
7. Lower belt guard fasteners
8. Upper belt guard fasteners, short
9. Upper belt guard fasteners, long
10. Upper belt guard
1
10
8
2
4
5
3
6
7
9
8
