TRANSMISSION 6.6
GENERAL
See Figure 6-44. The XB9S transmission is a five-speed con-
stant-mesh type housed in an extension of the crankcase.

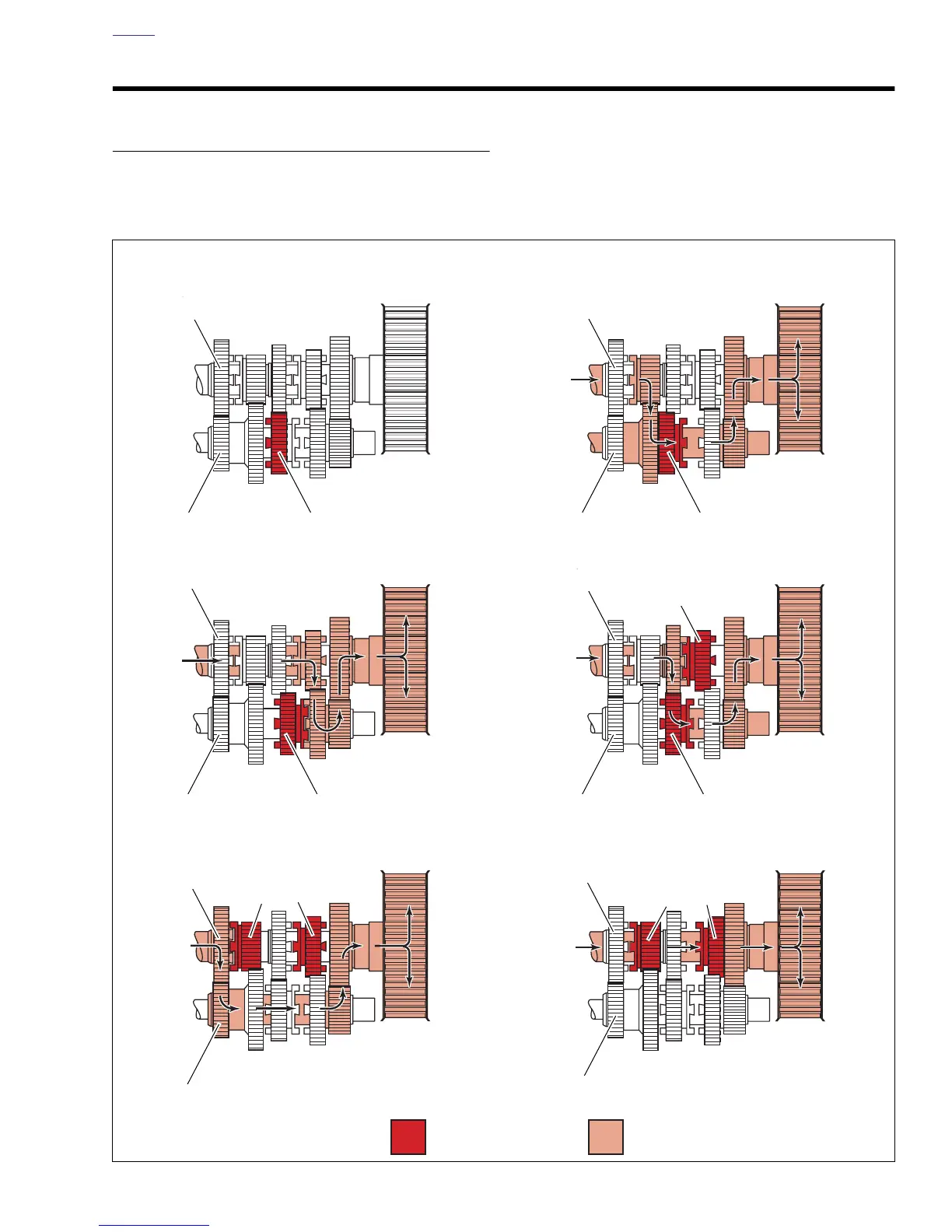

Figure 6-44. Transmission Power Flow
413 25 413 25
41325
41325 413 25
41325
Neutral
– Power flow
– Sliding member
Countershaft
Mainshaft
Out
1st Gear
Countershaft
Mainshaft
In
Countershaft
Mainshaft
Out
2nd Gear
Countershaft
Mainshaft
In
4th Gear
Countershaft
Mainshaft
In Out
5th Gear
Countershaft
Mainshaft
Out
In
b1068x6x
3rd Gear
In
