2003 Buell XB9S: Maintenance 1-27
HOME

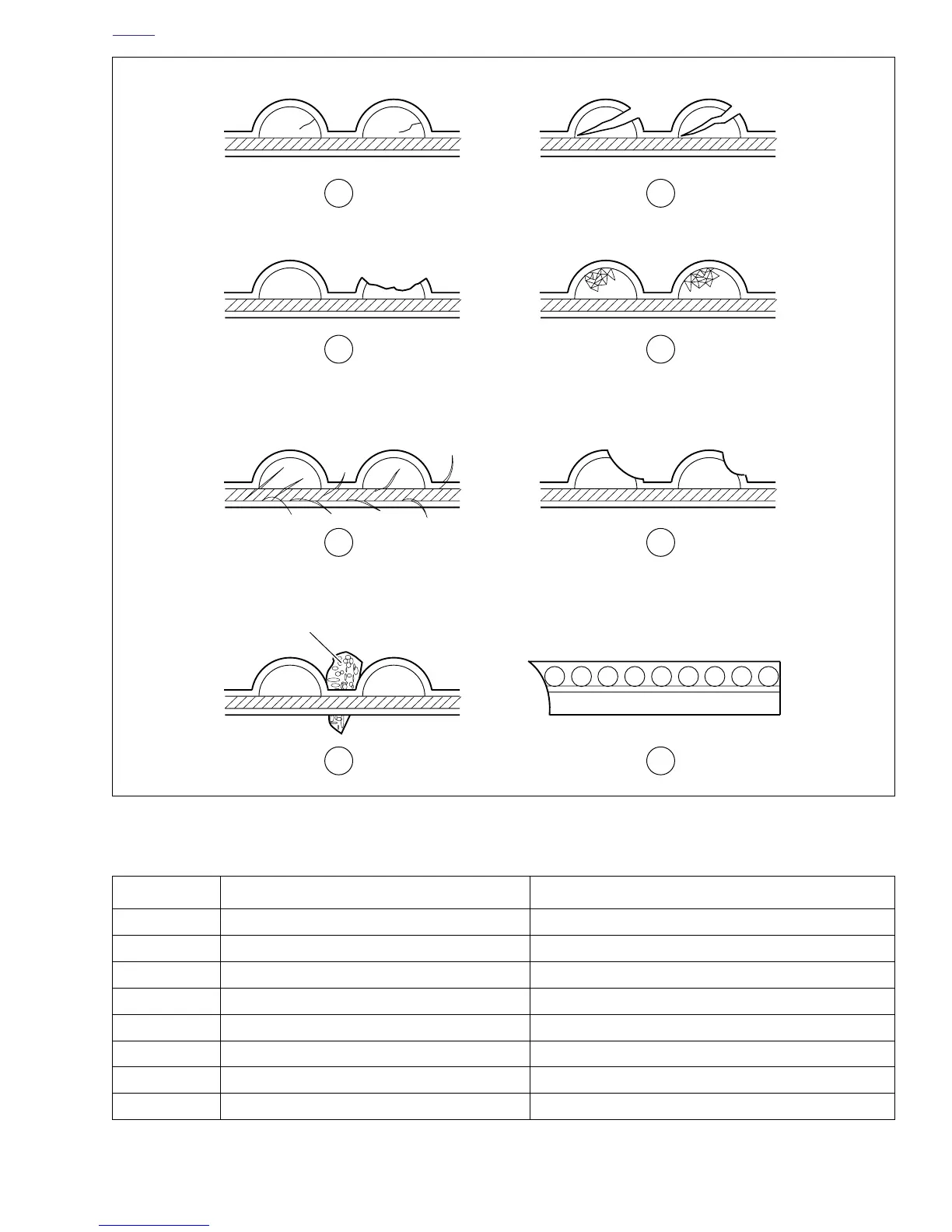

Figure 1-25. Drive Belt Wear Patterns
1 2
3 4
5 6
7 8
Stone
Cross-Section View
b0594x1x
Sprocket
Side of
Belt
Table 1-7. Drive Belt Wear Analysis in Figure 1-25.
PATTERN CONDITION REQUIRED ACTION
1Internal tooth cracks (hairline) OK to run, but monitor condition
2External tooth cracks Replace belt
3Missing teeth Replace belt
4 Chipping (not serious) OK to run, but monitor condition
5 Fuzzy edge cord OK to run, but monitor condition
6 Hook wear Replace belt
7Stone damage Replace belt if damage is on the edge
8Bevel wear (outboard edge only) OK to run, but monitor condition
