1-30 2003 Buell XB9S: Maintenance
HOME
ADJUSTMENT
NOTE
If vertical free play cannot be set within the limits specified,
then primary chain and/or chain adjuster are worn beyond
adjustment limits. Replace parts as necessary. See 6.2 PRI-
MARY CHAIN.
1. See Figure 1-28. Loosen locknut (1).
2. Turn adjusting fastener (2):
a. Clockwise (inward) to reduce free play.
b. Counterclockwise (outward) to increase free play.
3. Tighten locknut (1) to 20-25 ft-lbs (27-34 Nm).

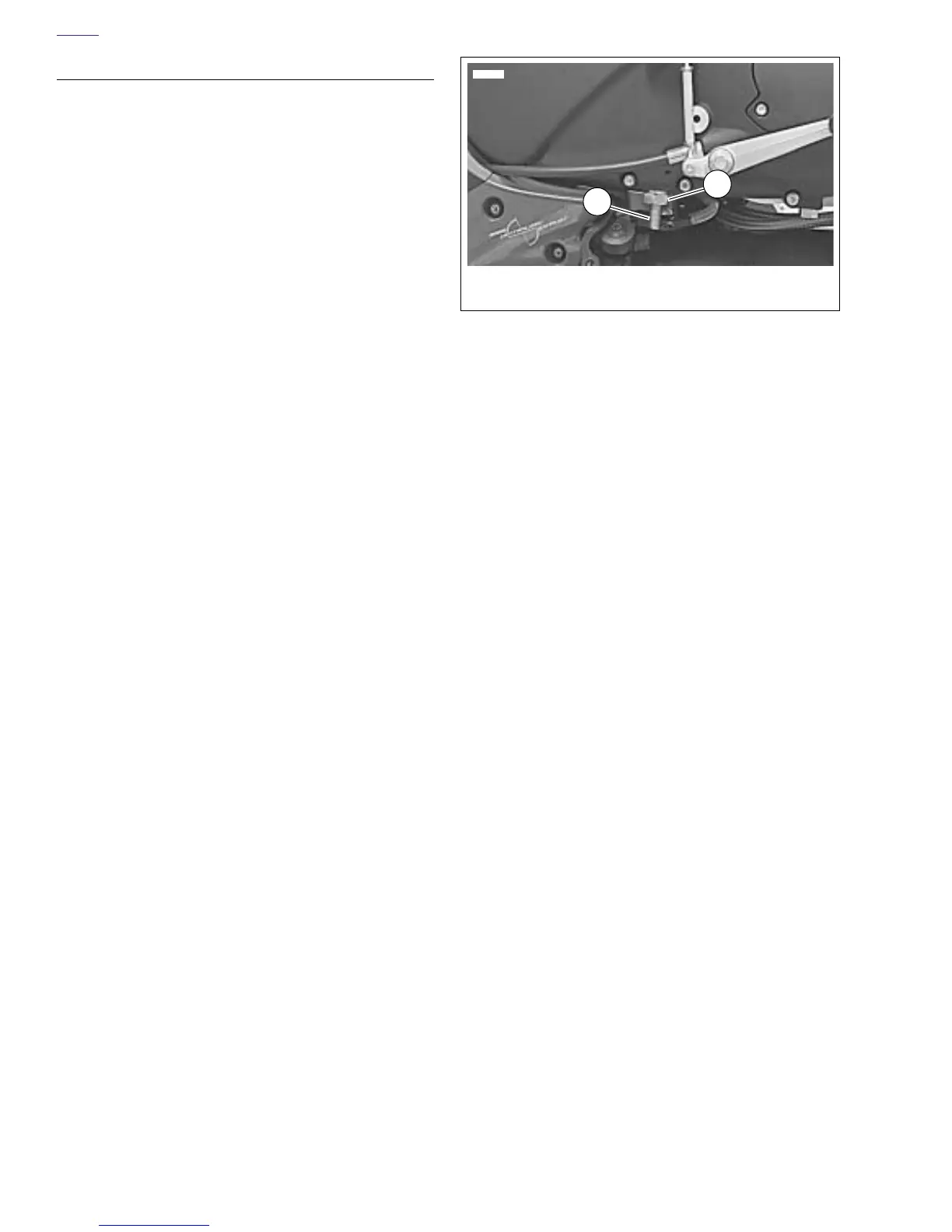

Figure 1-28. Chain Tension Adjusting Fastener
8806a
1. Locknut
2. Adjusting screw
1
2
