Buell 2003XB9S - Page 92

1-42 2003 Buell XB9S: Maintenance
HOME
ADJUST TIMING
1. See Figure 1-44. Remove timing plate cover.
a. Drill rivets holding the timing plate cover.
b. Using a hook, remove timing plate cover.
2. See Figure 1-46. If timing is advanced (mark appears on
left side of window) rotate timing plate counterclockwise.
3. Check timing. See CHECKING STATIC TIMING.
4. See Figure 1-47. If timing is retarded (mark appears on
right side of window) rotate timing plate clockwise.
5. Recheck timing.

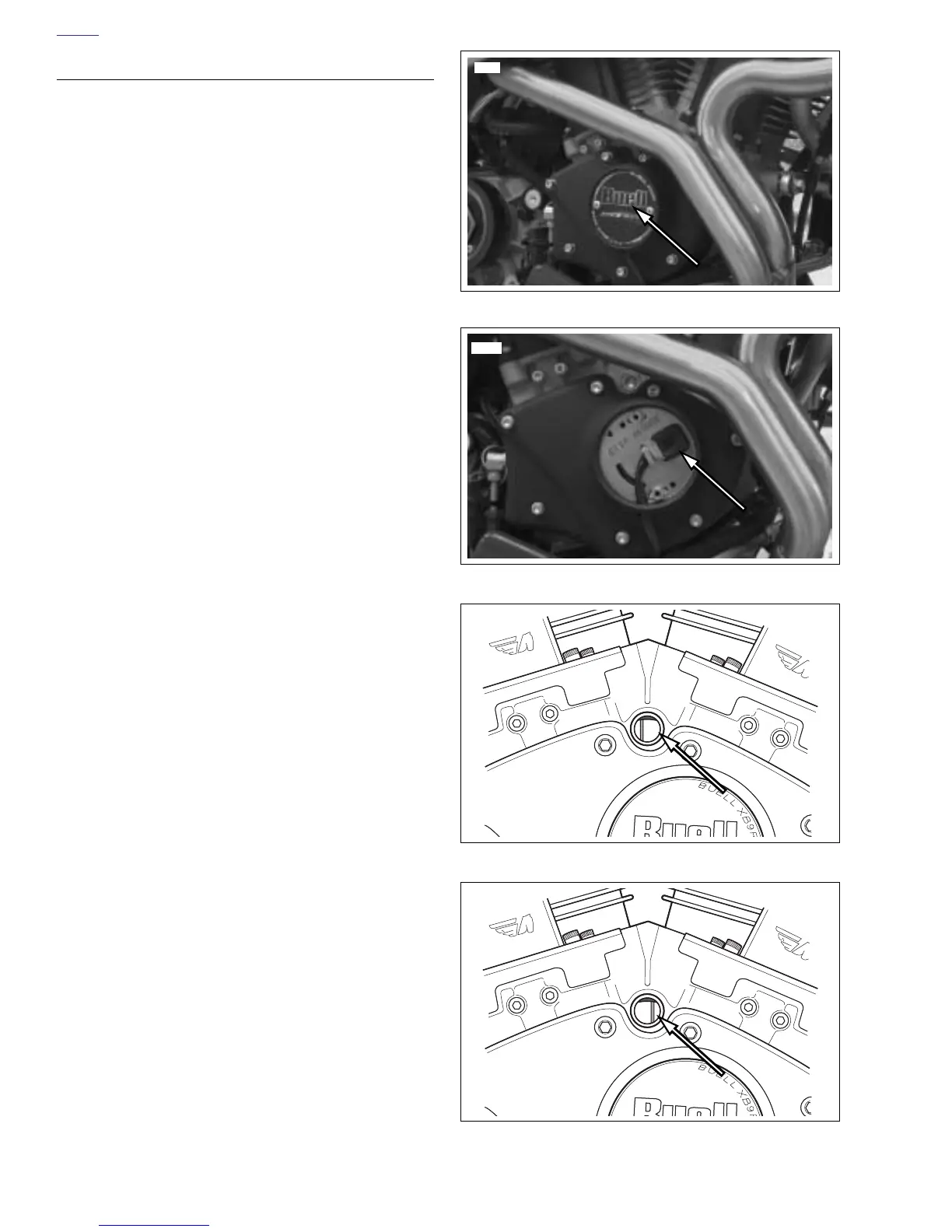

Figure 1-44. Timer Cover
Figure 1-45. Cam Position Sensor
Figure 1-46. Advanced Timing
Figure 1-47. Retard Timing
8363
8391
b0964x1x
b0963x1x
