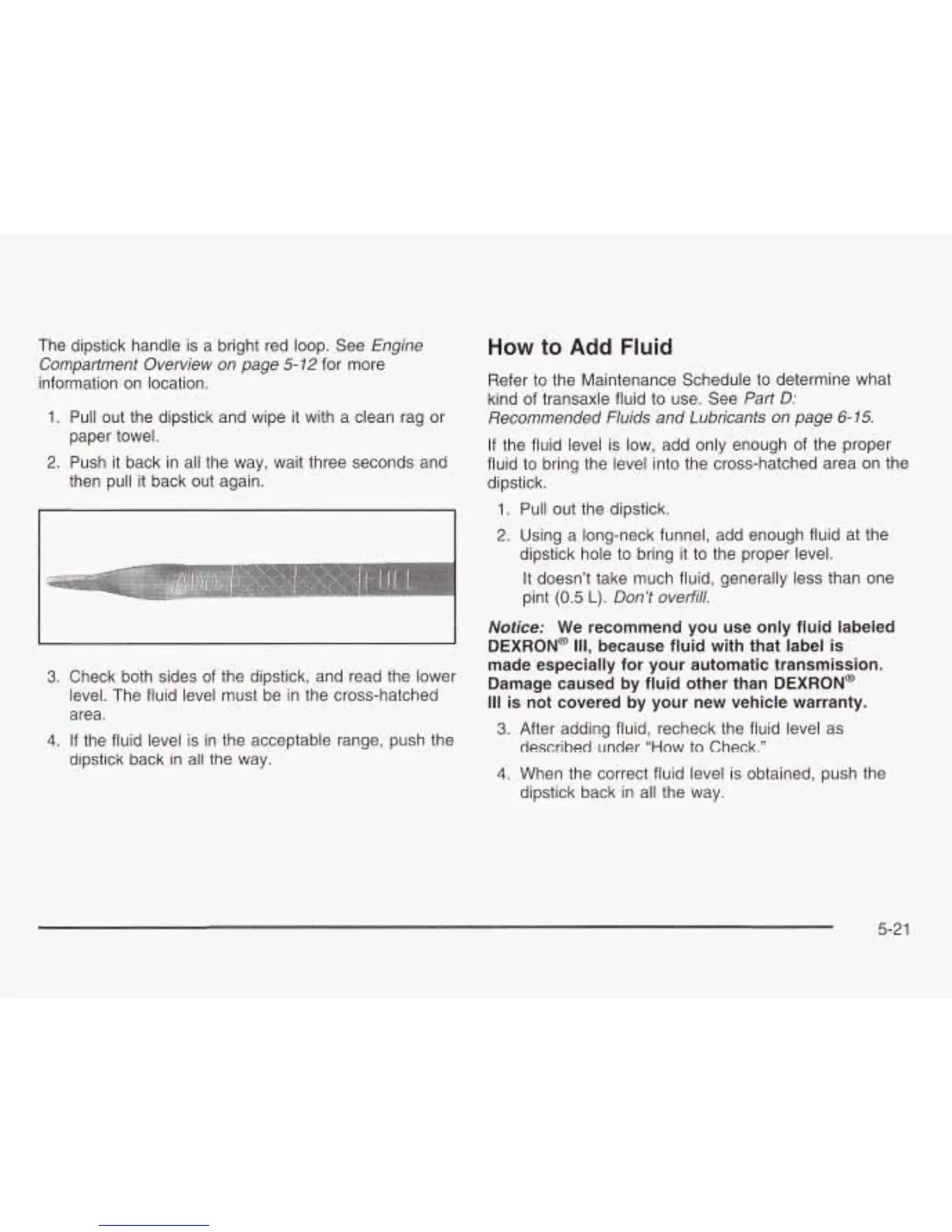

The dipstick handle is a bright red loop. See
Engine
Compartment Overview on page
5-12
for more
information on location.
1.
Pull out the dipstick and wipe it with a clean rag or
paper towel.
2.
Push
it
back in all the way, wait three seconds and
then pull it back out again.
3.
Check both sides of the dipstick, and read the lower
level. The fluid level must be in the cross-hatched
area.
4.
If the fluid level
is
in the acceptable range, push the
dipstick back in all the way.
How
to
Add
Fluid
Refer to the Maintenance Schedule to determine what
kind of transaxle fluid to use. See
Part
D:
Recommended Fluids and Lubricants on page
6-15.
If
the fluid level
is
low, add only enough
of
the proper
fluid to bring the level into the cross-hatched area on the
dipstick.
1.
Pull out the dipstick.
2.
Using a long-neck funnel, add enough fluid at the
dipstick hole to bring it to the proper level.
It
doesn’t take much fluid, generally less than one
pint
(0.5
L).
Don’t ovedill.
Nofice:
tiie recommend you use oniy iiuid iabeieci
DEXRON@
111,
because fluid with that label is
made especially for your automatic transmission.
Damage caused by fluid other than DEXRON@
111
is not covered by your new vehicle warranty.
3.
After adding fluid, recheck the fluid level as
4.
When the correct fluid level is obtained, push the
described under “How
to
Check.”
dipstick back in all the way.
5-2
