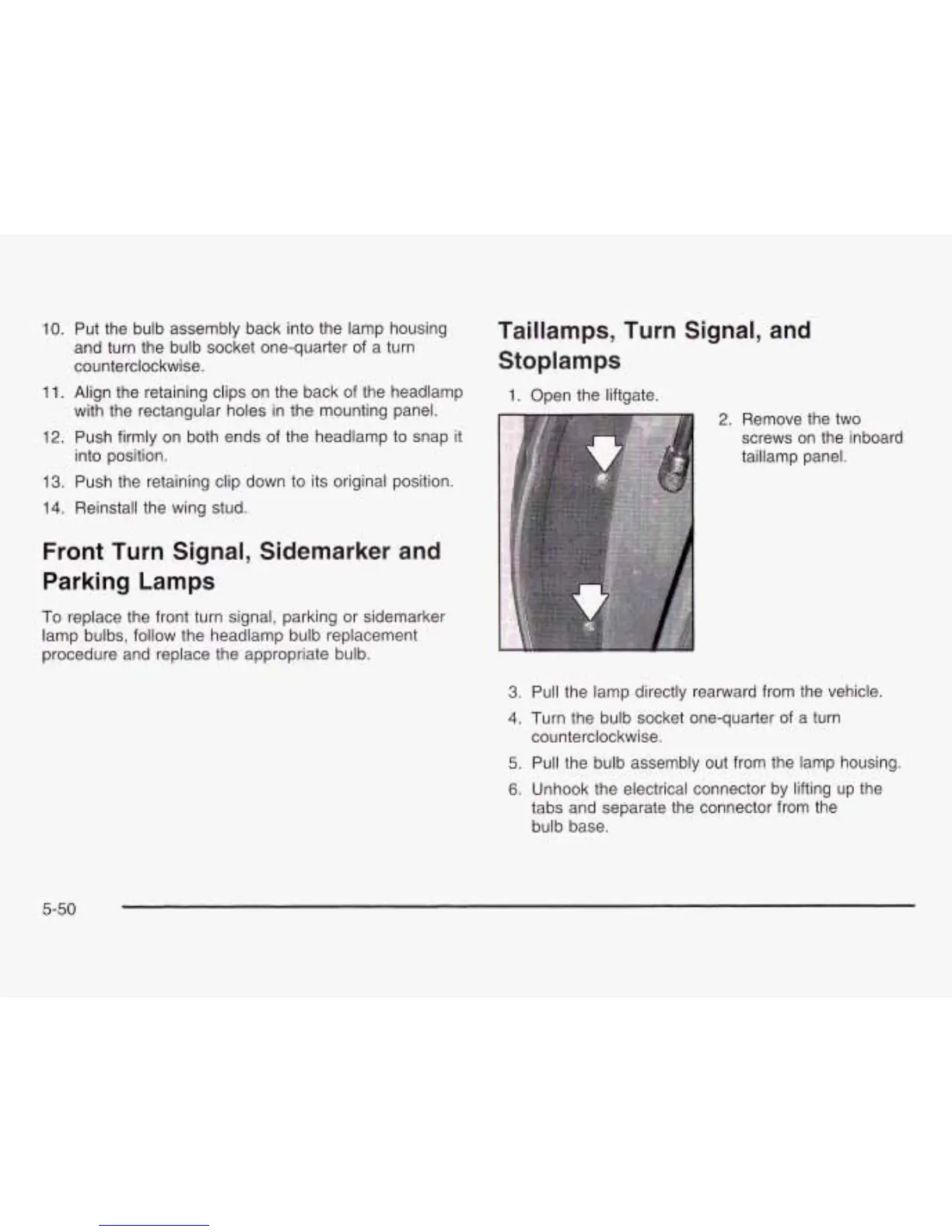

10.
Put the bulb assembly back into the lamp housing
and turn the bulb socket one-quarter of a turn
counterclockwise.
11.
Align the retaining clips on the back of the headlamp
with the rectangular holes in the mounting panel.
12.
Push firmly on both ends of the headlamp to snap it
into position.
13.
Push the retaining clip down to its original position.
14.
Reinstall the wing stud.
Front Turn Signal, Sidemarker and
Parking Lamps
Taillamps, Turn Signal, and
Stoplamps
1.
Open the liftgate.
2.
Remove the two
screws on the inboard
taillamp panel.
To
replace the front turn signal, parking or sidemarker
lamp bulbs, follow the headlamp bulb replacement
procedure and replace the appropriate bulb.
3.
Pull the lamp directly rearward from the vehicle.
4.
Turn the bulb socket one-quarter of
a
turn
5.
Pull the bulb assembly out from the lamp housing.
6.
Unhook the electrical connector by lifting up the
counterclockwise.
tabs and separate the connector from the
bulb base.
5-50
